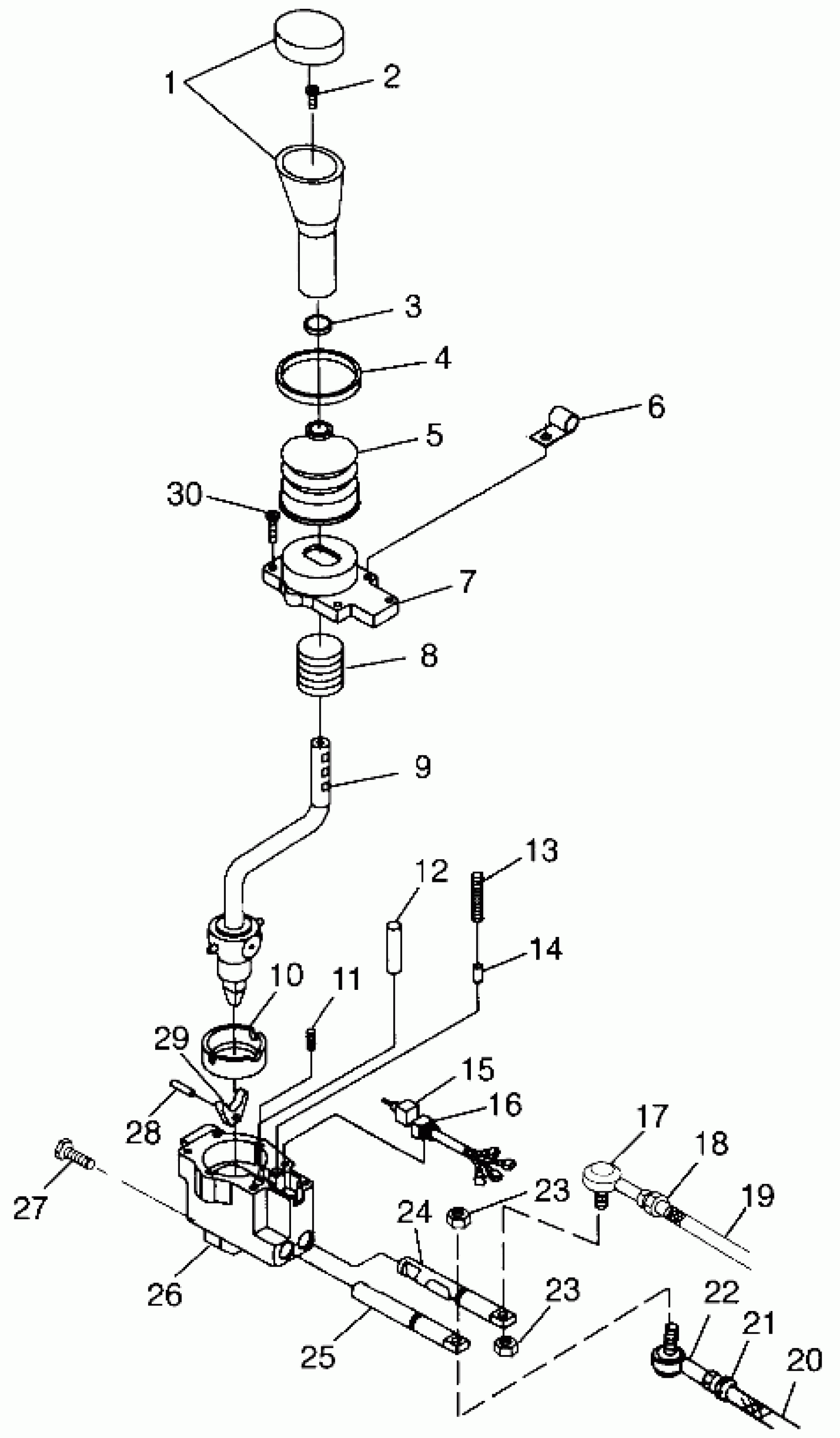

Polaris XPRESS 300 - W97CA28C GEAR SELECTOR (300) XPRESS 300 W97CA28C (4939603960C013) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR,300 (Incl. NO TAG-16,NO TAG-NO TAG,NO TAG-NO TAG)

1341229

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR

3233368

$74.79

6

CLAMP,CABLE,NYLON

3233466

Unavailable

7

COVER,GEAR SELECTOR

3233213

Unavailable

8

SPRING,HOLDING

3233158

Unavailable

9

HANDLE,SUBASM,GS GEN IV

3233456

Unavailable

10

CUP,BEARING

3233063

$15.99

11

SPRING,CENTERING

3233083

Unavailable

12

PIN, STOP

3233062

Unavailable

13

SPRING,DETENT

3233069

Unavailable

14

BULLET,DETENT

3233060

$64.99

15

SWITCH,GEAR SELECTOR

3233215

Unavailable

16

STRAP, WIRE

3233090

$2.86

17

ROD END,LH,6MM.

7061013

$65.99

18

NUT(10)

7546702

$1.49

19

ROD,SHIFT-LINK,LOW

5020749

Unavailable

20

ROD,SHIFT-LINK,HIGH

5020748

Unavailable

21

NUT(10)

7546701

$3.99

22

ROD END,RH,6MM.

7061014

$65.99

23

NUT(10) Substituted by 7546703

7546707

Unavailable

23

NUT(10) Substituted by 7546703

7546707

Unavailable

24

SLIDE ASM,HIGH/REV

3233217

Unavailable

25

SLIDE ASM,LOW

3233218

Unavailable

26

BODY,GEARSELECT

3233457

Unavailable

27

SCREW(10)

7515181

$2.39

28

PIN,INTERLOCK

3233070

Unavailable

29

INTERLOCK,BUTTERFLY

3233084

Unavailable

30

SCREW Substituted by 3233498

3233085

Unavailable
