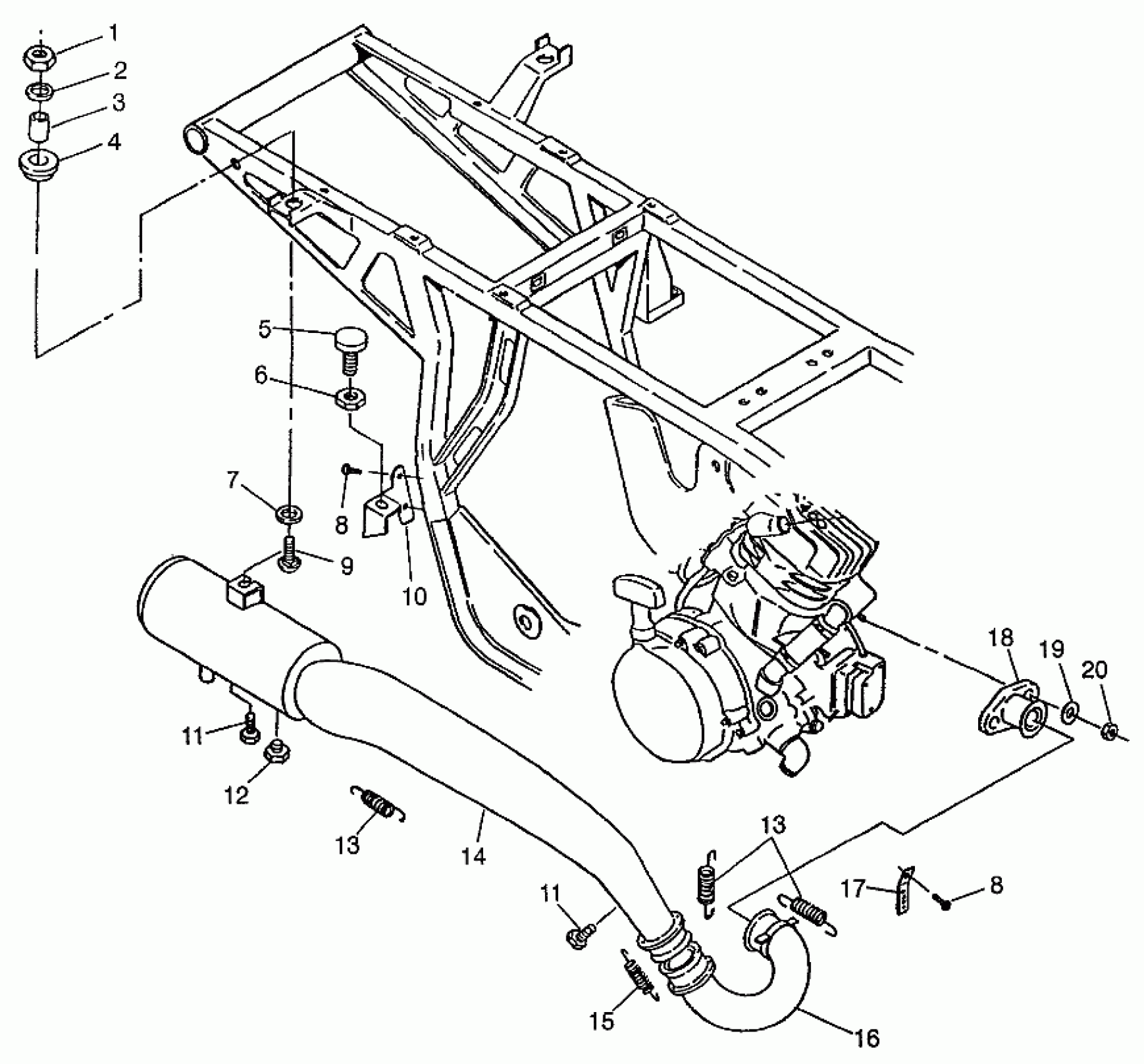

Polaris XPRESS 300 - W97CA28C EXHAUST SYSTEM XPRESS 300 W97CA28C and XPRESS 400L W97CA38C (4939603960B002) Diagram

#

Description
Price

1

NUT, NYLOK(10)

7542327

$4.79

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

MOUNT,TORQUE-STOP

3110064

Unavailable

6

NUT HEX(10)

7542301

$1.59

7

WASHER,RUBBER

5410436

$1.59

8

BOLT(10)

7512232

$1.49

8

BOLT(10)

7512232

$1.49

9

BOLT(10)

7515316

$2.39

10

BRKT,MFLR.SUPPORT,BLK

5242081-067

Unavailable

11

BOLT(10)

7512666

$2.39

11

BOLT(10)

7512666

$2.39

12

PLUG, CLEANOUT

7052083

$15.87

13

SPRING-EXHAUST(10)

7042029

$4.84

13

SPRING-EXHAUST(10)

7042029

$4.84

14

EXHAUST WELD,BLK.

1260702-029

Unavailable

15

SPRING, EXHAUST(10)

7042031

$5.65

16

HEADPIPE,BLK (400)

1260830-029

Unavailable

16

HEADPIPE WELD. (300)

1260658-029

Unavailable

17

BRKT,FENDER/MUFFLER Substituted by 5222665 (400)

5222665-067

Unavailable

18

MANIFOLD,BLK

1260846-029

Unavailable

19

Washer, Spring (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

20

Nut (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable
