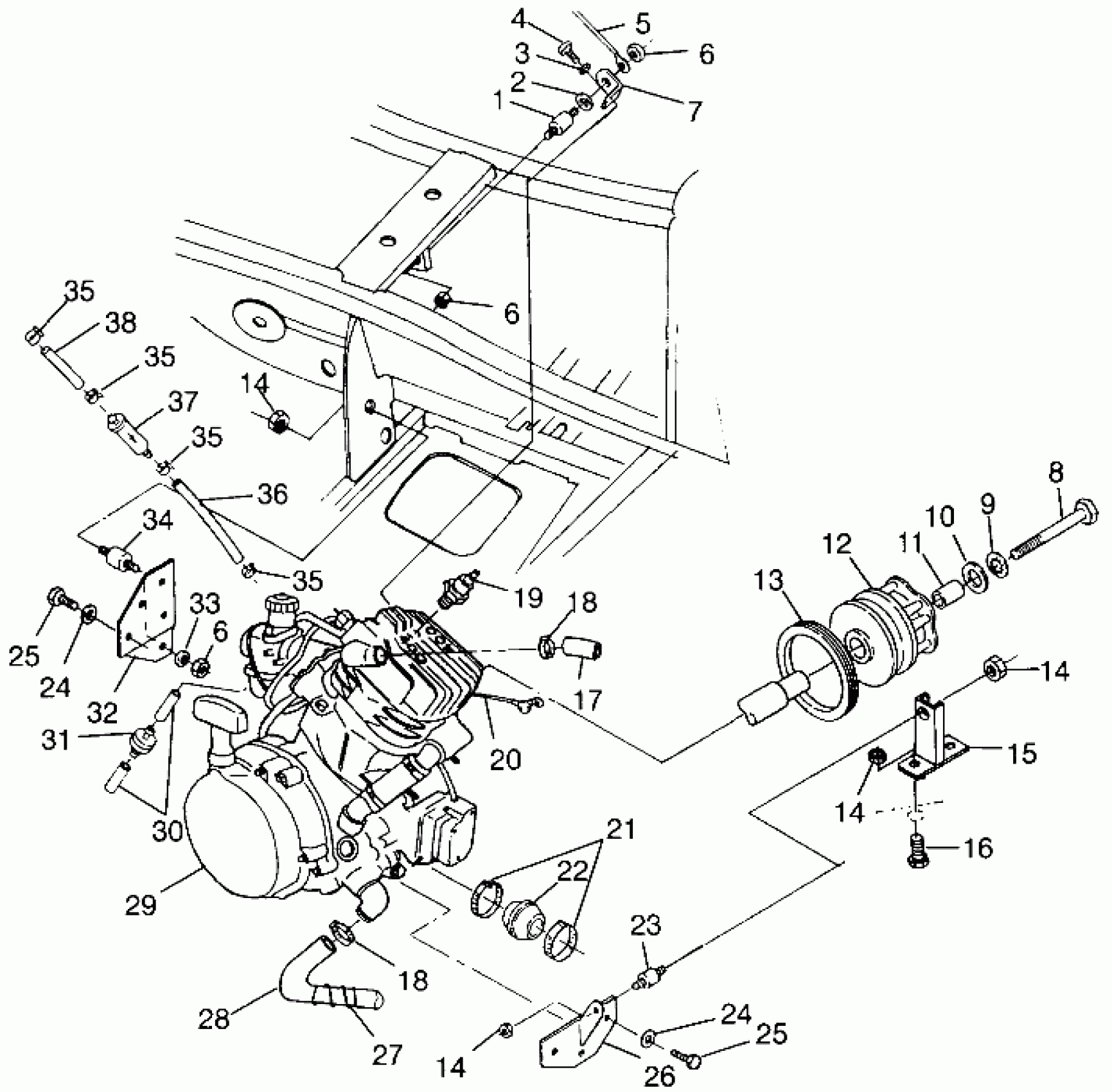

Polaris XPRESS 300 - W97CA28C ENGINE MOUNTING (400L) XPRESS 400L W97CA38C (4939603960A012) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

LOCK WASHER(10)

7552901

$1.19

4

BOLT(10)

7515321

Unavailable

5

CABLE,GND-ENGINE

4010132

Unavailable

6

NUT LOCK(10)

7542411

$3.17

6

NUT LOCK(10)

7542411

$3.17

6

NUT LOCK(10)

7542411

$3.17

7

MOUNT,ENG,TOP

5241801-067

Unavailable

8

BOLT(10)

7512566

$33.24

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

11

BUSHING-.437 X.770 X.50

5430261

$7.14

12

Asm., Drive Clutch, ATV-06 (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

13

Seal, Cover Case (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

14

NUT LOCK(10)

7542403

Unavailable

14

NUT LOCK(10)

7542403

Unavailable

14

NUT LOCK(10)

7542403

Unavailable

14

NUT LOCK(10)

7542403

Unavailable

15

MOUNT,ENG,LOW,BLK

1040532-067

Unavailable

16

BOLT(10)

7512457

$3.97

17

HOSE,ENG,UPPER

5410570

$48.56

18

CLAMP,HOSE,(10)

7080614

$7.14

18

CLAMP,HOSE,(10)

7080614

$7.14

19

SPARKPLUG (10)

3070156

$3.97

20

CABLE,SOL/START,DBLBOOT

4010129

Unavailable

21

CLAMP, NARROW BAND(10)

7080511

$4.76

22

BOOT,CLUTCH INTAKE(400)

5410883

$7.94

23

MOUNT,MOTOR

3110026

$40.46

24

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

24

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

25

SCREW(10)

7512490

$3.97

25

SCREW(10)

7512490

$3.97

26

MOUNT,ENGINE

1040231-067

Unavailable

27

SPRING,HOSE RETAINER

7041079

$4.92

28

HOSE,LOWER ENGINE

5411173

$97.13

29

ENG.(S.B.)EC38PL-SB [No Longer Available] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization re

3084718

Unavailable

30

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

31

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

32

MOUNT, REAR MOTOR, BLK.

5240542-067

$13.27

33

WASHER(10)

7555806

$0.79

34

MOUNT,RUBBER,ENG.

3110042

Unavailable

35

HOSE CLAMP, RED (Red)

7080003

$1.19

35

HOSE CLAMP, RED (Red)

7080003

$1.19

35

HOSE CLAMP, RED (Red)

7080003

$1.19

35

HOSE CLAMP, RED (Red)

7080003

$1.19

36

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

37

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46

38

HOSE,FUEL,1/4 IN.

5411272

Unavailable
