Description

Price

1

HARNESS-MAIN WIRE (300)

2460554

Unavailable

1

HARNESS,MAIN WIRE (400)

2460564

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

TAIL LIGHT ASM. (Incl. 4-9)

2432034

$55.99

4

LENS,TAILLIGHT

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

BULB,TAILLIGHT

4030043

$6.46

7

GASKET,TAILLIGHT

4032045

$4.03

8

BACKING,TAILLIGHT

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

NUT(10)

7541925

$1.49

10

NUT(10)

7541925

$1.49

11

WASHER(10)

7571602

$4.79

11

WASHER(10)

7571602

$4.79

12

SCREW(10)

7512027

$1.49

13

PAD-BATTERY

5810290

$7.27

14

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

15

BOLT,BATT,KIT(SHORT) (Short)

2200361

$3.99

16

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

17

HOOK-BATT.H/D(10)

7010032

$1.59

18

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

19

TUBE,BATTERY VENT

5432077

Unavailable

20

Battery

4140006

$99.99

21

COVER,BATTERY

5431769

$14.39

22

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

23

CABLE,SOLENOID/STARTER

4010064

Unavailable

24

SCREW(10)

7512007

$3.99

25

RIVET,(50)

7621336

$1.59

25

RIVET,(50)

7621336

$1.59

26

CLAMP,BLK,5/16 PLASTIC(10) (400)

7080524

Unavailable

27

CLAMP, POLY (400)

7080303

Unavailable

28

PIGTAIL, POWER (400)

2460442

$12.39

29

POWER ASM,12V (400)

2410022

Unavailable

30

RECTIFIER, VOLTAGE (300)

4060087

Unavailable

30

RECTIFIER,LR-37 (400)

4060133

Unavailable

31

HEATSINK RECT. (400)

5131036

Unavailable

32

SCREW,(10) (400)

7512024

$4.79

32

SCREW,(10) (400)

7512024

$4.79

33

LIMITER,REV.SPEED (300)

4060085

Unavailable

33

LIMITER,RPM,350HZ. Substituted by 4060203 (400)

4060112

Unavailable

34

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

35

BRACKET-CDI (400)

5241416

$5.75

36

SCREW(10) (300)

7512076

$1.49

36

BOLT(10) (400)

7511864

$4.79

37

BOARD,TERMINAL,150 ALT,ATV

4040063

Unavailable

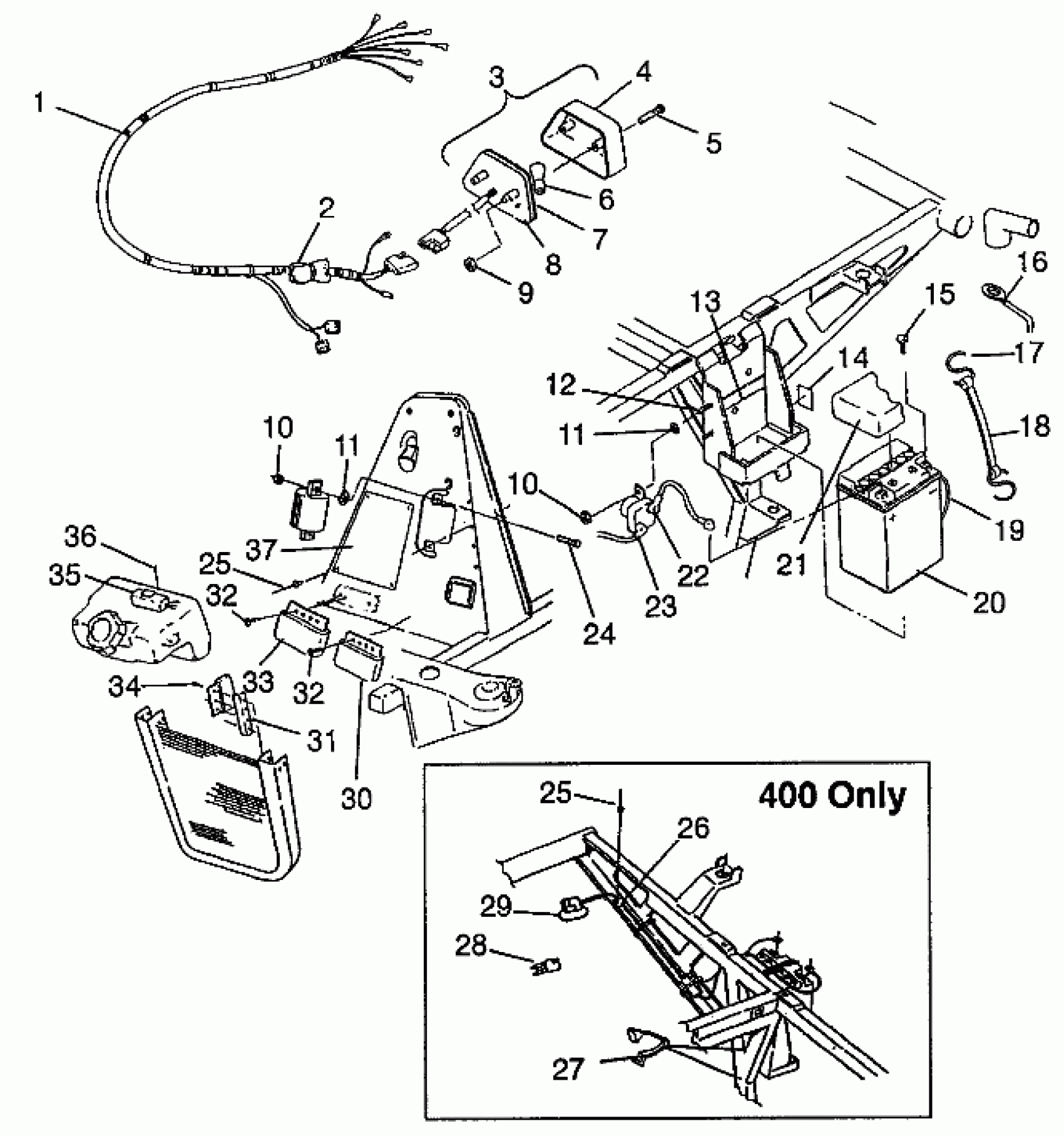

Polaris XPRESS 300 - W97CA28C ELECTRICAL/TAILLIGHT XPRESS 300 W97CA28C and XPRESS 400L W97CA38C (4939603960C012) Diagram

HARNESS-MAIN WIRE (300)

HARNESS,MAIN WIRE (400)

KIT,CKT.BRKR,20 AMP

TAIL LIGHT ASM. (Incl. 4-9)

LENS,TAILLIGHT

Screw, Taillight

BULB,TAILLIGHT

GASKET,TAILLIGHT

BACKING,TAILLIGHT

SPEED NUT-WASHER, HEAD-1/4

NUT(10)

NUT(10)

WASHER(10)

WASHER(10)

SCREW(10)

PAD-BATTERY

DECAL, BATTERY [No Longer Available]

BOLT,BATT,KIT(SHORT) (Short)

CABLE,BATT/ENG.,BLK.

HOOK-BATT.H/D(10)

STRAP,BATTERY HOLDDOWN

TUBE,BATTERY VENT

Battery

COVER,BATTERY

CABLE,BATT/SOLENOID,RED

CABLE,SOLENOID/STARTER

SCREW(10)

RIVET,(50)

RIVET,(50)

CLAMP,BLK,5/16 PLASTIC(10) (400)

CLAMP, POLY (400)

PIGTAIL, POWER (400)

POWER ASM,12V (400)

RECTIFIER, VOLTAGE (300)

RECTIFIER,LR-37 (400)

HEATSINK RECT. (400)

SCREW,(10) (400)

SCREW,(10) (400)

LIMITER,REV.SPEED (300)

LIMITER,RPM,350HZ. Substituted by 4060203 (400)

SCR-#10-24X3/4,PN/TR RD-TORX-Y

BRACKET-CDI (400)

SCREW(10) (300)

BOLT(10) (400)

BOARD,TERMINAL,150 ALT,ATV
