Partiron

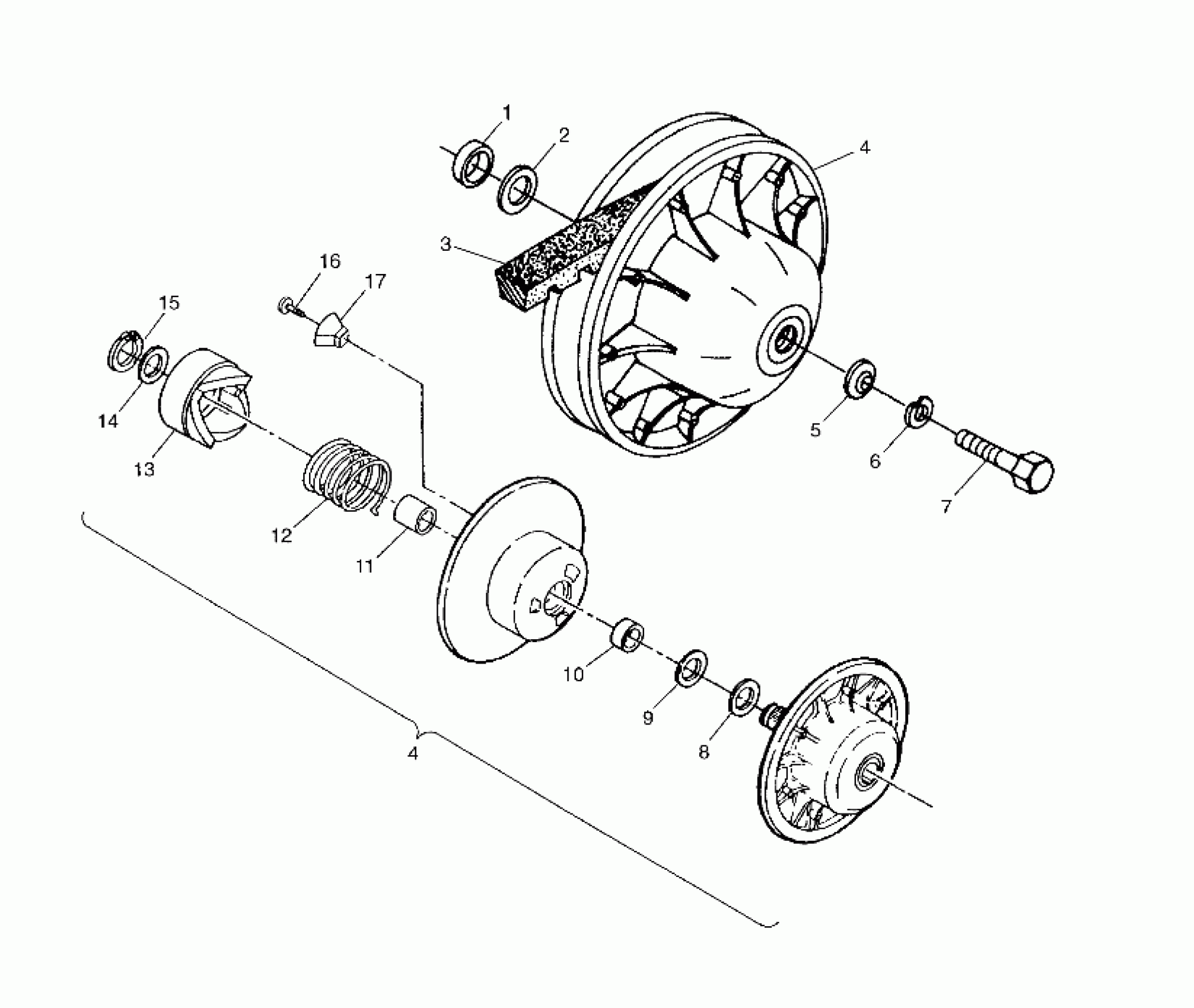

Polaris XPRESS 300 - W97CA28C DRIVEN CLUTCH XPRESS 300 W97CA28C and XPRESS 400L W97CA38C (4939603960C006) Diagram

#

Description
Price

1

BUSHING (300)

7555990

$1.59

1

SPACER,DRIVEN CLUTCH (400)

5010379

Unavailable

2

BUSHING(10) (400)

7556401

$4.99

3

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

4

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 8-17)

1322182

$614.99

4

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 8-17)

1322182

$614.99

5

WASHER, DOMED(10)

5220646

$2.39

6

LOCK WASHER(10)

7552901

$1.49

7

BOLT(10)

7515382

$2.39

8

WASHER(10) (.020 Spacer)

7555898

Unavailable

9

WASHER(10)

7556804

Unavailable

10

BUSHING, DRIVEN

3576504

$23.99

11

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

SPRING,CLUTCH,(RED)

7041198

$52.60

13

RAMP,STA.MACH,COMP MOD,HVY RET Substituted by 5132344

5131447

$77.21

14

SPACER(10)

5210752

$1.59

15

RING,RET.

7710448

$3.19

16

BOLT(10)

7511854

$1.49

17

BUTTON,RAMP

5430766

Unavailable
