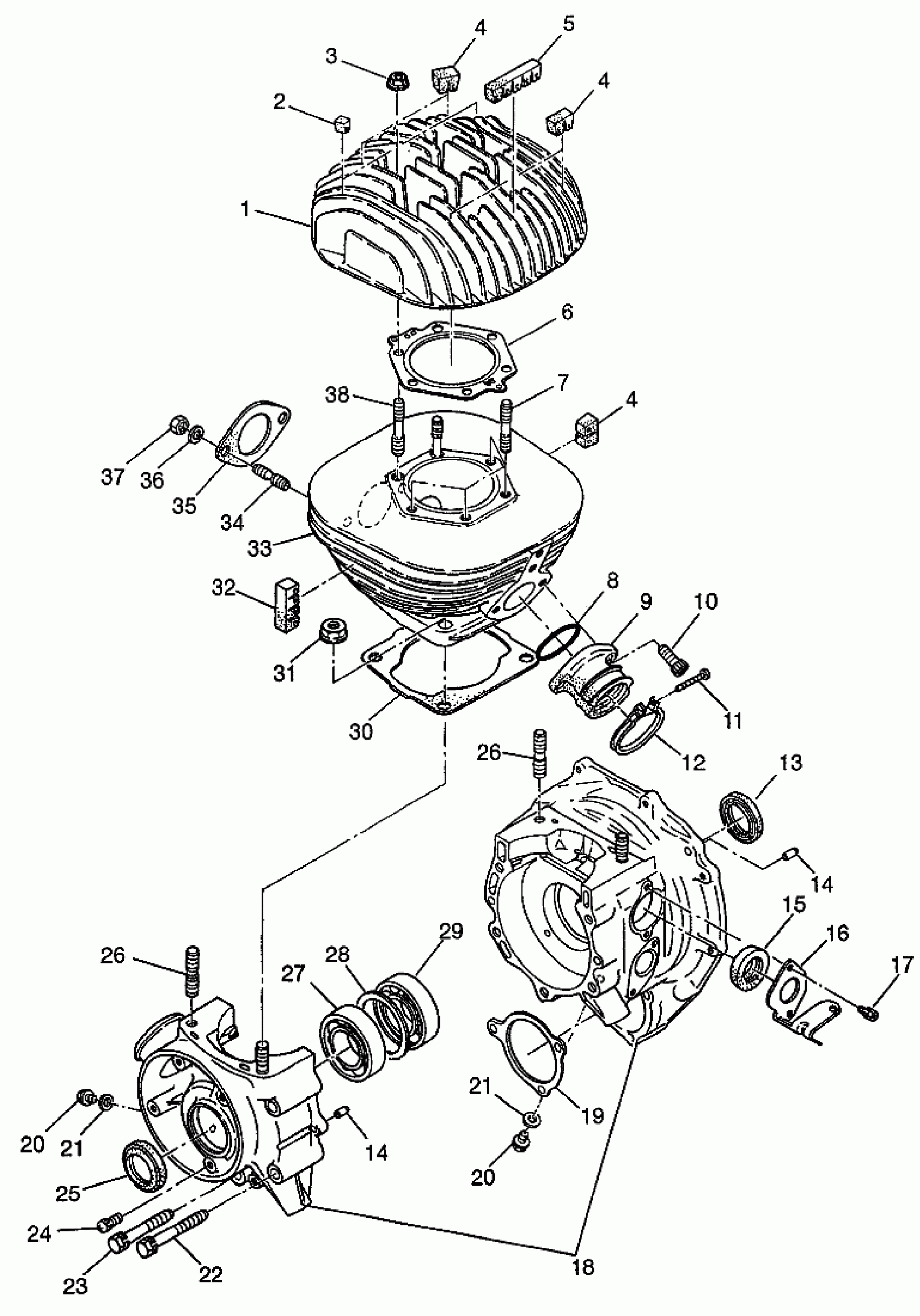

Polaris XPRESS 300 - W97CA28C CRANKCASE and CYLINDER (300) XPRESS 300 W97CA28C (4939603960D003) Diagram

#

Description
Price

1

HEAD, CYLINDER

3085097

Unavailable

2

FIN DAMPER #2

3083930

Unavailable

3

NUT-FLANGE(10)

3082910

$2.39

4

FIN DAMPER B

3084799

Unavailable

4

FIN DAMPER B

3084799

Unavailable

4

FIN DAMPER B

3084799

Unavailable

5

Fin Damper A

3084798

$31.99

6

GASKET, HEAD (Head)

3085098

Unavailable

7

Stud

3080283

$12.94

8

O-Ring

3084292

Unavailable

9

ADAPTER, CARB. * (Incl. 8)

3085013

$103.99

10

BOLT, ALLEN (Socket Head)

3081330

$3.99

11

SCREW,(10) (Pan Head)

3081497

$2.39

12

BAND-CARB MTG. (Incl. 11)

3082257

Unavailable

13

SEAL,OIL

3082162

$39.99

14

PIN, DOWEL Substituted by 3086838

3080103

$7.14

14

PIN, DOWEL Substituted by 3086838

3080103

$7.14

15

GROMMET

3084801

$5.03

16

BRACKET,WIRE

3084800

Unavailable

17

BOLT&WASHER ASM.(10)

3084802

$1.49

18

CRANKCASE ASM. (Incl. 13, 14, 20-23, 25, 26)

3084791

Unavailable

19

GASKET,STARTER(NON-ASBESTOS)

3085283

Unavailable

20

PLUG, DRAIN

3083767

Unavailable

20

PLUG, DRAIN

3083767

Unavailable

21

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

21

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

22

BOLT W/WASHER

3080739

$6.39

23

BOLT&WASHER ASSY.

3083615

Unavailable

24

SCREW&WASHER ASM.

3081635

Unavailable

25

SEAL, OIL, PTO (PTO)

3084581

$28.32

26

Stud

3084119

$9.59

26

Stud

3084119

$9.59

27

Bearing, Ball

3084121

$39.99

28

SPACER

3084792

Unavailable

29

Bearing, Ball

3084775

$43.99

30

GASKET,CYL,NA

3084795

Unavailable

31

NUT-FLANGE(10)

3082911

$1.99

32

FIN DAMPER #1

3083929

Unavailable

33

CYLINDER (Incl. 7, 34, 38)

3084793

Unavailable

34

STUD (10)

3080016

$5.75

35

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

36

WASHER LOCK ,(10)

3080530

$3.19

37

NUT(10)

3080285

Unavailable

38

STUD

3084794

Unavailable
