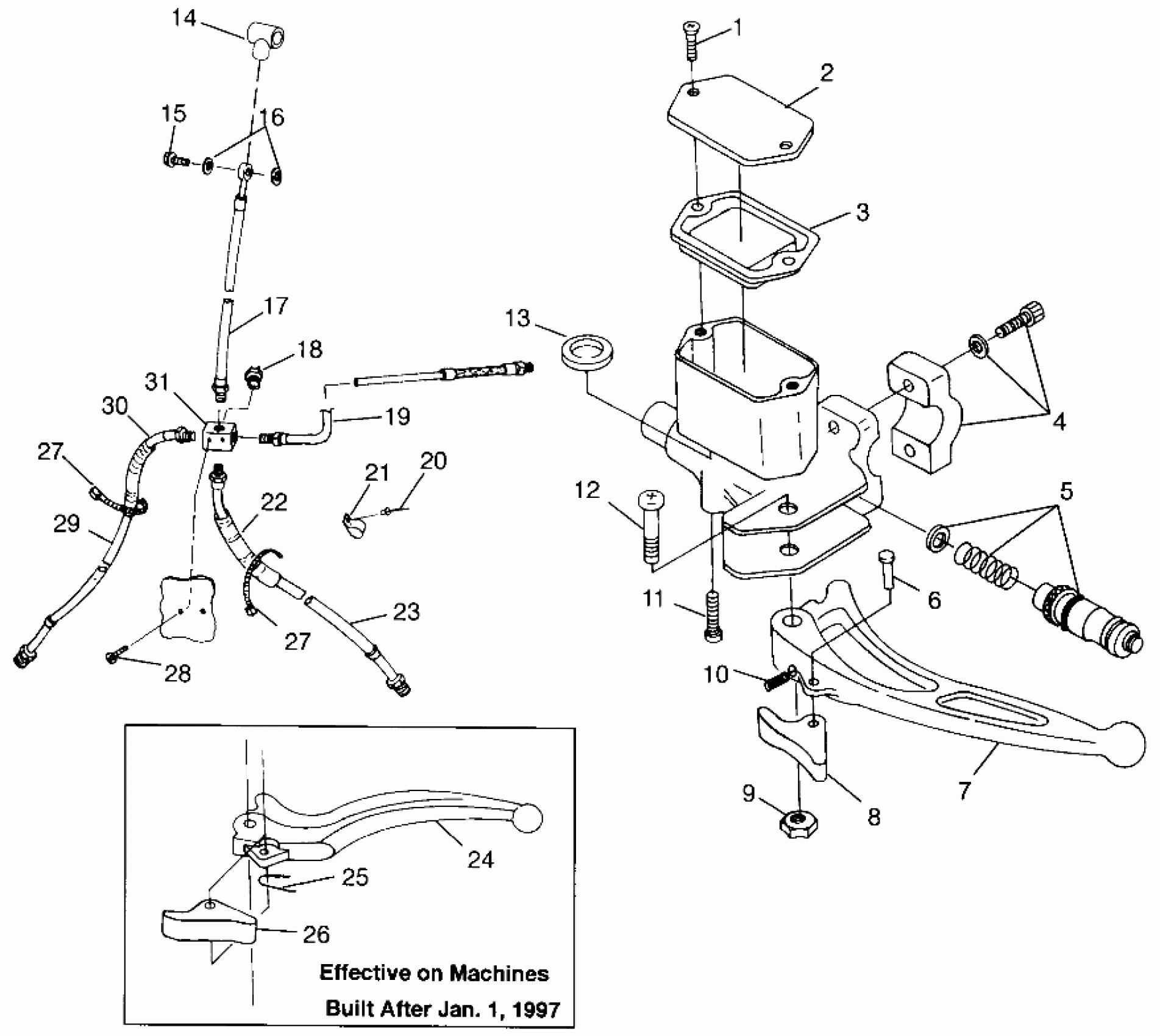

Polaris XPRESS 300 - W97CA28C CONTROLS - MASTER CYLINDER/BRAKE LINE XPRESS 300 W97CA28C and XPRESS 400L (4939603960B013) Diagram

#

Description
Price

-

MASTER CYL.ASM,3/4"BANJO (Incl. 1-13)

2050078

$243.99

-

KIT,MASTER CYL RES. (Incl. 1-3, 13)

2200809

$68.79

1

KIT,BOLT(2),RES.CAP,MCYL

1930797

$11.19

2

CAP,M.CYL.RES.

1930796

Unavailable

3

DIAPHRAGM,M.CYL.RES.

1930795

$44.51

4

KIT,M.CYL.CLAMP

2200808

Unavailable

5

KIT,M.CYL.REBUILD Substituted by 1930799

2200810

$89.03

6

Rivet

1930804

Unavailable

7

KIT,M.CYL LEVER Substituted by 2201034 (Incl. 6, 8, 10)

2200811

$61.77

8

LEVER,PARKBRAKE Substituted by 2201034

1930802

$61.77

9

NUT,M.CYL.HANDLE PIVOT

1930806

Unavailable

10

SPRING,PARKING BRAKE Substituted by 2201034

1930803

$61.77

11

BOLT,MCYL.RESERVOIR,KIT

1930792

$23.99

12

BOLT,M.CYL.HANDLE PIVOT

1930805

Unavailable

13

Ring, Square, Master Cylinder Reservoir

-------

Unavailable

14

BOOT,BRAKELINE,RUBBER

5411297

$2.07

15

BOLT,BANJO,BRAKE

1930674

Unavailable

16

Seal

5410988

$4.84

17

LINE,HYD.BRAKE,POD Substituted by 1930817 (400)

1930760

Unavailable

17

LINE,HYD.BRAKE Substituted by 1930816 (300)

1930777

Unavailable

18

SWITCH,STOPLIGHT

4110164

Unavailable

19

LINE,BRAKE,REAR

1930751

Unavailable

20

RIVET(50)

7621462

$1.49

21

CLAMP,NYLON,CABLE(10)

7080539

$4.79

22

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

23

LINE,BRAKE,LH,FR,W/FITTINGS

1930752

$87.99

24

KIT,LEVER (Incl. 6, 25, 26)

2201034

$63.99

25

SPRING, FLAT

-------

Unavailable

26

KIT,LEVER,PARKBRAKE (Incl. 6, 25)

2201090

$40.46

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

SCREW(10)

7512027

$1.49

29

CONDUIT, 38 CM.

8360031-38

$2.63

30

LINE,BRAKE,RH,FR.W/FITTINGS

1930753

$87.99

31

FITTING,CROSS INVERT.FLARE

7052103

Unavailable
