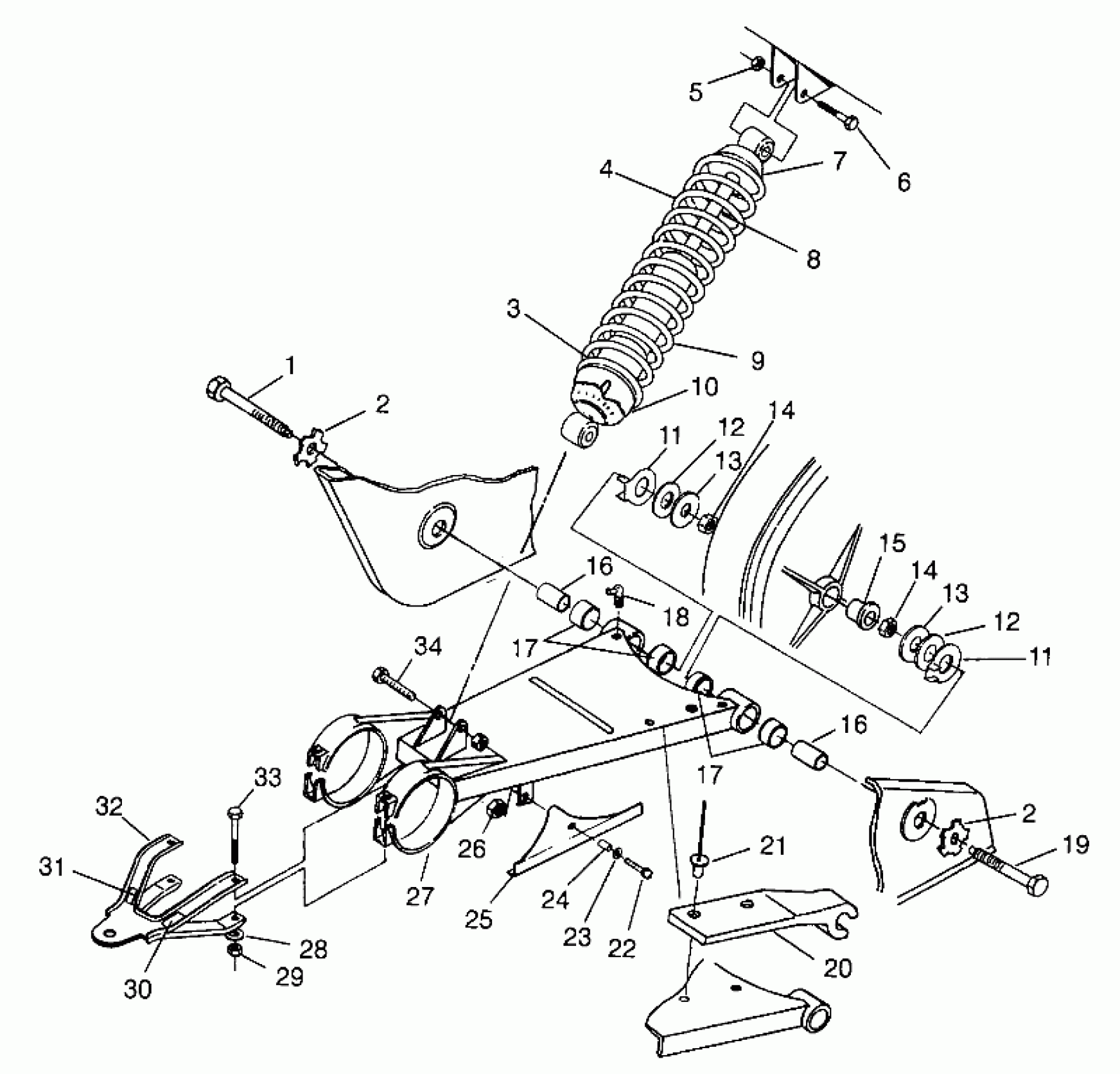

Polaris XPRESS 300 - W969530 SWING ARM/SHOCK MOUNTING XPRESS 300 W969530 and XPRESS 400 W969540 (4935923592C004) Diagram

#

Description
Price

1

BOLT, SHOULDER

7512701

$23.81

2

PLATE,BOLT LOCK

5220958

$36.41

2

PLATE,BOLT LOCK

5220958

$36.41

3

ADAPTER,SPRING,SEAT (300)

5630351

Unavailable

4

SPRING,COMP,REAR

7041204-067

$64.99

5

NUT-LOCK(10)

7542439

$1.19

6

BOLT(10)

7515415

$1.19

7

RETAINER,SHOCK (400)

5241147

$10.32

7

RETAINER, SHOCK (300)

5222118

$10.32

8

SHOCK,REAR (400)

7041447

Unavailable

8

SHOCK,REAR (300)

7041448

$168.87

9

SLEEVE,SPRING PROTECTOR (300)

5431032

$36.41

10

CAM,ADJUSTING SPRING (300)

5630334

$36.41

10

CAM,ADJUST,SPRING (400)

5630551

$36.41

11

BUSHING

5240952

Unavailable

11

BUSHING

5240952

Unavailable

12

BUSHING Substituted by 5433414

5431977

$19.84

12

BUSHING Substituted by 5433414

5431977

$19.84

13

WASHER(10)

7555911

$4.76

13

WASHER(10)

7555911

$4.76

14

NUT, LOCK(10)

7542602

Unavailable

14

NUT, LOCK(10)

7542602

Unavailable

15

Bushing, Pivot (See Pg., Ref.)

----

Unavailable

16

BUSHING,SWING ARM

5020793

$8.73

16

BUSHING,SWING ARM

5020793

$8.73

17

BUSHING,SWING ARM Substituted by 5433417

5431972

$8.73

17

BUSHING,SWING ARM Substituted by 5433417

5431972

$8.73

18

FITTING, LUBE. (45

7080438

$10.32

19

BOLT, SHOULDER

7512702

Unavailable

20

GUIDE, CHAIN

5431310

$32.37

21

RIVET(50)

7621433

$1.19

22

SCREW-FLANGED(10)

7515304

$5.56

23

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

24

Bushing

5332828

$9.70

25

GUARD, CHAIN

5430776

$36.41

26

NUT LOCK(10)

7542321

$1.19

27

ARM ASM,SWING (Incl. 19, 20)

1580090

Unavailable

28

WASHER(10)

7555883

$3.97

29

NUT, LOCK,(10)

7542503

$10.32

30

DECAL,CHAIN FREE PLAY

7074752

Unavailable

31

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

32

KIT, ATV HITCH Substituted by 2873036 (Incl. 30-33)

2200472

Unavailable

33

BOLT(10)

7512576

$7.94

34

BOLT(10)

7515438

$4.76
