STARTING MOTOR (400) XPRESS 400 W969540 (4935923592E004)

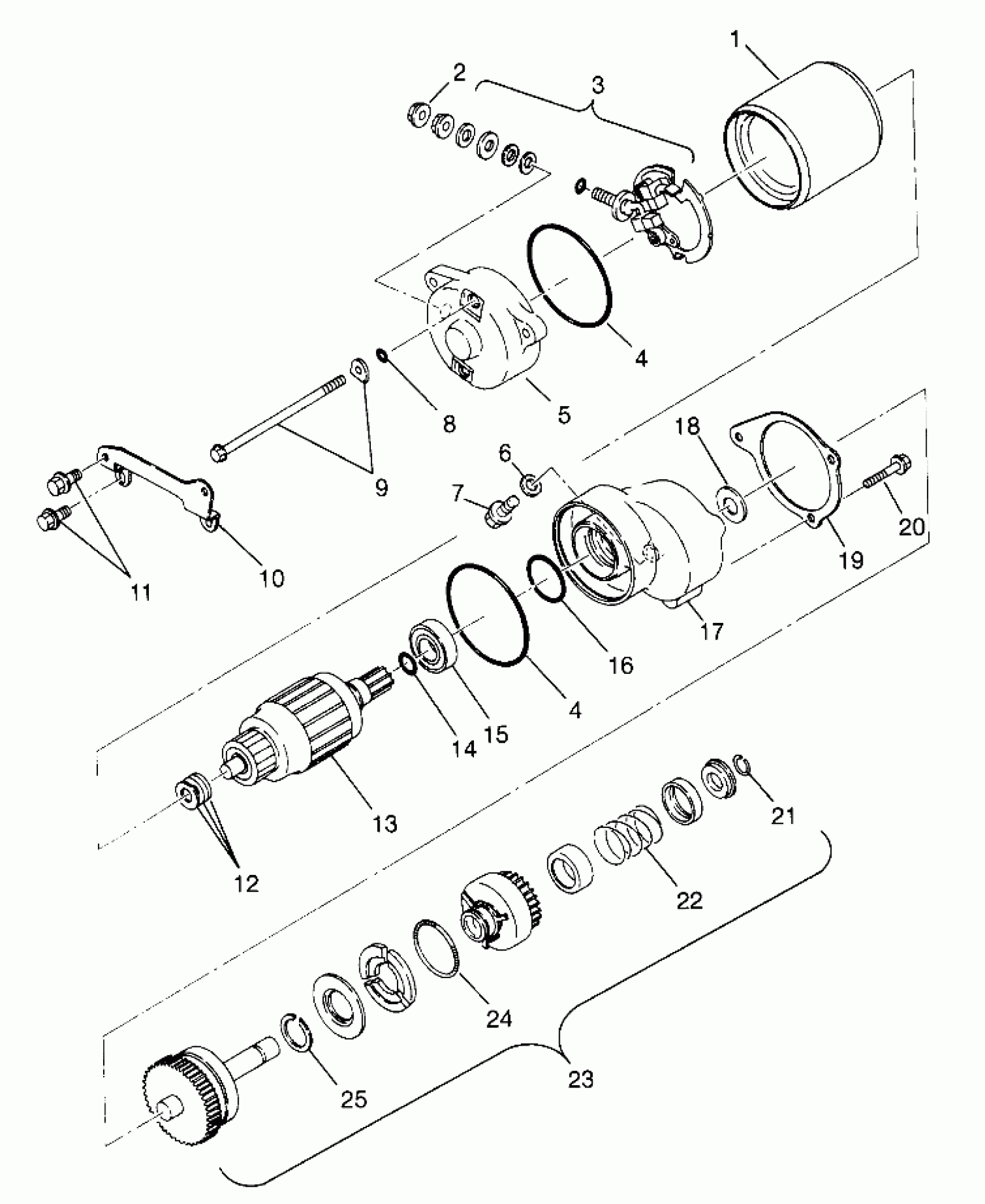

Polaris XPRESS 300 - W969530 STARTING MOTOR (400) XPRESS 400 W969540 (4935923592E004) Diagram
#
Description
Price
1
STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-5, 8, 9, 12-17)
3084403
Unavailable
1
MOTOR,STARTING Substituted by 3085392 (Incl. 1-5, 8, 9, 12-18, 21-25)
3085282
Unavailable
2
NUT, FLANGE(10)
3083649
$3.99
3
BRUSH,COMPL.2-POLE *
3084406
Unavailable
4
RING, RUBBER
3084405
Unavailable
4
RING, RUBBER
3084405
Unavailable
5
COVER,REAR,STARTER(300-400)
3085032
$82.39
6
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
7
BOLT, FLANGE(10) Substituted by 3087035
3083568
$3.85
8
O-RING
3084408
Unavailable
9
Bolt, Through
3084407
Unavailable
10
BRACKET Substituted by 3086780
3084214
Unavailable
12
Washer Set
3083754
$2.39
13
ARMATURE ASM. * (Incl. 14, 15)
3084404
$207.99
14
O RING
3083934
Unavailable
15
BALL BEARING
3083777
$31.99
16
O RING
3083741
$9.37
17
COVER, FRONT (Incl. 16)
3085305
$123.02
18
WASHER, GEARSHAFT Substituted by 7555908
3083737
Unavailable
19
GASKET,STARTER(NON-ASBESTOS)
3085283
Unavailable
20
BOLT, FLANGE Substituted by 3086781
3084215
Unavailable
21
CLIP
3084409
$7.19
22
SPRING, RETURN
3084410
$2.47
23
GEAR SHAFT ASM. Substituted by 3085394 (Incl. 18, 21-25)
3083647
Unavailable
24
SPRING, WEIGHT
3084411
$15.67
25
CLIP
3084412
$9.59
