Description

Price

1

MOTOR ASM,STARTER Substituted by 3087043 (Incl. 1-5, 8, 9, 12-18, 20-24)

3085392

Unavailable

1

STARTER MOTOR ASM. * (Incl. 2-5, 8, 9, 12-17)

3085393

Unavailable

2

BRUSH,COMPL.2-POLE *

3084406

Unavailable

3

NUT, FLANGE(10)

3083649

$3.99

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

COVER,REAR,STARTER(300-400)

3085032

$82.39

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

8

O-RING

3084408

Unavailable

9

Bolt, Through

3084407

Unavailable

10

Bracket

3083650

Unavailable

11

BOLT,(10)

3081665

$3.19

12

Washer Set

3083754

$2.39

13

ARMATURE ASM. * (Incl. 14, 15)

3084404

$207.99

14

O RING

3083934

Unavailable

15

BALL BEARING

3083777

$31.99

16

O RING

3083741

$9.37

17

COVER, FRONT (Incl. 16)

3085305

$123.02

18

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

19

BOLT&WASHER ASM.

3082038

$3.99

20

CLIP

3084409

$7.19

21

SPRING, RETURN

3084410

$2.47

22

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 18)

3083647

Unavailable

23

SPRING, WEIGHT

3084411

$15.67

24

CLIP

3084412

$9.59

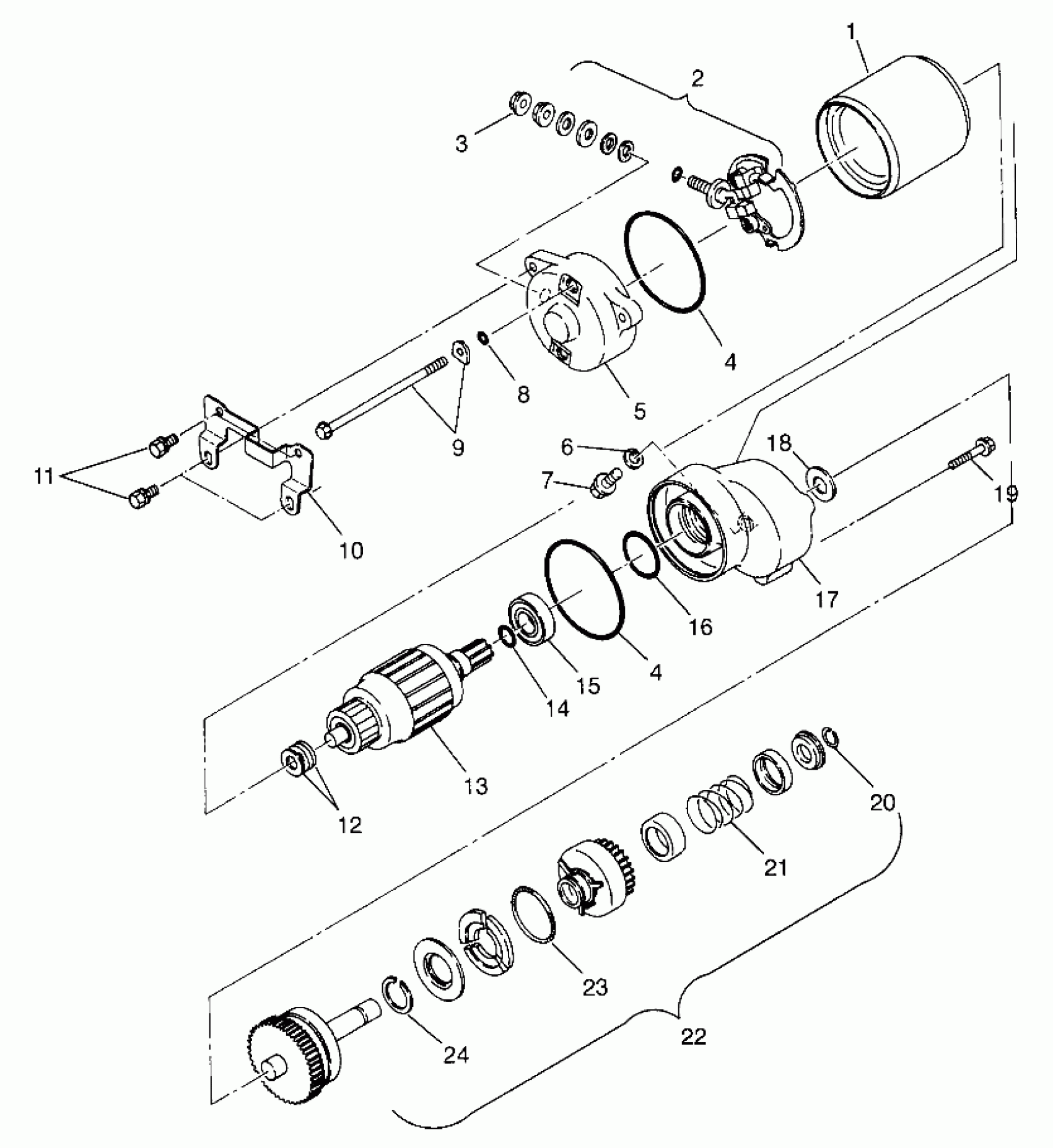

Polaris XPRESS 300 - W969530 STARTING MOTOR (300) XPRESS 300 W969530 (4935923592D007) Diagram

MOTOR ASM,STARTER Substituted by 3087043 (Incl. 1-5, 8, 9, 12-18, 20-24)

STARTER MOTOR ASM. * (Incl. 2-5, 8, 9, 12-17)

BRUSH,COMPL.2-POLE *

NUT, FLANGE(10)

RING, RUBBER

RING, RUBBER

COVER,REAR,STARTER(300-400)

GASKET, ALUM,(10) Substituted by 7555998

BOLT, FLANGE(10) Substituted by 3087035

O-RING

Bolt, Through

Bracket

BOLT,(10)

Washer Set

ARMATURE ASM. * (Incl. 14, 15)

O RING

BALL BEARING

O RING

COVER, FRONT (Incl. 16)

WASHER, GEARSHAFT Substituted by 7555908

BOLT&WASHER ASM.

CLIP

SPRING, RETURN

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 18)

SPRING, WEIGHT

CLIP
