Description

Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

$39.59

3

BOLT, WHEEL(10)

7512673

$3.19

3

BOLT, WHEEL(10)

7512673

$3.19

4

HUB, WHEEL Substituted by 2200341 (Incl. 11)

5130767

$93.08

4

HUB, WHEEL Substituted by 2200341 (Incl. 11)

5130767

$93.08

5

PUSHNUT, BOLT(10)

7670081

$3.99

5

PUSHNUT, BOLT(10)

7670081

$3.99

6

TIRE,R(24X11-10) (24x11x10)

5410479

Unavailable

7

CONNECTOR LINK

3225024

$19.99

8

WASHER(10)

7555745

$7.19

8

WASHER(10)

7555745

$7.19

9

VALVE-RIM

1525017

$5.59

9

VALVE-RIM

1525017

$5.59

10

NUT, WHEEL(10)

7542714

$1.59

11

WASHER, CONE(10)

7555796

$7.99

11

WASHER, CONE(10)

7555796

$7.99

12

NUT, CASTLE(10)

7543005

Unavailable

12

NUT, CASTLE(10)

7543005

Unavailable

13

PIN, COTTER(10)

7661404

$4.79

13

PIN, COTTER(10)

7661404

$4.79

14

DUSTCOVER, HUB

5411164

$24.27

14

DUSTCOVER, HUB

5411164

$24.27

15

CHAIN,DRIVE,86P Substituted by 3224056-086 (300)

3224046

Unavailable

15

CHAIN, DRIVE, 84P Substituted by 3224056-084 (400)

3224047

Unavailable

16

NUT LOCK(10)

7542403

$3.99

17

GUARD,38T SPKT,BLK.ALUM. (300)

5211585-067

Unavailable

17

GUARD,SPKT,34T (400)

5211617-067

$41.59

18

NUT-LOCK(10)

7542439

$1.49

19

SPACER-SPROCKET GUARD

5630586

Unavailable

20

SPROCKET, 38T (300)

3222065

Unavailable

20

SPROCKET,34T,(ATV) (400)

3222068

$109.99

21

BOLT(10)

7515540

$4.79

22

SPROCKET HUB ASM. (Incl. 23)

1520170

Unavailable

23

STUD(10)

7515513

$1.49

24

O RING, 1 5/16(10)

5410415

Unavailable

24

O RING, 1 5/16(10)

5410415

Unavailable

25

SEAL, REAR AXLE

3610013

$19.99

25

SEAL, REAR AXLE

3610013

$19.99

26

Bearing, Ball

3515501

$27.99

26

Bearing, Ball

3515501

$27.99

27

TUBE,BEARING SPACER

5010204

Unavailable

28

HOUSING, AXLE

5130663

Unavailable

29

SPACER,BEARING

5010206

$35.99

30

RING, SNAP(10)

7710405

$4.79

31

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

32

AXLE, REAR

5020789

Unavailable

33

RIM-REAR, 8.5/10,SILVER

1520183-117

Unavailable

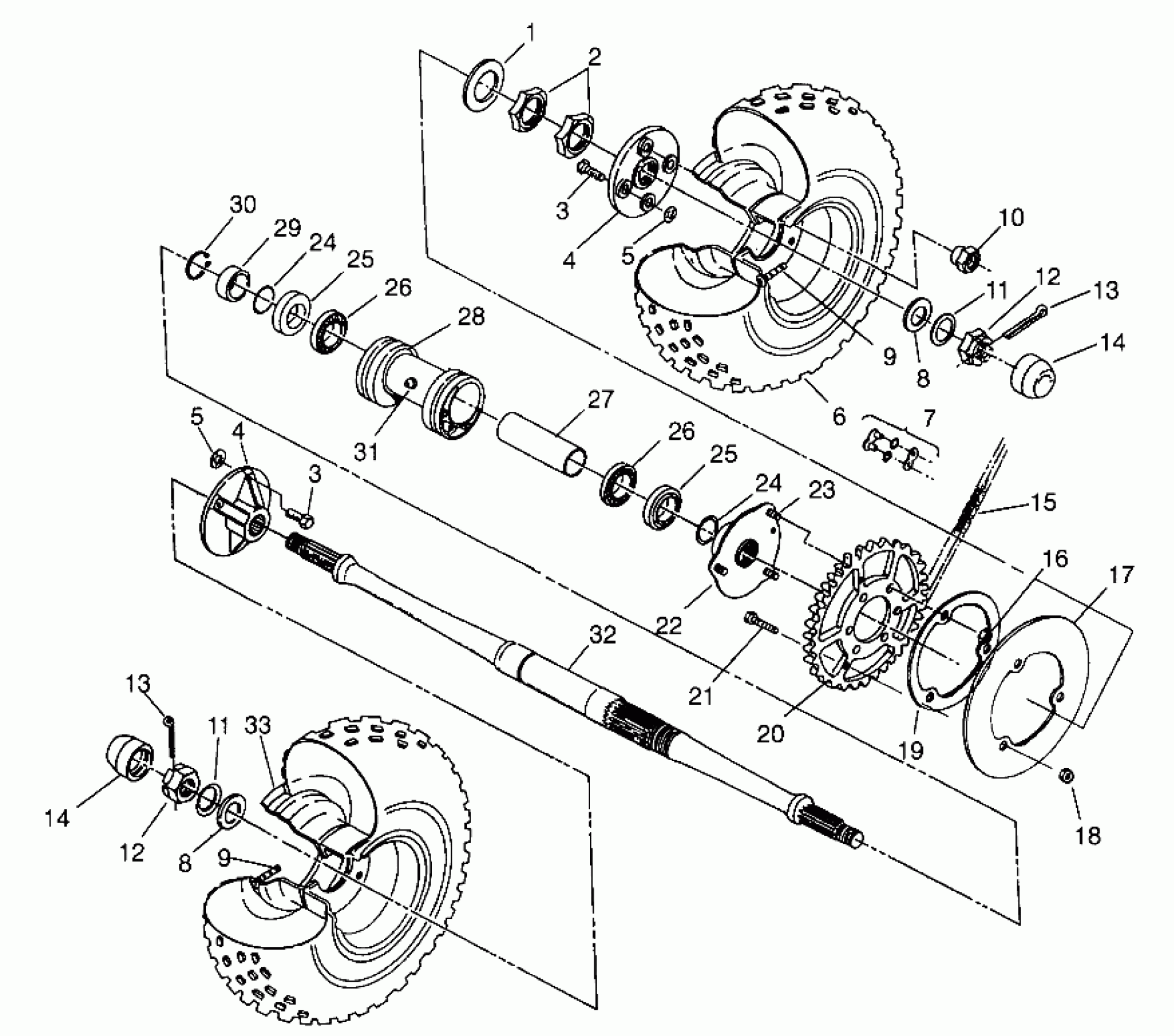

Polaris XPRESS 300 - W969530 REAR WHEEL DRIVE XPRESS 300 W969530 and XPRESS 400 W969540 (4935923592C011) Diagram
