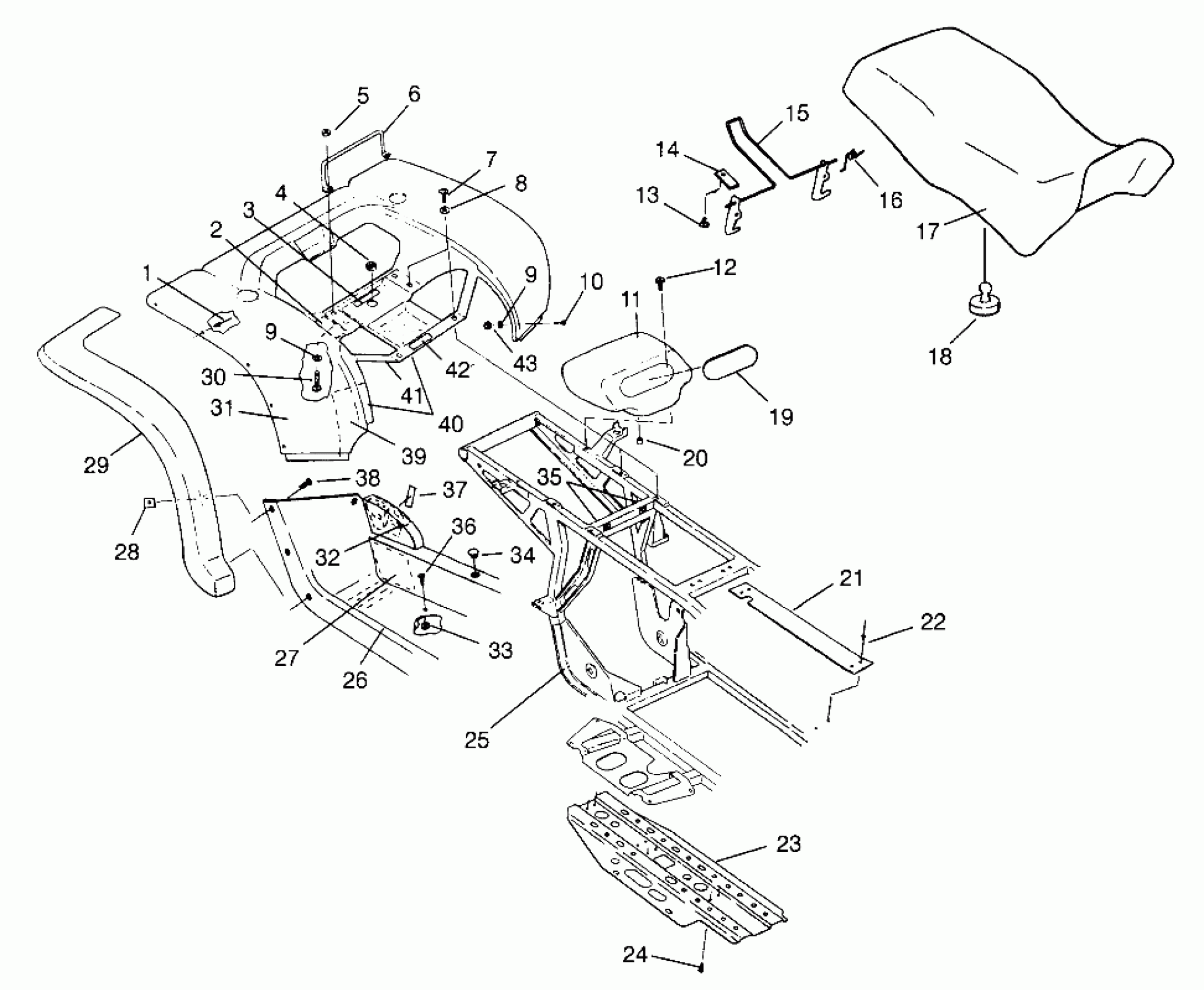

Polaris XPRESS 300 - W969530 REAR CAB and SEAT XPRESS 300 W969530 and XPRESS 400 W969540 (4935923592A007) Diagram

#

Description
Price

1

RIVET(50)

7661645

$3.99

2

FOIL,REAR CAB,REAR

5811107

$6.46

3

DECAL,CARB.INFO.

7073761

Unavailable

4

Grommet

5411042

Unavailable

5

NUT(10)

7541925

$1.49

6

RETAINER,SEAT LATCH

5224592

Unavailable

7

SCREW(10)

7515180

Unavailable

8

WASHER, FLAT(10)

7555859

$1.49

9

WASHER(10)

7555792

$4.79

9

WASHER(10)

7555792

$4.79

10

SCREW(10) Substituted by 7511989

7512085

Unavailable

11

TOOLBOX

5431786

$53.59

12

BOLT(10)

7512246

Unavailable

13

BLIND RIVET(50)

7621403

$1.49

14

BRACKET,LEVER RETAINER

5211033

$29.25

15

LATCH,SEAT

1040387

$47.99

16

SPRING, LATCH

7041370

$9.59

17

FOIL,SEATBASE,LG.

5811104

Unavailable

17

FOIL,SEATBASE,SM.

5811105

$9.91

17

COVER,SEAT,LT.GRAY (w/Label)

2681747-143

$141.65

17

SEAT ASM, LT.GRAY Substituted by 2682201-143 (Incl. 13-18)

2681746-143

$424.98

18

Bumper, Rubber

5410414

$3.19

19

COVER, TOOLBOX

5431787

Unavailable

20

CAP,DRAIN

5410896

$5.59

21

GUARD-CLUTCH, BLK

5241403-067

Unavailable

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

23

GUARD,ROCK,BLK.

5240560-067

$87.99

24

BOLT(10)

7512232

$1.49

25

FRAME,MAIN,(400 2X4),BLK [No Longer Available] (400)

1040479-067

$695.22

25

FRAME,MAIN,(300-2X4),BLK (300)

1040487-067

$797.14

26

FOOTWELL,LH,NY,BLK.

5432056-070

$230.70

26

FOOTWELL,RH,BLK.NYLON

5432374-070

Unavailable

27

FOIL,FOOTWELL [No Longer Available]

5811402

Unavailable

28

NUT, SPEED(10)

7670057

$1.49

29

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

29

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable

30

SCREW(10)

7511930

$2.39

31

CAB,REAR,BON.BLUE,(GEN 4) Substituted by 5432663-157 (300)

5432311-157

Unavailable

31

CAB,REAR,BLUE-GRN,(GEN 4) (400)

5432311-215

Unavailable

32

FOIL,FOOTWELL,SLOTTED [No Longer Available]

5811399

Unavailable

33

NUT-LOCK(10)

7542122

$1.49

34

PLUG, HOLE

5411009

$5.65

35

TAB-AIRBOX MOUNT (400)

5222646

Unavailable

35

TAB-AIRBOX MOUNT (300)

5241418

Unavailable

36

SCREW(10)

7512279

$1.49

37

FOIL,FOOTWELL,RIB [No Longer Available]

5811401

$7.43

38

SCREW(10)

7522026

$4.79

39

FOIL FOAM

5811111

$32.37

40

FOIL,FR,REAR CAB

5811106

$8.89

41

FOIL-FOAM,(6X1)

5811087

Unavailable

42

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

43

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable
