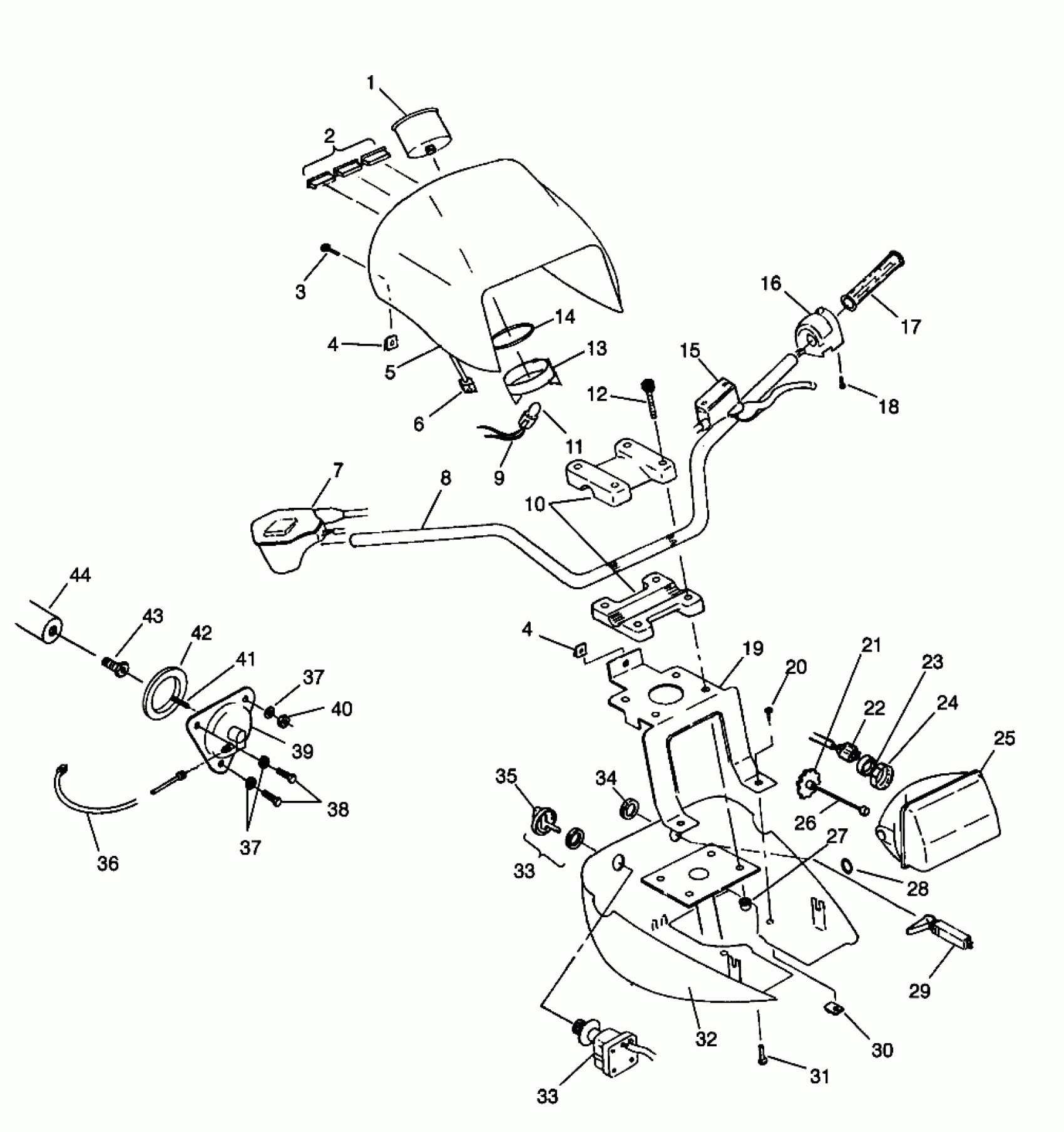

Polaris XPRESS 300 - W969530 HANDLEBAR and HEADLIGHT POD (400) XPRESS 400 W969540 (4935923592B011) Diagram

#

Description
Price

1

SPEEDO.ASM, 3" Substituted by 3280326 (Incl. 14, 13)

3280172

$237.30

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

2

INDIC"LOW OIL&HI-BEAM."

4040052

$31.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

POD,H/L,UP,BLU-GRN.

5431812-215

Unavailable

6

HARNESS,WIRE,UPR.INDIC(2X4)

2460556

Unavailable

7

THROTTLE CONTROL ASM

2010159

Unavailable

8

TUBE,H'BAR,BLK. Substituted by 5242987-067

5224607-067

$114.99

9

HARNESS, SPEEDO

2460387

Unavailable

10

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

11

BULB TAILLIGHT(10)

4030015

$4.03

12

SCREW(10)

7515188

$2.39

13

CLAMP,BACK,SPEEDO.

3280175

Unavailable

14

GASKET,SHOCK MT.

3280174

$9.11

15

Asm., Master Cylinger (See Pg. for Details)

-------

Unavailable

16

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

17

GRIP, HANDLEBAR

5431030

$24.27

18

SCREW

2010055

Unavailable

19

BRKT,POD MTG,BLK.

5240586-067

Unavailable

21

KNOB,ADJUSTING

4032079

$23.99

22

HARNESS,WIRE,LWR.INDIC(2X4)

2460555

Unavailable

23

BOOT, HEADLIGHT

5411120

$27.99

24

COLLAR,LOCK

4032077

$27.99

25

BULB,QUARTZ.H/L,INDY

2870448

$24.99

25

LENS&REFLECTOR ASM.

4032075

Unavailable

26

ROD,ADJUSTING

4032078

Unavailable

27

NUT(10)

7542124

Unavailable

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$24.27

29

CABLE,CHOKE CONTROL

7080579

$97.13

30

NUT,U-TYPE(10)

7670089

$5.59

31

SCREW(10)

7522021

$3.99

32

POD,H/L,LOW,LT GRAY

5431811-143

Unavailable

33

SWITCH, IGNITION (Incl. Key) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110194

Unavailable

33

SWITCH, IGNITION (Incl. Key) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110194

Unavailable

34

Nut

7080229

$19.99

35

COVER, KEY Substituted by 5433534

5431964

Unavailable

36

CABLE,SPEEDO.

3280216

Unavailable

37

WASHER(10)

7555725

Unavailable

37

WASHER(10)

7555725

Unavailable

38

BOLT(10)

7515378

$1.98

39

ADAPTER,DRIVE(1:1.0)

3280218

$61.90

40

NUT-5/16-18 NYLOK-Y

7542324

$1.49

41

KEY,SPEEDO.DRIVE

3280217

Unavailable

42

SEAL,ANGLE DRIVE

3280164

Unavailable

43

BUSHING,SPEEDO.DRIVE

5020741

$9.03

44

Shaft, Output (See Pg., Ref.)

-------

Unavailable
