GEAR SELECTOR (300) XPRESS 300 W969530 (4935923592C013)

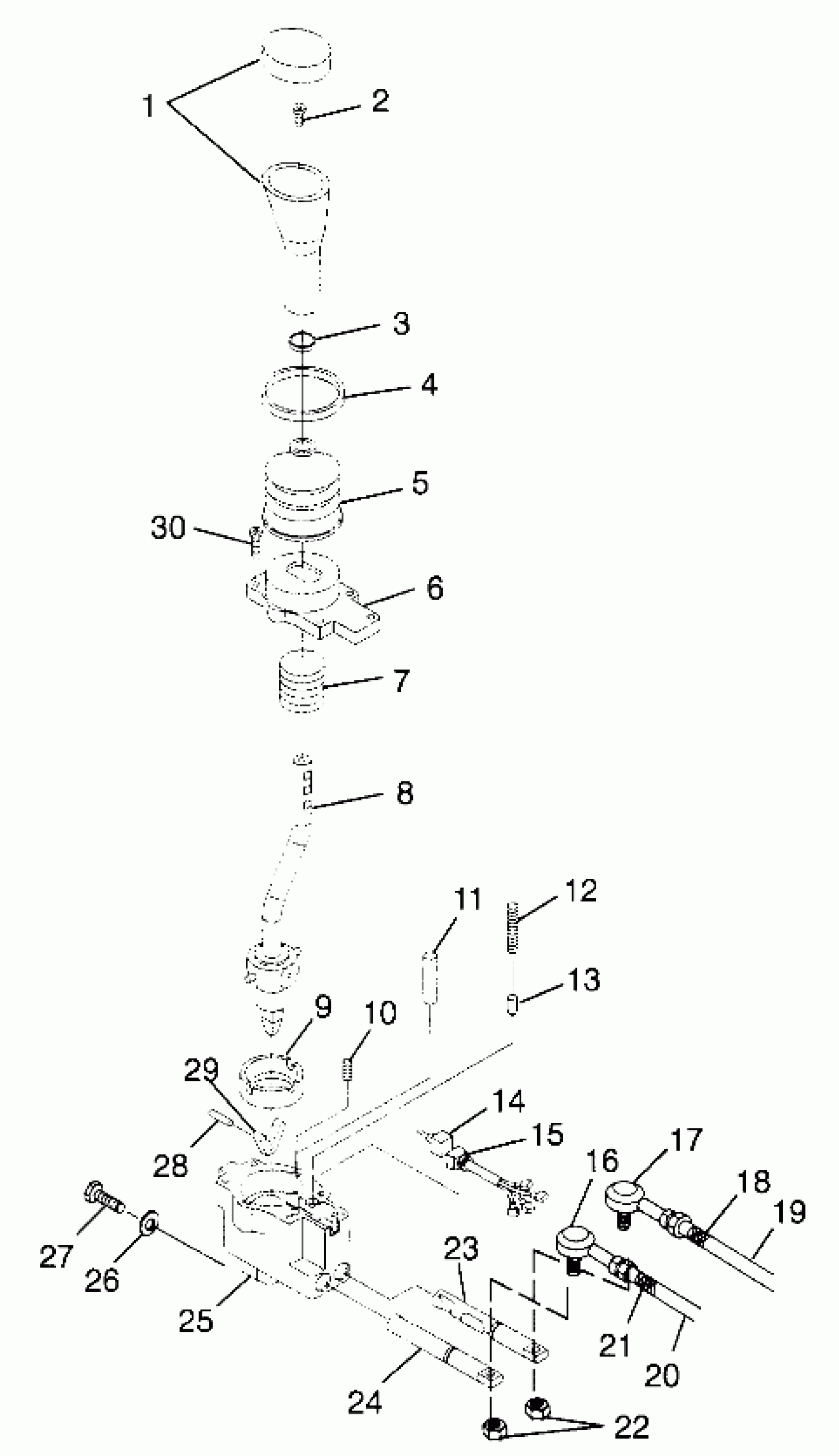

Polaris XPRESS 300 - W969530 GEAR SELECTOR (300) XPRESS 300 W969530 (4935923592C013) Diagram
#
Description
Price
-
SELECTOR ASM,GEAR,(GEN IV,300) (Incl. 1-15, 23-25, 28-30)
1341160
Unavailable
1
KNOB ASM,HI/LO/REV. Substituted by 3233195-070
3233195
$49.99
2
SCREW,(10)
7512024
$4.79
3
Strap, Wire
3233131
$9.70
4
CLAMP
3233132
Unavailable
5
BOOT,GEAR SELECTOR
3233368
$74.79
6
COVER,GEAR SELECTOR
3233213
Unavailable
7
SPRING,HOLDING
3233158
Unavailable
8
HANDLE SUBASM,(300 GEN IV)
3233214
Unavailable
9
CUP,BEARING
3233063
$15.99
10
SPRING,CENTERING
3233083
Unavailable
11
PIN, STOP
3233062
Unavailable
12
SPRING,DETENT
3233069
Unavailable
13
BULLET,DETENT
3233060
$64.99
14
SWITCH,GEAR SELECTOR
3233215
Unavailable
15
STRAP, WIRE
3233090
$2.86
16
ROD END,RH,6MM.
7061014
$65.99
17
ROD END,LH,6MM.
7061013
$65.99
18
NUT(10)
7546702
$1.49
19
ROD,SHIFT-LINK,LOW
5020749
Unavailable
20
ROD,SHIFT-LINK,HIGH
5020748
Unavailable
21
NUT(10)
7546701
$3.99
22
NUT(10) Substituted by 7546703
7546707
Unavailable
23
SLIDE ASM,HIGH/REV
3233217
Unavailable
24
SLIDE ASM,LOW
3233218
Unavailable
25
BODY,GEAR SELECTOR
3233216
Unavailable
26
WASHER(10)
7552605
$5.27
27
BOLT(10)
7512269
Unavailable
28
PIN,INTERLOCK
3233070
Unavailable
29
INTERLOCK,BUTTERFLY
3233084
Unavailable
30
SCREW Substituted by 3233498
3233085
Unavailable
