- XPRESS 300 - W969530
ENGINE MOUNTING (400) XPRESS 400 W969540 (4935923592A012)

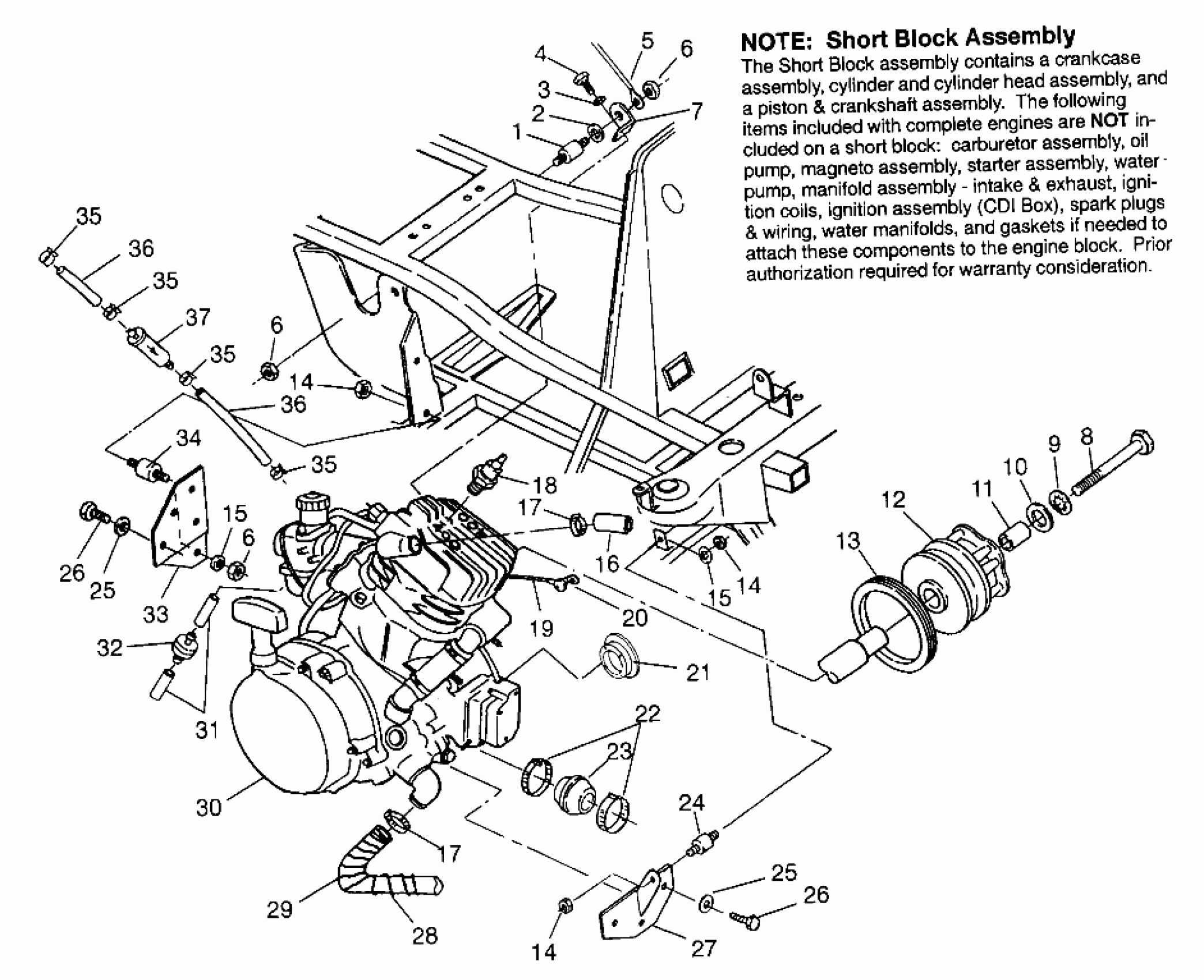

Polaris XPRESS 300 - W969530 ENGINE MOUNTING (400) XPRESS 400 W969540 (4935923592A012) Diagram
#
1
MT.,RUBBER,ENG.
3110038
Unavailable
2
INSULATOR,MOTOR MT.
5430802
$27.99
3
LOCK WASHER(10)
7552901
$1.49
4
BOLT(10)
7515321
$1.49
5
CABLE,GROUND/ENG.
4010067
Unavailable
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
7
MOUNT,ENG.TOP
5222415-067
Unavailable
8
BOLT(10)
7512566
$30.79
9
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
10
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
11
BUSHING-.437 X.770 X.50
5430261
$7.19
12
Asm., Drive Clutch (See Pg., Ref.)
-------
Unavailable
13
Seal, Cover Case (See Pg., Ref.)
-------
Unavailable
14
NUT LOCK(10)
7542403
$3.99
14
NUT LOCK(10)
7542403
$3.99
14
NUT LOCK(10)
7542403
$3.99
15
WASHER(10)
7555801
$3.99
15
WASHER(10)
7555801
$3.99
16
HOSE,ENG,UPPER
5410570
$44.51
17
CLAMP,HOSE,(10)
7080614
$7.19
17
CLAMP,HOSE,(10)
7080614
$7.19
18
SPARKPLUG (10)
3070156
$3.99
19
CABLE,SOLENOID/STARTER
4010064
Unavailable
20
INSULATOR-CABLE
5410346
$6.39
21
BRKT,RETAINER,SEAL
5222446-067
Unavailable
22
CLAMP, NARROW BAND(10)
7080511
$4.79
23
BOOT,CLUTCH INTAKE(400)
5410883
$7.99
24
MOUNT,MOTOR
3110026
Unavailable
25
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
25
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
26
SCREW(10)
7512490
$3.99
26
SCREW(10)
7512490
$3.99
27
MOUNT,ENGINE
1040231-067
Unavailable
28
SPRING,HOSE RETAINER
7041079
$4.95
29
HOSE,LOWER ENGINE
5411173
$91.99
30
ENG.(S.B.)EC38PL-SB [No Longer Available]
3084718
Unavailable
31
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
32
CHECKVALVE,VENT Substituted by 7051011
7052047
Unavailable
33
MOUNT, REAR MOTOR, BLK.
5240542-067
Unavailable
34
MOUNT,RUBBER,ENG.
3110042
Unavailable
35
HOSE CLAMP, RED (Red)
7080003
$1.49
35
HOSE CLAMP, RED (Red)
7080003
$1.49
35
HOSE CLAMP, RED (Red)
7080003
$1.49
35
HOSE CLAMP, RED (Red)
7080003
$1.49
36
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
36
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
37
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
