ELECTRICAL/TAILLIGHT XPRESS 300 W969530 and XPRESS 400 W969540 (4935923592C012)

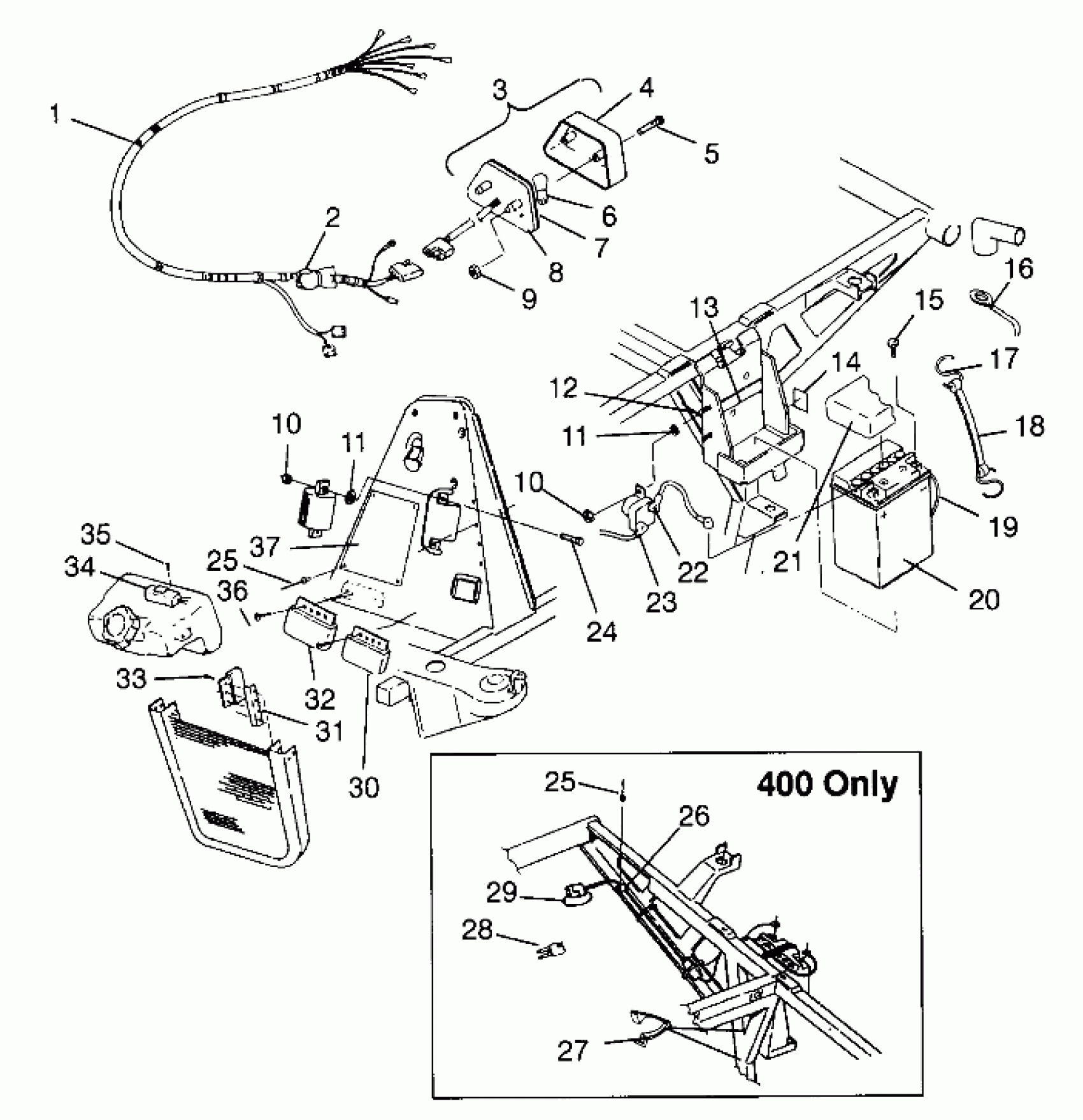

Polaris XPRESS 300 - W969530 ELECTRICAL/TAILLIGHT XPRESS 300 W969530 and XPRESS 400 W969540 (4935923592C012) Diagram
#
1
HARNESS-MAIN WIRE (300)
2460554
Unavailable
1
HARNESS,MAIN WIRE (400)
2460564
Unavailable
2
KIT,CKT.BRKR,20 AMP
2200593
$63.99
3
TAIL LIGHT ASM. (Incl. 4-9)
2432034
$55.99
4
LENS,TAILLIGHT
4032046
$32.37
5
Screw, Taillight
4032029
$4.79
6
BULB,TAILLIGHT
4030043
$6.46
7
GASKET,TAILLIGHT
4032045
$4.03
8
BACKING,TAILLIGHT
4032064
$83.99
9
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
10
NUT(10)
7541925
$1.49
10
NUT(10)
7541925
$1.49
11
WASHER(10)
7571602
$4.79
11
WASHER(10)
7571602
$4.79
12
SCREW(10)
7512027
$1.49
13
PAD-BATTERY
5810290
$7.27
14
DECAL, BATTERY [No Longer Available]
7072606
Unavailable
15
BOLT,BATT,KIT(SHORT) (Short)
2200361
$3.99
16
CABLE,BATT/ENG.,BLK.
4010095
Unavailable
17
HOOK-BATT.H/D(10)
7010032
$1.59
18
STRAP,BATTERY HOLDDOWN
5410424
Unavailable
19
TUBE,BATTERY VENT
5432077
Unavailable
20
Battery
4140006
$99.99
21
COVER,BATTERY
5431769
$14.39
22
CABLE,BATT/SOLENOID,RED
4010094
Unavailable
23
CABLE,SOLENOID/STARTER
4010064
Unavailable
24
SCREW(10)
7512007
$3.99
25
RIVET,(50)
7621336
$1.59
25
RIVET,(50)
7621336
$1.59
26
CLAMP,BLK,5/16 PLASTIC(10) (400)
7080524
Unavailable
27
CLAMP, POLY (400)
7080303
Unavailable
28
PIGTAIL, POWER (400)
2460442
$12.39
29
POWER ASM,12V (400)
2410022
Unavailable
30
RECTIFIER, VOLTAGE (300)
4060087
Unavailable
30
RECTIFIER,LR-37 (400)
4060133
Unavailable
31
HEATSINK RECT. (400)
5131036
Unavailable
32
LIMITER,REV.SPEED (300)
4060085
Unavailable
32
LIMITER,RPM,350HZ. Substituted by 4060203 (400)
4060112
Unavailable
33
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
34
BRACKET-CDI (400)
5241416
$5.75
35
SCREW(10) (300)
7512076
$1.49
35
BOLT(10) (400)
7511864
$4.79
36
SCREW,(10) (400)
7512024
$4.79
37
BOARD,TERMINAL,150 ALT,ATV
4040063
Unavailable
