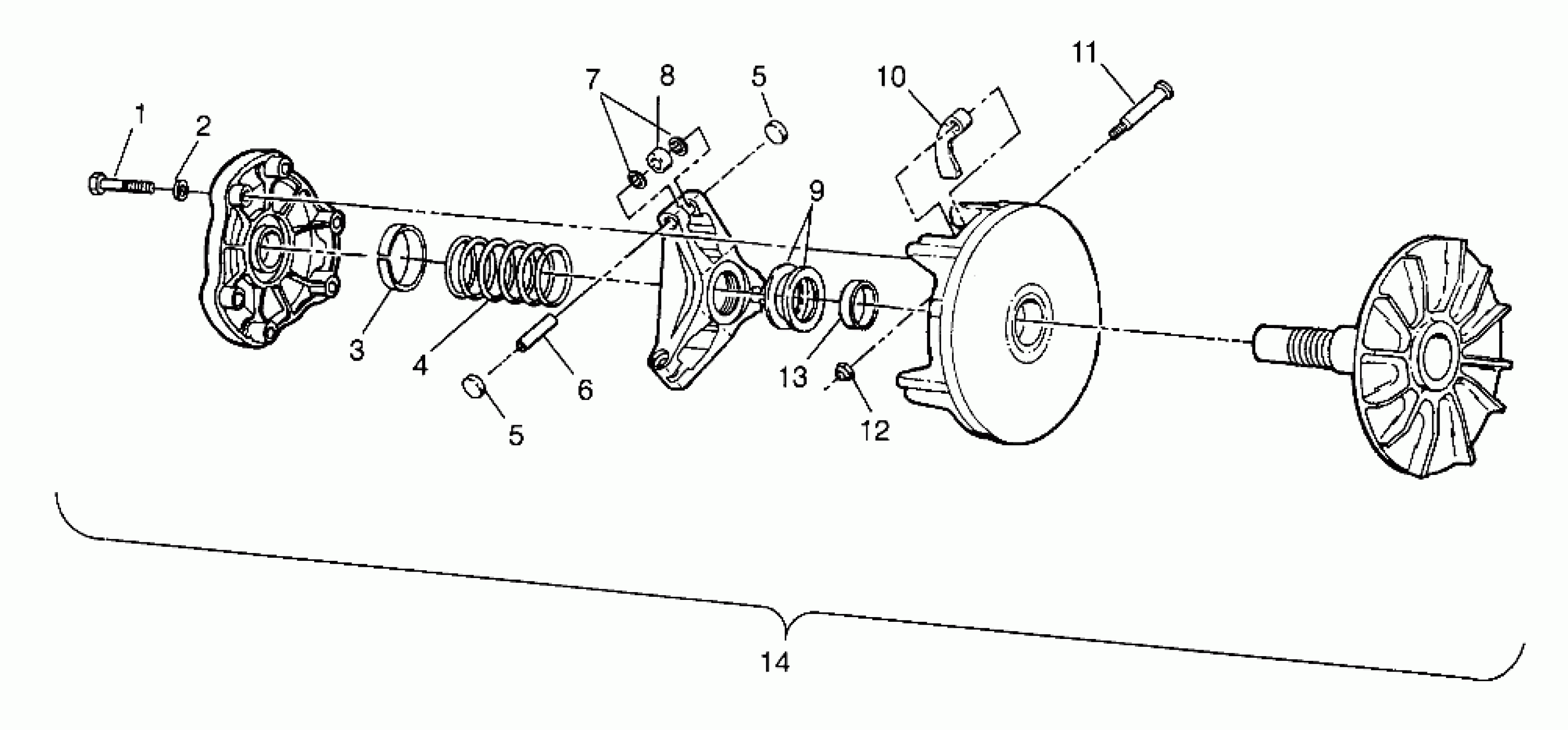

Polaris XPRESS 300 - W969530 DRIVE CLUTCH XPRESS 300 W969530 and XPRESS 400 W969540 (4935923592C005) Diagram

#

Description
Price

1

BOLT(10) Substituted by 7512163

7512176

Unavailable

2

LOCK WASHER(10)

7552801

$1.59

3

BEARING, COVER,(10)

3576510

$9.59

4

SPRING,CLUTCH

7041157

$47.99

5

BUTTON,CLUTCH

5431936

Unavailable

5

BUTTON,CLUTCH

5431936

Unavailable

6

PIN-ROLLER

5020422

$2.39

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321457

$40.46

9

SPACER(10)

5210754

Unavailable

9

SPACER(10)

5210752

Unavailable

9

SPACER(10)

5210753

Unavailable

10

WT,SHIFT, G(6) (G) (300)

5630514

Unavailable

10

WEIGHT, SHIFT S-55(6) (S-55) (400)

5630509

$31.99

11

BOLT,SPECIAL(10)

7512266

$3.19

12

NUT FLEX LOC(10)

7541906

$3.19

13

BUSHING, DRIVEN

3576504

$23.99

14

CLUTCH,DRIVE(ATV-06) (Less 4, 10)

1321632

$697.13
