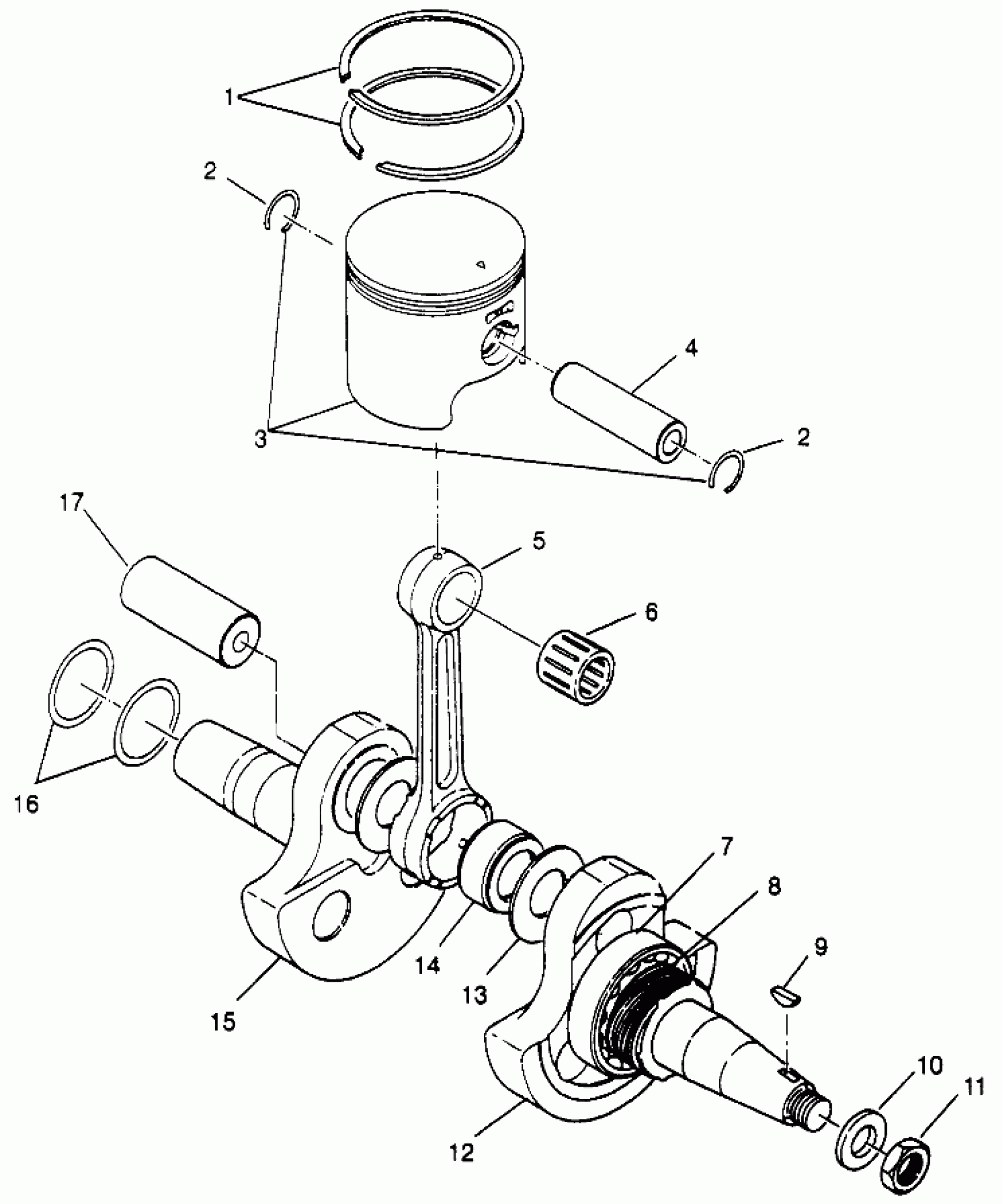

Polaris XPRESS 300 - W969530 CRANKSHAFT and PISTON (300) XPRESS 300 W969530 (4935923592D003) Diagram

RING,PISTON,(.50MM O/S),(2) (.020"/0.50mm O/S)

3084811

Unavailable

RING,PISTON,(.25MM O/S),(2) (.010"/0.25mm O/S)

3084810

Unavailable

RING,PISTON,STD.(2) (Std)

3084809

Unavailable

CLIP,(10)

3084167

$6.39

CLIP,(10)

3084167

$6.39

PISTON,(.50MM O/S) Substituted by 3085896 (.020"/0.50mm O/S)

3085101

Unavailable

PISTON, STD. Substituted by 3085894 (Std)

3085099

Unavailable

PISTON,(.25MM O/S) Substituted by 3085895 (.010"/0.25mm O/S)

3085100

Unavailable

PIN, PISTON

3083858

$23.99

ROD CONNECTING

3082790

Unavailable

BEARING, SMALL END

3083626

Unavailable

Bearing, Ball

3084580

$31.99

GEAR,CRANKSHAFT

3083745

Unavailable

KEY Substituted by 3081543

3080130

Unavailable

WASHER Substituted by 3086767

3083904

Unavailable

LOCKNUT

3083905

Unavailable

CRANKSHAFT ASM. (Incl. 5, 7, 8, 12-15, 17)

3084803

Unavailable

CRANKSHAFT #1

3084804

Unavailable

Spacer

3083804

$19.99

BEARING,LGE.END

3083803

Unavailable

CRANKSHAFT #2

3084805

Unavailable

SPACER #2 Substituted by 3086766 (0.3mm)

3084779

Unavailable

SPACER #1 Substituted by 3086765 (0.2mm)

3084778

Unavailable

CRANK PIN PTO

3082796

$36.41
