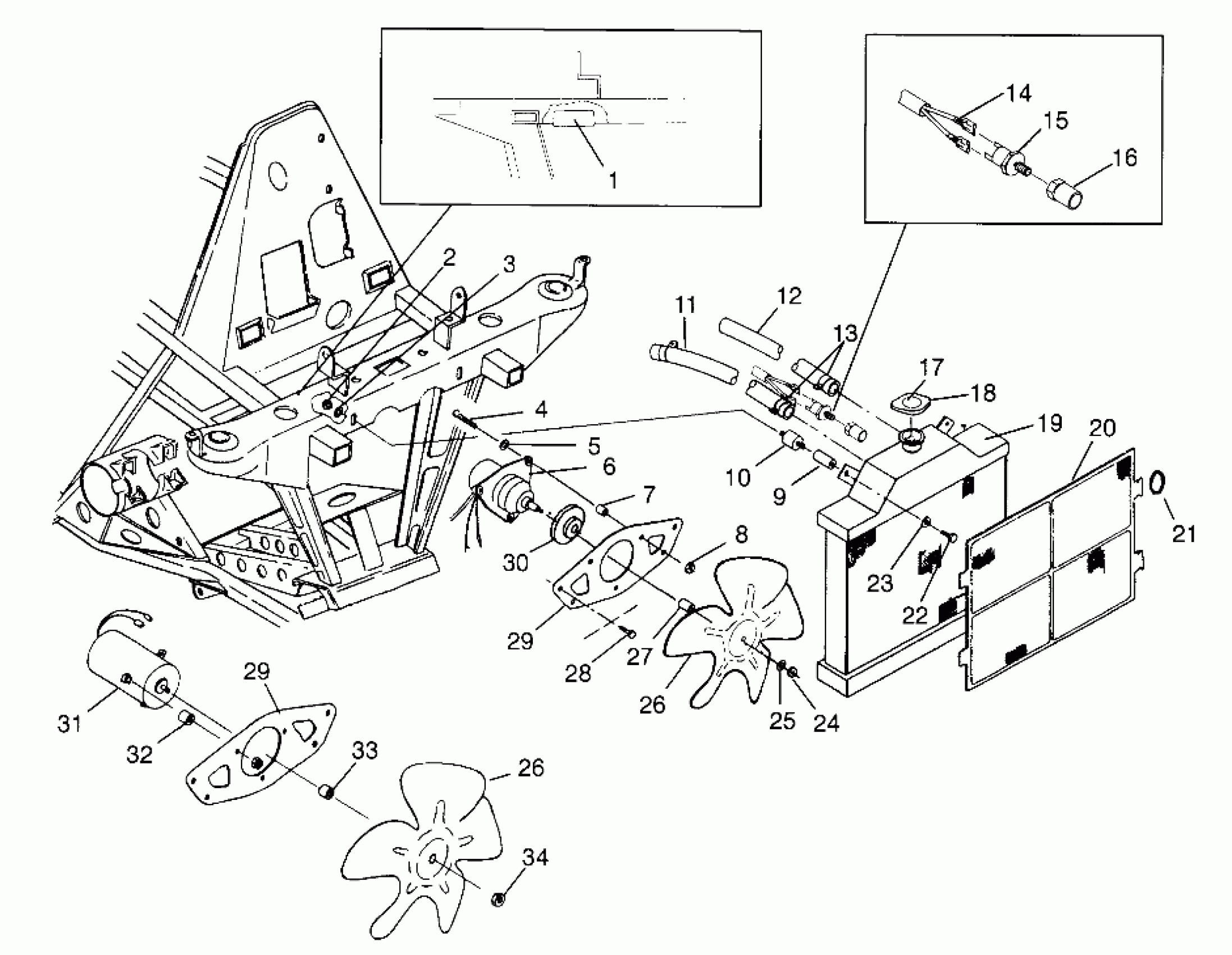

Polaris XPRESS 300 - W969530 COOLING SYSTEM (400) XPRESS 400 W969540 (4935923592B001) Diagram

#

Description
Price

1

EDGE TRIM - BLACK Substituted by 5521131

8360012

Unavailable

2

NUT-LOCK(10)

7542122

$1.49

3

WASHER(10)

7558301

$1.49

4

SCREW(10)

7511874

Unavailable

5

WASHER, FLAT(10)

7558201

$5.79

6

DESC NOT_AVAILABLE

2410054

Unavailable

6

MOTOR, FAN Substituted by 3084266 (Fuji)

2410006

Unavailable

7

SPACER, FAN BRKT.

5333073

$3.83

8

Nut

7547004

$4.79

9

Spacer, Mount

5020572

$8.79

10

Mount, Rubber

3110032

$7.99

11

Hose, Lower Engine (See Pg. A11, Ref. 29)

-------

Unavailable

12

Hose, Upper Engine (See Pg. A11, Ref. 16)

-------

Unavailable

13

CLAMP,HOSE,(10)

7080614

$7.19

14

SWITCH ASM,THERMAL FAN L/C

4110189

$57.19

15

FITTING,HEX BUSH

7052116

Unavailable

16

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

17

DECAL(CPSC),RAD.CAP

7073068

Unavailable

18

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

19

RADIATOR,"U"FLOW

1240015

Unavailable

20

COVER,RADIATOR,W/MESH

5431760

Unavailable

21

O RING

5410607

$5.99

22

SCREW(10)

7512113

$3.99

23

WASHER(10)

7552605

$5.27

24

NUT

3083952

Unavailable

25

WASHER(10) Substituted by 7558301

7555776

Unavailable

26

BLADE, FAN

5240822

$57.59

26

BLADE, FAN

5240822

$57.59

27

BUSHING

3083950

Unavailable

28

BOLT(10)

7512232

$1.49

29

BRKT,COOL.FAN,BLK

5224741-067

Unavailable

29

BRKT,COOL.FAN,BLK

5224741-067

Unavailable

30

COVER

3083951

Unavailable

31

MOTOR,FAN,LIQ.COOLED

4170009

Unavailable

32

SPACER,FAN BRKT.

5432294

$3.99

33

SPACER

5333457

Unavailable

34

NUT

7542154

Unavailable
