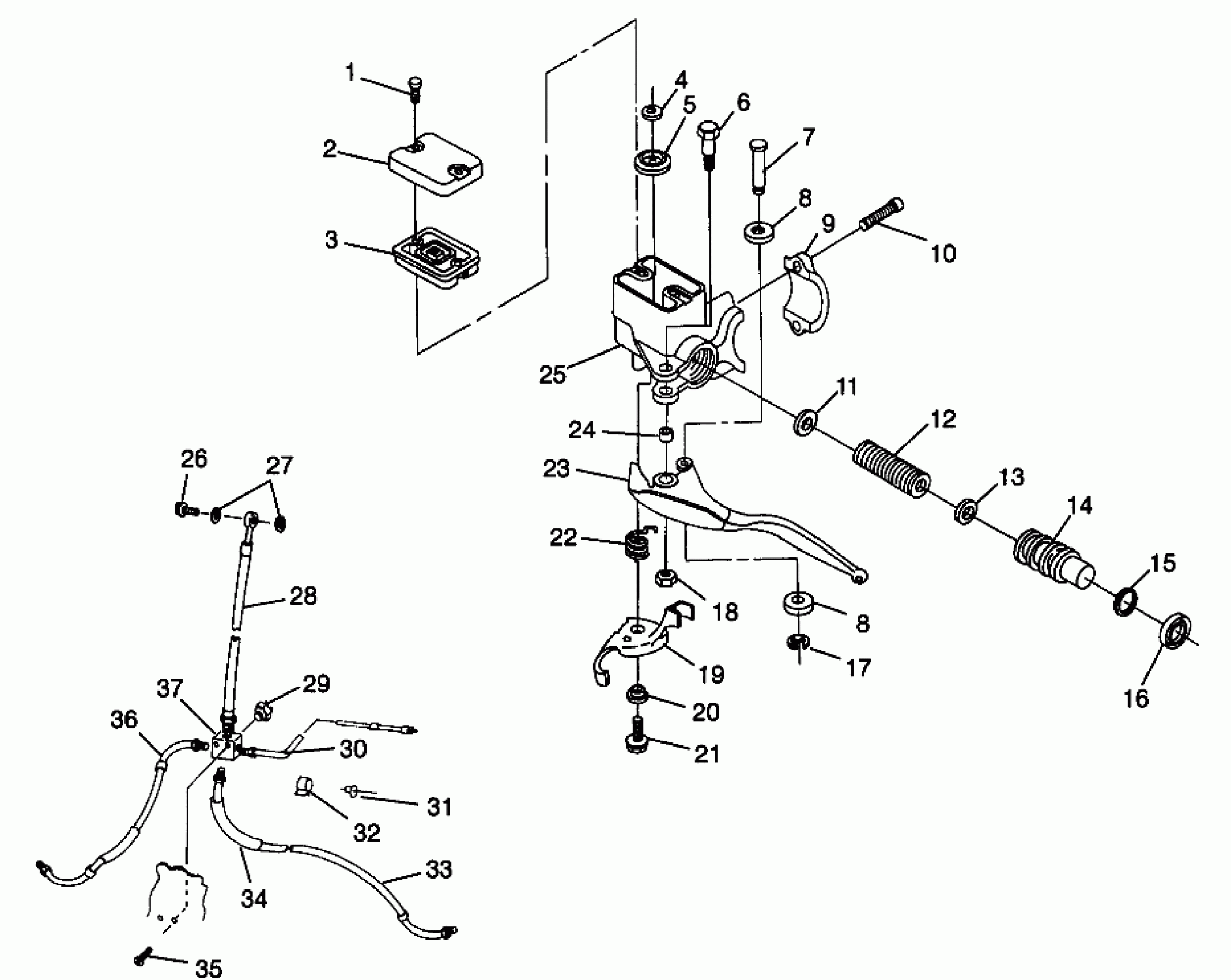

Polaris XPRESS 300 - W969530 CONTROLS - MASTER CYLINDER/BRAKE LINE XPRESS 300 W969530 and XPRESS 400 W96 (4935923592B013) Diagram

#

Description
Price

-

MASTER CYL.ASM. Substituted by 2050078 (Incl. 1-18, 23-25)

2050072

$235.51

1

SCREW,W/WASHER(10)

7512050

$3.99

2

COVER,MASTER CYL.

5630338

Unavailable

3

GASKET,MASTER CYL.

5410527

$8.99

4

WASHER, BAFFLE(10)

1930662

Unavailable

5

BAFFLE,MASTER CYL.

1930673

Unavailable

6

BOLT,BRAKE LEVER(10)

7512287

Unavailable

7

PIN,BRAKELEVER ROLLER

7661627

Unavailable

8

ROLLER, BRAKE LEVER

5020598

Unavailable

8

ROLLER, BRAKE LEVER

5020598

Unavailable

9

CLAMP, MASTER CYL.

5630342

Unavailable

10

BOLT,SOCKET HEAD(10)

7512290

$4.79

11

WASHER(10)

7555708

$3.99

12

SPRING, MASTERCYL.

7041311

Unavailable

13

SEAL, CUP,(ATV)

5410994

Unavailable

14

PISTON, MASTER CYL.

5020671

$47.99

15

O RING

5410163

$1.60

16

SEAL, OIL

3610022

Unavailable

17

RING, RETAINING(10)

7710425

Unavailable

18

NUT(10)

7542124

Unavailable

19

LEVER,PARKBRAKE,ATV

5240865

Unavailable

20

BUSHING,PK.BRAKE LEVER

5020670

Unavailable

21

SCREW(10)

7511866

$4.79

22

SPRING,PK.BRAKE

7041229

$32.37

23

LEVER, BRAKE,(ATV)

5630455

Unavailable

24

BUSHING,BRAKE LEVER

5332931

Unavailable

25

HSG,MASTER CYL.

5131146

Unavailable

26

BOLT,BANJO,BRAKE

1930674

Unavailable

27

Seal

5410988

$4.84

28

LINE,HYD.BRAKE,POD Substituted by 1930817 (400)

1930760

Unavailable

28

LINE,HYD.BRAKE Substituted by 1930816 (300)

1930777

Unavailable

29

SWITCH,STOPLIGHT

4110164

Unavailable

30

LINE,BRAKE,REAR

1930751

Unavailable

31

RIVET(50)

7621462

$1.49

32

CLAMP,NYLON,CABLE(10)

7080539

$4.79

33

LINE,BRAKE,LH,FR,W/FITTINGS

1930752

$87.99

34

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

35

SCREW(10)

7512027

$1.49

36

LINE,BRAKE,RH,FR.W/FITTINGS

1930753

$87.99

37

FITTING,CROSS INVERT.FLARE

7052103

Unavailable
