- XPRESS 300 - W969530
CLUTCH COVER (400) XPRESS 400 W969540 (4935923592C008)

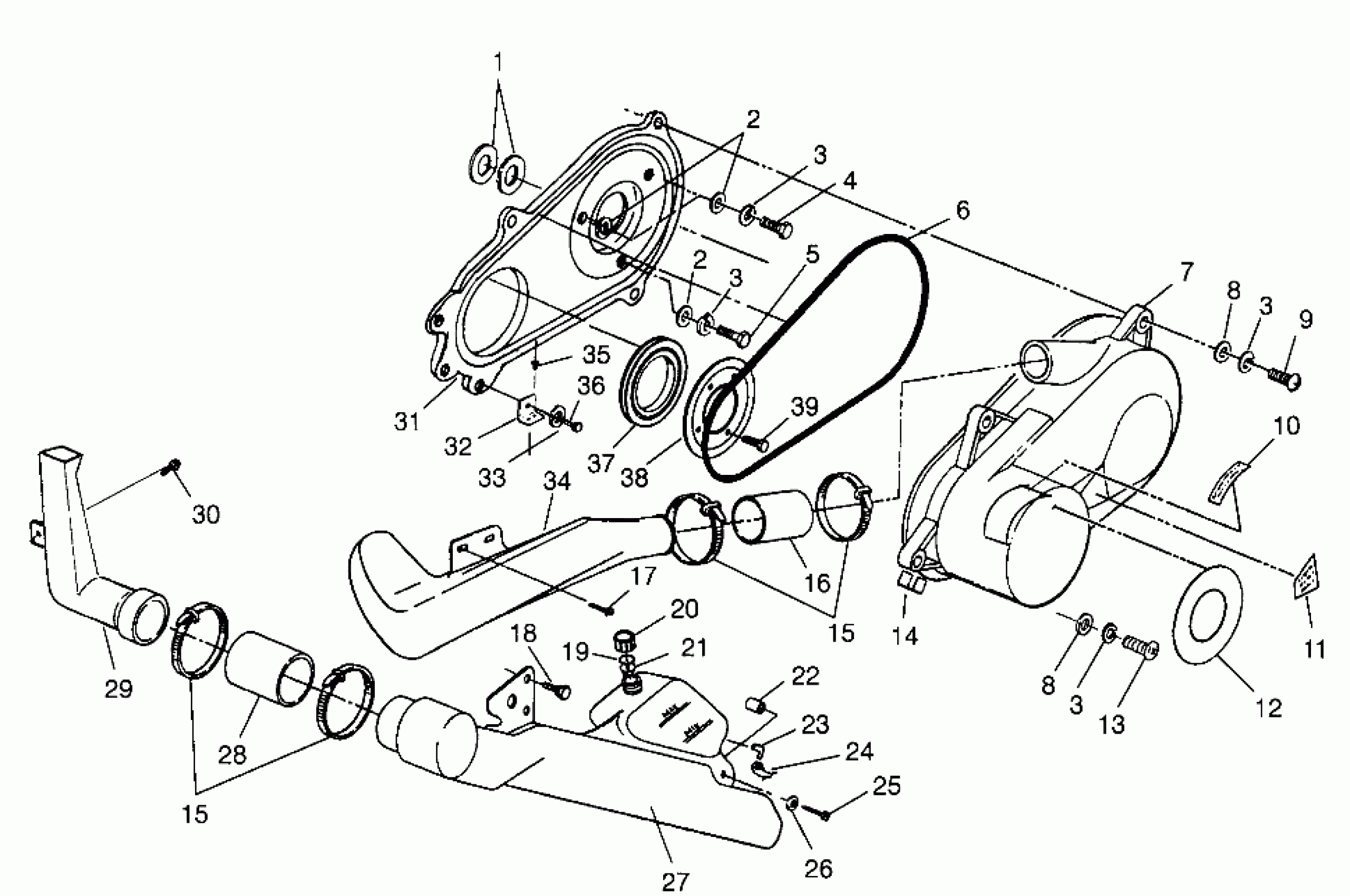

Polaris XPRESS 300 - W969530 CLUTCH COVER (400) XPRESS 400 W969540 (4935923592C008) Diagram
#
1
SEAL,COVER CASE
5410489
$13.59
1
SEAL,CVR,CASE 1/2
5411180
$24.27
2
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
$4.79
2
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
$4.79
3
WASHER(10) (w/o Hi/Lo Screws)
7552605
$5.27
3
WASHER(10) (w/o Hi/Lo Screws)
7552605
$5.27
3
WASHER(10) (w/o Hi/Lo Screws)
7552605
$5.27
3
WASHER(10) (w/o Hi/Lo Screws)
7552605
$5.27
4
SCREW
7517219
$4.79
5
SCREW(10)
7515180
Unavailable
6
SEAL,CLUTCHCOVER
5521301
$30.88
7
COVER,CLUTCH,FRONT Substituted by 5433542
5431961
$173.74
8
WASHER(10) Substituted by 7558301
7555776
Unavailable
8
WASHER(10) Substituted by 7558301
7555776
Unavailable
9
SCREW(10) (w/o Insert)
7512093
$1.49
9
SCREW (10) Substituted by 7512281 (w/Insert)
7515176
$3.85
10
DECAL,CLUTCH COVER Substituted by 7078689
7074946
Unavailable
11
DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]
7072789
Unavailable
12
DECAL,AUTO.TRANSMISSION
7074782
Unavailable
13
SCREW(10) (Cover, Clutch Inner, w/o Insert)
7512094
$1.59
13
SCREW(10) (Cover Clutch Inner, w/Insert)
7515186
Unavailable
14
CLIP,CLUTCH COVER(10)
7670051
$2.99
15
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
$2.41
15
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
$2.41
16
BOOT,CLUTCH INTAKE
5410421
$11.19
17
BOLT(10)
7512232
$1.49
18
SCREW,(10)
7512024
$4.79
19
GASKET-OVERFLOW CAP
5810279
$2.41
20
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
21
PLUG,CAP Substituted by 5433774
5431895
Unavailable
22
SPACER, NYLON(10) [No Longer Available]
5432375
Unavailable
23
FITTING,90 DEGREE
7052065
$7.19
24
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
25
SCREW(10)
7512025
$4.79
26
WASHER(10)
7555783
$3.99
27
DUCT,INLET,DOWNTUBE
5432336
$123.99
28
BOOT, INTAKE
5410509
$7.99
29
DUCT,INLET,TOP
5431794
Unavailable
30
SCREW(10)
7512017
$4.79
31
KIT,CVR,IN.CLUTCH,(400) Substituted by 2201159
2200790
$141.65
32
BRKT,CLUTCH COVER,BLK.
5241213-067
Unavailable
33
WASHER(10)
7555935
$2.39
34
DUCT, AIR OUTLET, CLUTCH Substituted by 5432615
5431671
Unavailable
35
RIVET,INTERLOCK,B(50)
7661638
$1.49
36
SCREW(10) (Cover, Clutch Inner, w/o Insert)
7512095
$4.79
36
SCREW(10) (Cover, Clutch Inner, w/Insert)
7515187
$3.03
37
Seal, Cover Case
5410575
Unavailable
38
BRKT,RETAINER,SEAL
5222446-067
Unavailable
39
Asm., Screw and Washer (See pg., Ref.)
-------
Unavailable
