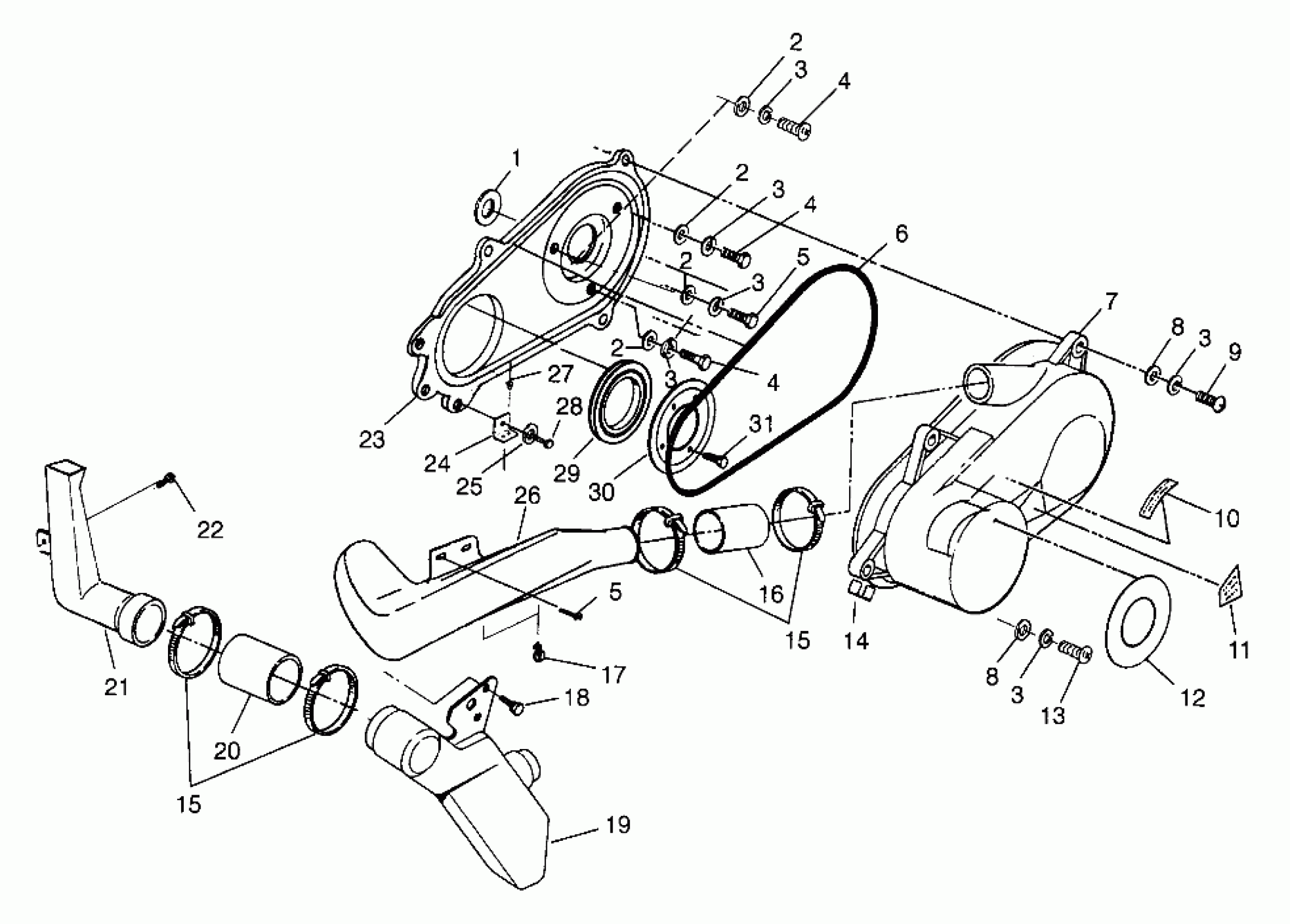

Polaris XPRESS 300 - W969530 CLUTCH COVER (300) XPRESS 300 W969530 (4935923592C007) Diagram

#

Description
Price

1

SEAL,COVER CASE

5410489

$13.59

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

3

WASHER(10) (w/o Hi/Lo Screws)

7552605

$5.27

3

WASHER(10) (w/o Hi/Lo Screws)

7552605

$5.27

3

WASHER(10) (w/o Hi/Lo Screws)

7552605

$5.27

3

WASHER(10) (w/o Hi/Lo Screws)

7552605

$5.27

3

WASHER(10) (w/o Hi/Lo Screws)

7552605

$5.27

3

WASHER(10) (w/o Hi/Lo Screws)

7552605

$5.27

4

SCREW(10)

7515179

$2.39

4

SCREW(10)

7515179

$2.39

4

SCREW(10)

7515179

$2.39

5

BOLT(10)

7512232

$1.49

5

BOLT(10)

7512232

$1.49

6

SEAL,CLUTCHCOVER

5521301

$30.88

7

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$173.74

8

WASHER(10) Substituted by 7558301

7555776

Unavailable

8

WASHER(10) Substituted by 7558301

7555776

Unavailable

9

SCREW(10) (w/o Insert)

7512093

$1.49

9

SCREW (10) Substituted by 7512281 (w/Insert)

7515176

$3.85

10

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

11

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

12

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

13

SCREW(10) (w/o Insert)

7512094

$1.59

13

SCREW(10) (w/Insert)

7515186

Unavailable

14

CLIP,CLUTCH COVER(10)

7670051

$2.99

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

16

BOOT,CLUTCH INTAKE

5410421

$11.19

17

CLIP,OIL LINE RET.(10)

5432302

Unavailable

18

SCREW,(10)

7512024

$4.79

19

DUCT,INLET DOWN TUBE

5431006

$82.39

20

BOOT, INTAKE

5410509

$7.99

21

DUCT,INLET,TOP

5431794

Unavailable

22

SCREW(10)

7512084

$1.49

23

KIT,CVR,IN.CLUTCH (Incl. 9, 13, 28)

2200792

$294.99

24

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

25

WASHER(10)

7555935

$2.39

26

DUCT,AIR OUTLET,CLUTCH

5432303

Unavailable

27

RIVET,INTERLOCK,B(50)

7661638

$1.49

28

SCREW (w/o Insert)

7512098

$1.59

28

SCREW(10) (w/Insert)

7515187

$3.03

29

SEAL,COVER CASE

5410749

Unavailable

30

BRKT,RETAINER SEAL

5222877-067

Unavailable

31

Asm., Screw and Washer (See pg., Ref.)

-------

Unavailable
