- Partiron
- OEM Parts
- Polaris
- ATV
- ATV
- 1996
- XPRESS 300 - W969530
CARBURETOR (300) XPRESS 300 W969530 (4935923592D010)

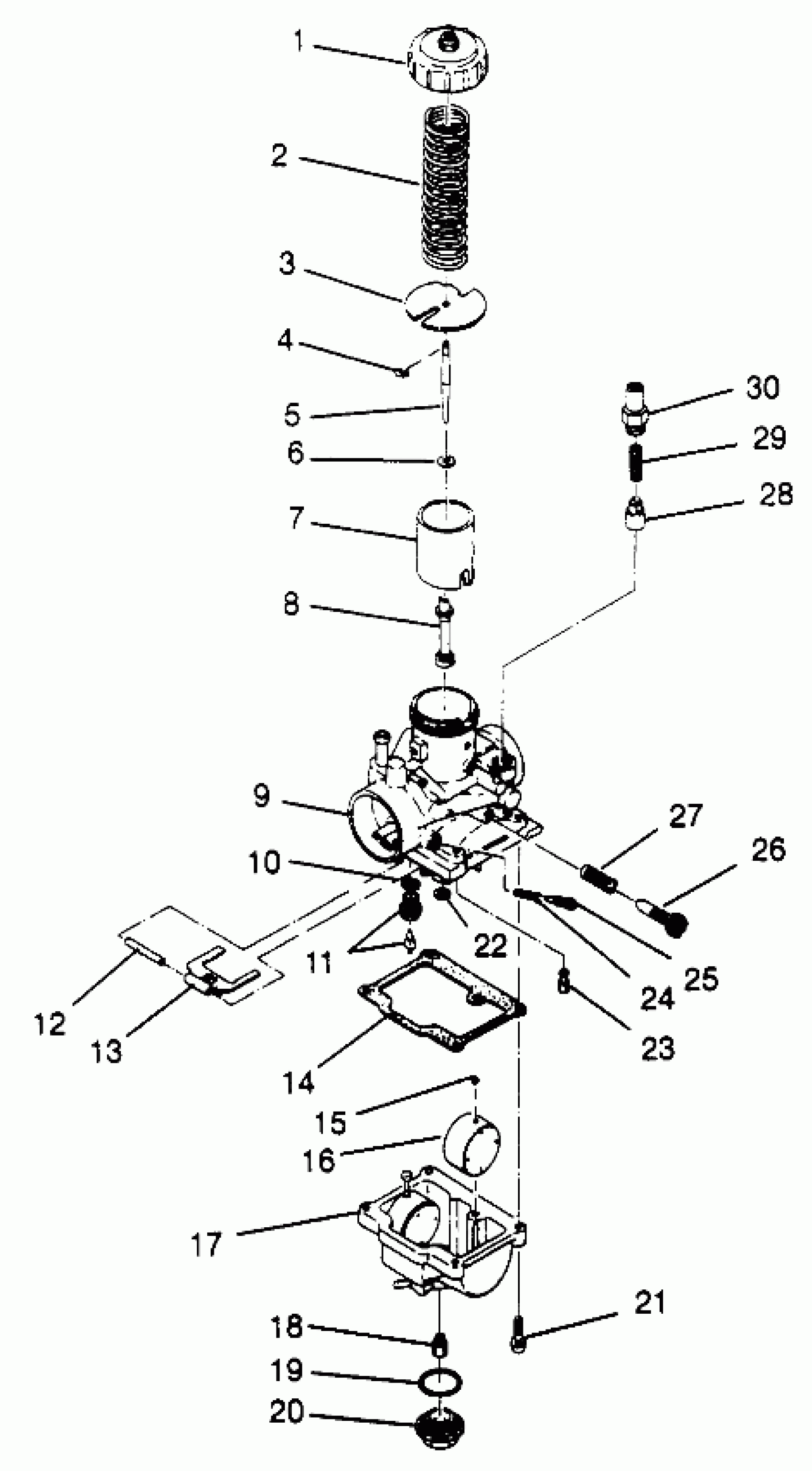

Polaris XPRESS 300 - W969530 CARBURETOR (300) XPRESS 300 W969530 (4935923592D010) Diagram
#
Description
Price
1
TOP ASM
3130184
$32.37
2
SPRING,THROTTLE
3130354
$28.32
3
PLATE,THROTTLE
3130002
$20.22
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE Substituted by 3130155 (5DP7-2)
3130356
$24.27
6
Washer
3130355
$7.19
7
VALVE,THROTTLE,(2.0) (2.0)
3130420
Unavailable
8
JET,NEEDLE(0-4),169 (0-4)
3130409
$39.99
9
CARBURETOR (Incl. 1-30)
3130498
Unavailable
10
PACKING(10)
3130017
$4.03
11
VALVE, NEEDLE (2.5)
3130360
$43.99
12
PIN, FLOAT
3130361
$8.89
13
ARM,FLOAT
3130018
$24.27
14
PACKING,FLOAT CHAMBER
3130020
$16.17
15
CAP,(10)
3130237
$4.03
16
FLOAT ASM
3130021
$40.46
17
BOWL,FLOAT,(250)
3130441
$99.99
18
JET,MAIN,HX.HD.#155 (#155)
3130114
Unavailable
19
O RING
3130239
Unavailable
20
BOLT,BANJO
3130321
$23.99
21
SCREW & WASHER(10)
3130025
$3.19
22
WASHER (10)
3130014
$1.59
23
JET,PILOT,#40(10) (#40)
3130067
$10.99
24
SPRING,AIR ADJUST
3130012
$8.89
25
SCREW,AIR
3130011
$19.99
26
Screw, Throttle Stop
3130324
$19.84
27
SPRING,THROTTLE ADJ.
3130010
$8.89
28
PLUNGER ASM, STARTER
3130328
$32.37
29
SPRING,PLUNGER
3130006
$8.89
30
Cap, Plunger
3130359
$14.56
