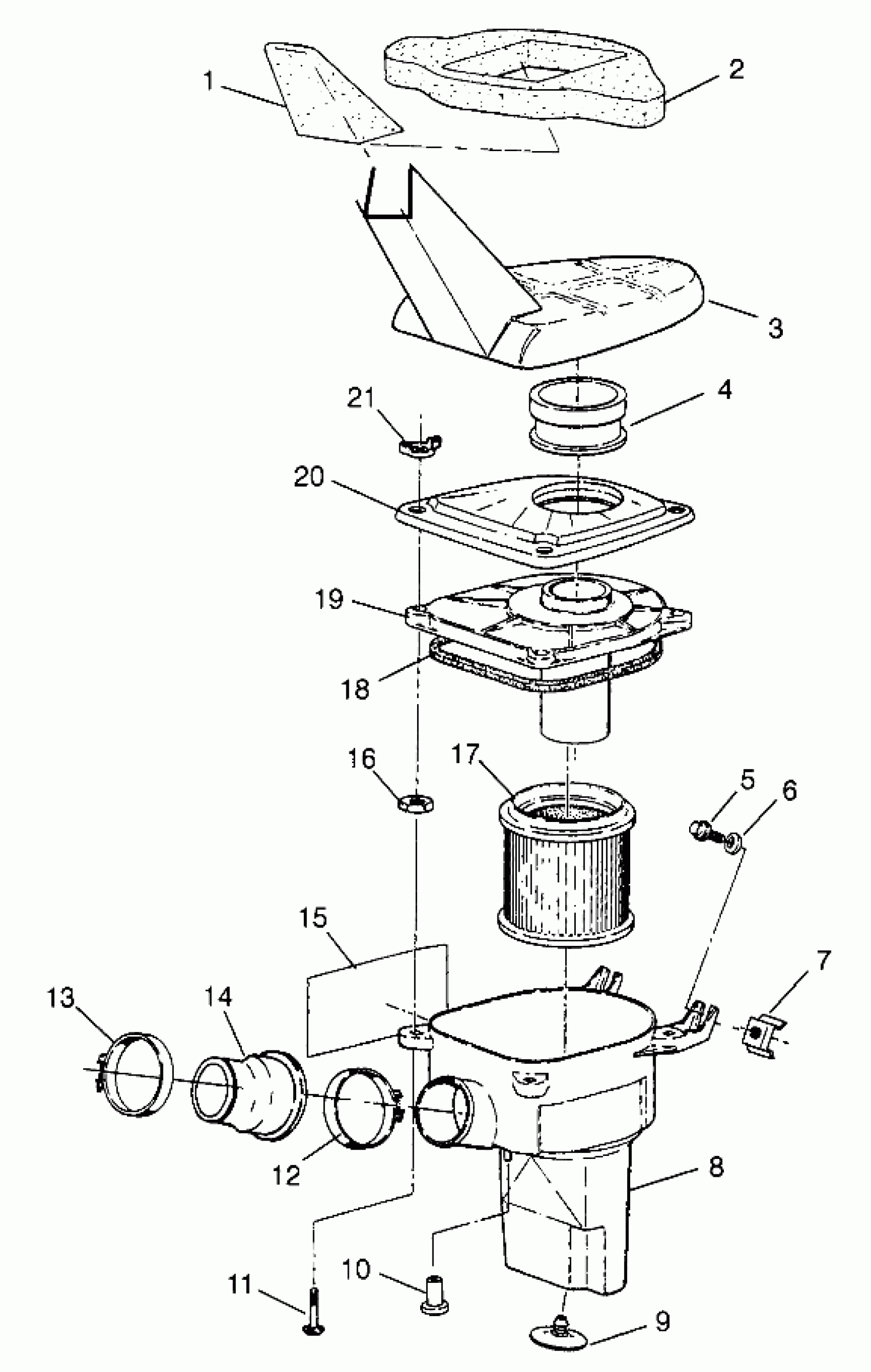

Polaris XPRESS 300 - W969530 AIR BOX (300) XPRESS 300 W969530 (4935923592B006) Diagram

#

Description
Price

1

FOAM, AIR FILTER (10)

5810444

$11.99

2

SEAL, FOAM

5810441

Unavailable

3

BOX, AIR SILENCER

5432245

Unavailable

4

BOOT, AIR SILENCER

5410506

Unavailable

5

BOLT(10)

7512246

Unavailable

6

WASHER,WROUGHT(10)

7558302

$1.59

7

NUT, SPEED(10)

7670060

$3.99

8

BOX, AIR INTAKE (Incl. 15)

5431124

Unavailable

9

VALVE, UMBRELLA

5410549

Unavailable

10

BUSHING

5410529

Unavailable

11

BOLT-CARRIAGE(10)

7512275

$3.99

12

CLAMP(10)

7080140

Unavailable

13

CLAMP,BAND,NARROW

7080413

$3.19

14

BOOT,CARB,30MM

5411159

Unavailable

15

TAPE, FOIL

5810310

Unavailable

16

PALNUT(10)

7670080

$4.79

17

FILTER, AIR

7080369

$27.99

18

SEAL,COVER,AIR

5410510

Unavailable

19

COVER,AIR INTAKE

5430884

Unavailable

20

RETAINER,COVER

5220980

Unavailable

21

NUT,WING(10)

7542127

$1.49
