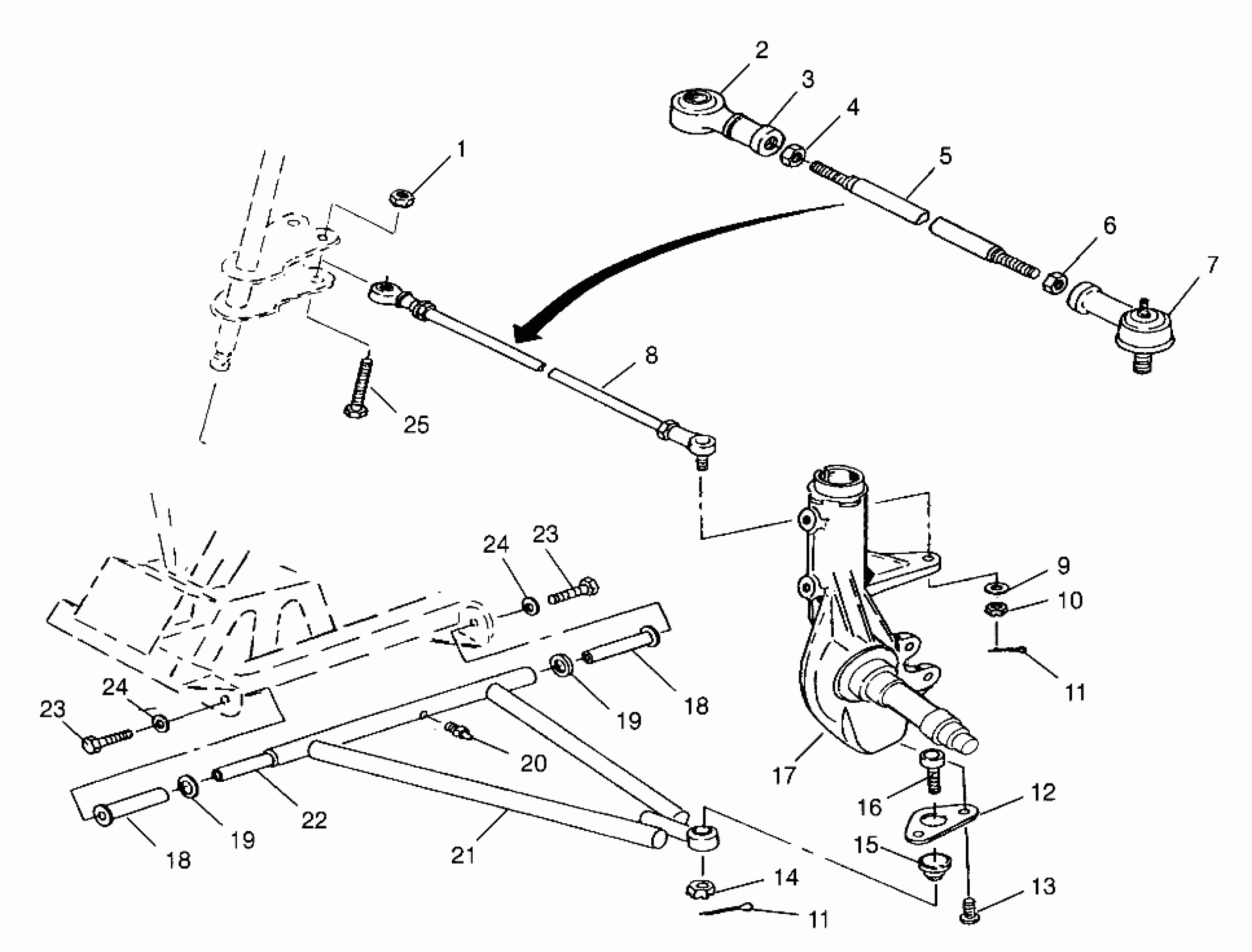

Polaris XPRESS 300 - W969530 A-ARM/STRUT MOUNTING XPRESS 300 W969530 and XPRESS 400 W969540 (4935923592C003) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

BOOT, SEAL, ROD END

5410540

$7.19

2

ROD END ASM,/SEAL BOOT (Incl. 3)

1822179

$69.99

3

ROD END, RH Substituted by 1822179

7060149

Unavailable

4

NUT HEX(10)

7542401

$2.39

5

ROD, TIE

5020745

$48.87

6

NUT, LH, 10 MM.(10)

7546902

Unavailable

7

ROD END,LH,W/FTG,10 MM.

7060171

$55.99

8

TIEROD ASM,RELUBE Substituted by 1822477

1822403

Unavailable

9

WASHER(10)

7555806

$1.49

10

NUT, CASTLE(10)

7546904

$4.79

11

PIN COTTER(10)

7661203

$1.49

11

PIN COTTER(10)

7661203

$1.49

12

BRACKET,BALLJOINT

5240717

Unavailable

13

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

14

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

15

Boot, Rubber

5410548

Unavailable

16

BALL JOINT Substituted by 7080673

7080364

Unavailable

17

Asm., Hubstrut, LH (See Pg., Ref.)

-------

Unavailable

17

Asm., Hubstrut, RH (See Pg., Ref.)

-------

Unavailable

18

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

18

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

19

BUSHING,A-ARM SPACER(10)

5020677

$10.39

19

BUSHING,A-ARM SPACER(10)

5020677

$10.39

20

ZERK,FITTING,THREADED(10)

7080433

$1.49

21

KIT,A-FRAME,LH Substituted by 2201601

2200560

Unavailable

21

KIT,A-FRAME,RH Substituted by 2201602

2200561

Unavailable

22

Shaft, A-Arm

5020681

Unavailable

23

BOLT(10) Substituted by 7512492

7515458

Unavailable

23

BOLT(10) Substituted by 7512492

7515458

Unavailable

24

WASHER(10)

7552603

$1.49

24

WASHER(10)

7552603

$1.49

25

BOLT(10)

7515415

$1.49
