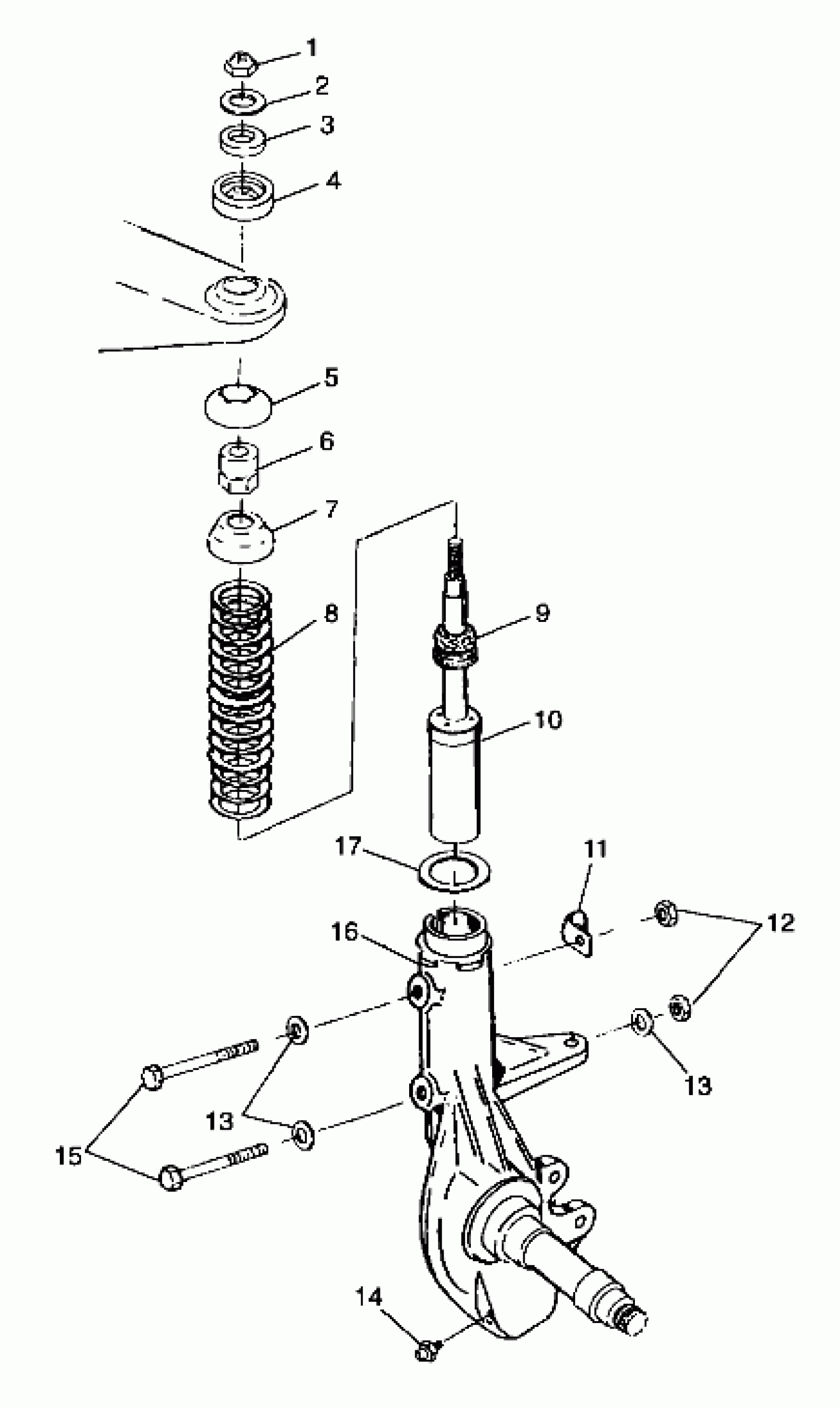

Polaris XPRESS 300 - A99CA28CA STRUT - A99CA28CA (4949444944b003) Diagram

NUT,FLEX LOC(10)

7542507

$3.99

WASHER(10)

7555749

$1.49

SPACER-RUBBER

5810291

$3.99

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

SPACER,THREADED

5130668

$27.99

RETAINER,SPRING,TOP

5220602

Unavailable

SPRING,COIL,FR,SHOCK,BLK.

7041375-067

$79.99

BUMPER,STRUT

5411468

Unavailable

STRUT,FR,STD,32MM Substituted by 2201460

7041755

$146.71

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

NUT FLEX-LOC(10)

7542303

$6.39

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

SUPPORT,RH,STRUT/SPINDLE

5131040

$417.76

SUPPORT,LH,STRUT/SPINDLE

5131039

Unavailable

WASHER-2.06X2.62X.105-Y

5211115

$3.99
