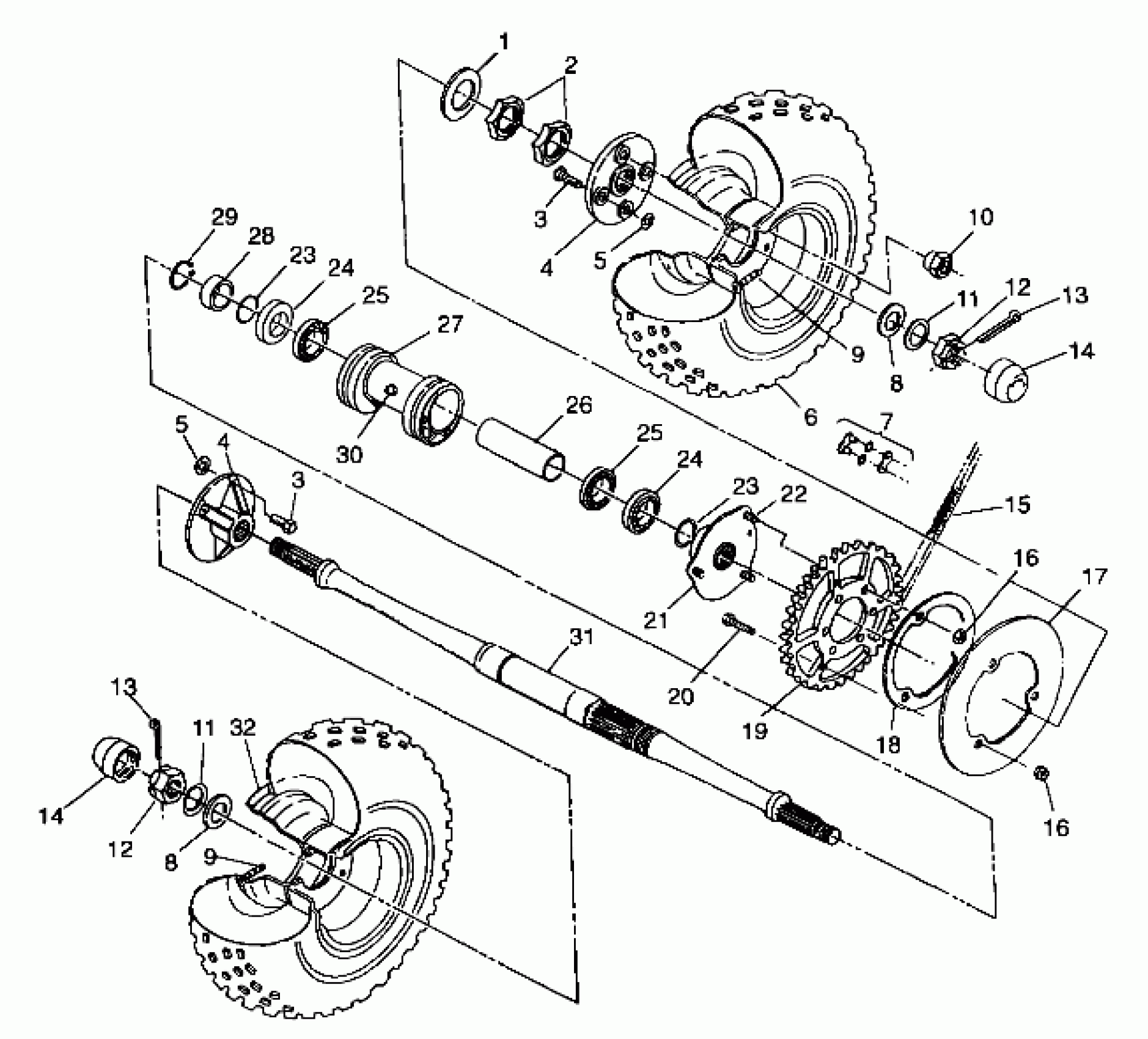

Polaris XPRESS 300 - A99CA28CA REAR WHEEL DRIVE - A99CA28CA (4949444944c003) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

BOLT, WHEEL(10)

7512673

$3.17

3

BOLT, WHEEL(10)

7512673

$3.17

4

KIT, MACH.HUB (Incl. 3-5,11,13)

2200341

$93.08

4

KIT, MACH.HUB (Incl. 3-5,11,13)

2200341

$93.08

5

PUSHNUT, BOLT(10)

7670081

$3.97

5

PUSHNUT, BOLT(10)

7670081

$3.97

6

TIRE,R(24X11-10) (24x11-10)

5410479

Unavailable

7

CONNECTOR LINK,CHAIN

3225026

$32.37

8

WASHER(10)

7555745

Unavailable

8

WASHER(10)

7555745

Unavailable

9

VALVE-RIM

1525017

$6.46

9

VALVE-RIM

1525017

$6.46

10

NUT, WHEEL(10)

7542714

$1.59

11

WASHER, CONE(10)

7555796

$7.94

11

WASHER, CONE(10)

7555796

$7.94

12

NUT, CASTLE(10)

7543005

Unavailable

12

NUT, CASTLE(10)

7543005

Unavailable

13

PIN, COTTER(10)

7661404

$4.76

13

PIN, COTTER(10)

7661404

$4.76

14

DUSTCOVER, HUB

5411164

$28.32

14

DUSTCOVER, HUB

5411164

$28.32

15

CHAIN, 86P (Incl. 7)

3224056-086

$145.70

16

NUT-LOCK(10)

7542439

$1.19

16

NUT-LOCK(10)

7542439

$1.19

17

GUARD,38T SPKT,BLK.ALUM.

5211585-067

Unavailable

18

SPACER-SPROCKET GUARD

5630586

Unavailable

19

SPROCKET, 38T

3222065

$113.99

20

BOLT(10)

7515540

$4.76

21

SPROCKET HUB ASM. (Incl. 22)

1520170

Unavailable

22

STUD(10)

7515513

$1.19

23

O RING, 1 5/16(10)

5410415

Unavailable

23

O RING, 1 5/16(10)

5410415

Unavailable

24

SEAL, REAR AXLE

3610013

Unavailable

24

SEAL, REAR AXLE

3610013

Unavailable

25

Bearing, Ball

3515501

$27.78

25

Bearing, Ball

3515501

$27.78

26

TUBE,BEARING SPACER

5010204

Unavailable

27

HOUSING, AXLE

5130663

Unavailable

28

SPACER,BEARING

5010206

Unavailable

29

RING, SNAP(10)

7710405

$4.76

30

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

31

AXLE, REAR

5020789

Unavailable

32

RIM-REAR, 8.5/10,SILVER

1520183-117

Unavailable
