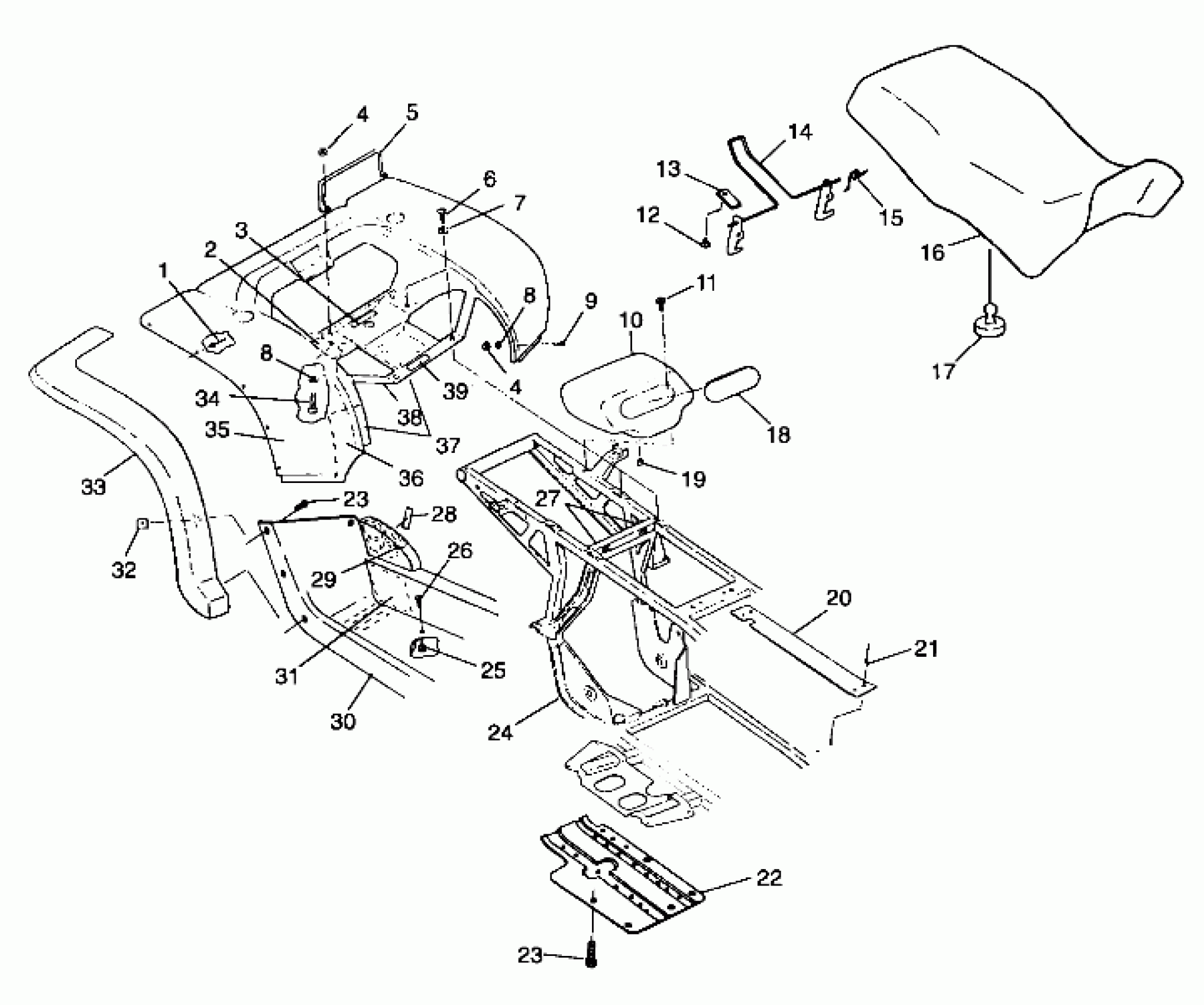

Polaris XPRESS 300 - A99CA28CA REAR CAB and SEAT - A99CA28CA (4949444944a007) Diagram

#

Description
Price

1

RIVET(50)

7661645

Unavailable

2

FOIL,REAR CAB,REAR

5811107

Unavailable

3

DECAL,CARB.INFO.

7073761

Unavailable

4

NUT(10)

7541925

$0.79

4

NUT(10)

7541925

$0.79

5

RETAINER,SEAT LATCH

5224592

Unavailable

6

SCREW(10)

7512242

$2.38

7

WASHER, FLAT(10)

7555859

$1.19

8

WASHER(10)

7555792

$4.76

8

WASHER(10)

7555792

$4.76

9

SCREW(10) Substituted by 7511989

7512085

Unavailable

10

TOOLBOX

5431786

$53.17

11

SCREW Substituted by 7555748

7517375

$1.19

12

BLIND RIVET(50)

7621403

$1.19

13

BRACKET,LEVER RETAINER

5211033

$34.99

14

LATCH,SEAT

1040387

$48.56

15

SPRING, LATCH

7041370

$9.52

16

FOIL,SEATBASE,LG.

5811104

Unavailable

16

FOIL,SEATBASE,SM.

5811105

$9.84

16

COVER,SEAT,LT.GRAY (w/Label)

2681747-143

$149.75

16

SEAT,LT GRAY (Incl. 12-17)

2682441-143

$445.22

17

Bumper, Rubber

5410414

$3.17

18

COVER, TOOLBOX

5431787

Unavailable

19

CAP,DRAIN

5410896

$5.65

20

GUARD-CLUTCH, BLK

5241403-067

$5.71

21

RIVET,INTERLOCK,B(50)

7661638

$1.19

22

GUARD,ROCK,BLK

5242016-067

Unavailable

23

BOLT(10)

7512232

$1.19

23

BOLT(10)

7512232

$1.19

24

MAINFRAME,XPRESS 300,BLK

1040558-067

$766.49

25

NUT-LOCK(10)

7542122

$1.19

26

SCREW Substituted by 7512279

7517376

$0.79

27

TAB-AIRBOX MOUNT

5241418

Unavailable

28

FOIL,FOOTWELL,RIB [No Longer Available]

5811401

Unavailable

29

FOIL,FOOTWELL,SLOTTED [No Longer Available]

5811399

Unavailable

30

FOOTWELL,RH,BLK.NYLON

5432374-070

Unavailable

30

FOOTWELL,LH Substituted by 5432056-070

5431771-070

$230.70

31

FOIL,FOOTWELL [No Longer Available]

5811402

Unavailable

32

NUT, SPEED(10)

7670057

$1.19

33

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

33

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable

34

SCREW(10)

7511930

$2.38

35

CAB,REAR,GEN IV,BON.BLUE

5432663-157

Unavailable

36

FOIL FOAM

5811111

Unavailable

37

FOIL,FR,REAR CAB

5811106

Unavailable

38

FOIL-FOAM,(6X1)

5811087

Unavailable

39

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable
