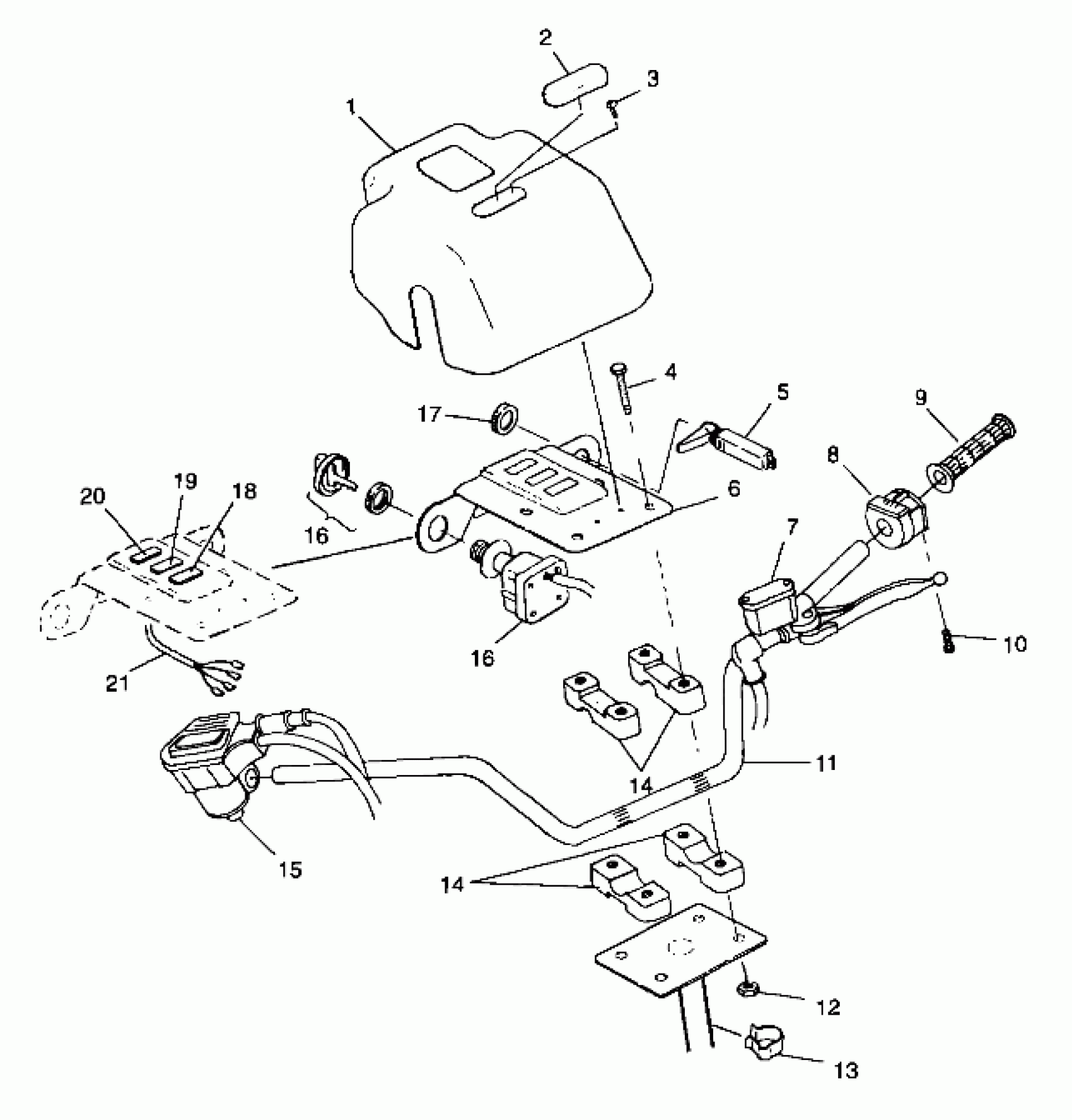

Polaris XPRESS 300 - A99CA28CA HANDLEBAR - A99CA28CA (4949444944b005) Diagram

#

Description
Price

1

PANEL,INST.,BLK

5432246-070

Unavailable

2

COVER-LOGO, BLK

5432247-070

Unavailable

3

SCREW,(10)

7512024

$4.79

4

Screw

7517216

Unavailable

5

KIT-CHOKE CONTROL

2200188

$24.27

5

CABLE,CHOKE CONTROL

7080579

$97.13

6

BRKT,INST.PANEL,BLK

5241397-067

$24.79

7

Asm., Master Cylinder (See Footnote) (See Controls - Master Cylinder/Brake Line Pg. B6 for Details)

-------

Unavailable

8

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

9

GRIP, HANDLEBAR

5431030

$24.27

10

SCREW

2010055

Unavailable

11

HANDLEBAR,TUBE,BLK

5224715-067

Unavailable

12

NUT-LOCK(10)

7542122

$1.49

13

CLIP,CABLE RETAIN,(10)

7080631

$6.29

14

BLOCK,H'BAR,(300)

5630629

$11.59

14

BLOCK,H'BAR,(300)

5630629

$11.59

15

THROTTLE CONTROL ASM

2010159

Unavailable

16

COVER, KEY Substituted by 5433534 (See Footnote) NOTE: Ignition Key may be ordered by using the four digit number on the key

5431964

Unavailable

16

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

16

COVER, KEY Substituted by 5433534 (See Footnote) NOTE: Ignition Key may be ordered by using the four digit number on the key

5431964

Unavailable

16

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

17

Nut

7080229

$19.99

18

PLUG,INDIC.HOLE

5430967

$5.65

19

INDIC"LOW OIL&HI-BEAM."

4040052

$31.99

20

INDIC"NEUT./REV."

4040054

$31.99

21

HARNESS,CONTROL PANEL

2460553

Unavailable
