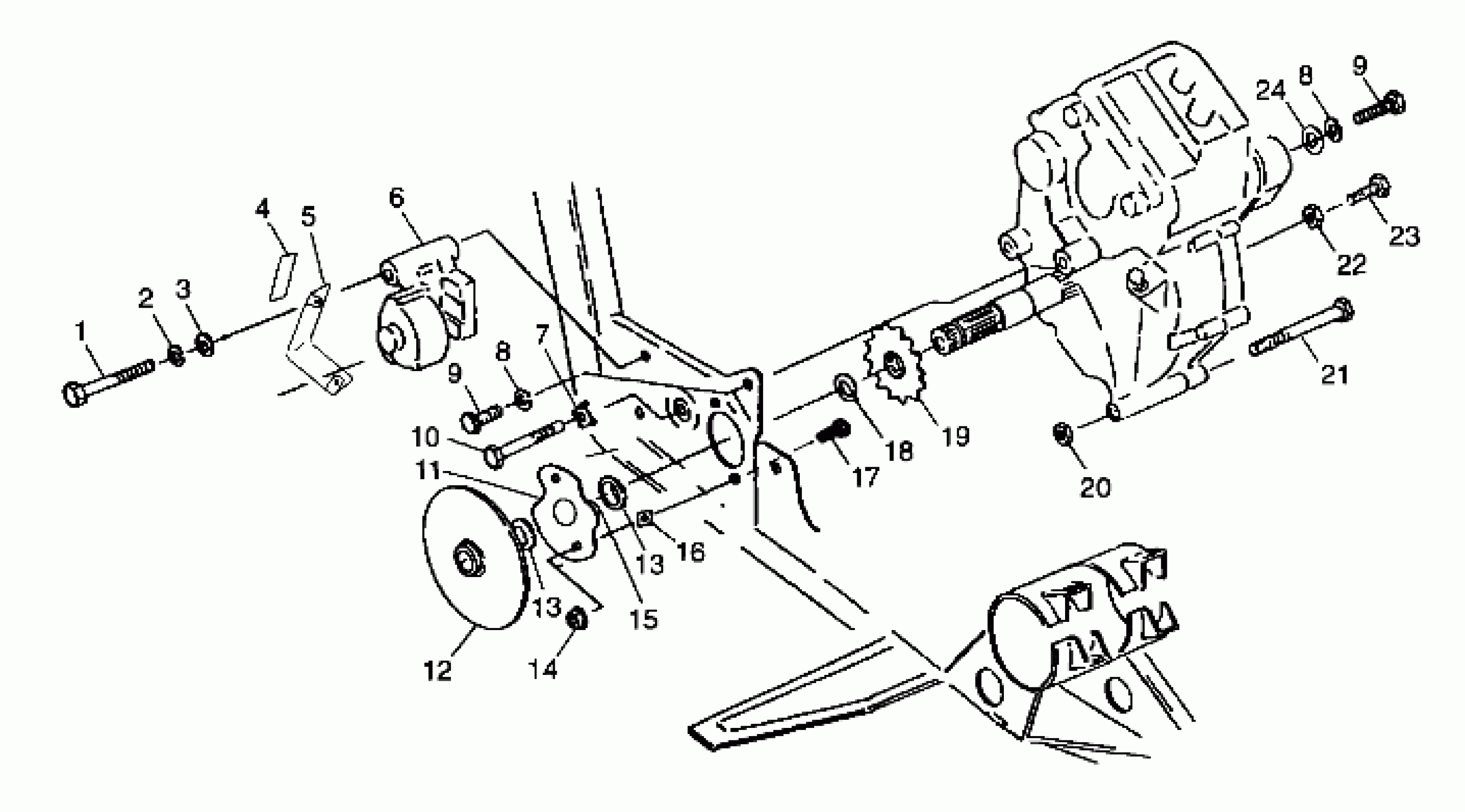

Polaris XPRESS 300 - A99CA28CA GEARCASE/BRAKE and CHAIN COVER MOUNTING - A99CA28CA (4949444944c001) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.59

2

LOCK WASHER(10)

7552901

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

DECAL,BRAKE SHIELD

7075339

Unavailable

5

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

6

CALIPER ASM,R.BRAKE

1910226

Unavailable

7

Plate, Bolt Lock (See Footnote) (See Swing Arm/Shock Mounting Pg. B11, Ref. 2)

-------

Unavailable

8

WASHER(10)

7552603

$1.49

8

WASHER(10)

7552603

$1.49

9

BOLT(10)

7515522

$3.99

9

BOLT(10)

7515522

$3.99

10

Bolt, Shoulder (See Footnote) (See Swing Arm/Shock Mounting Pg. B11, Ref. 19)

-------

Unavailable

11

BRG.ASM,O/P SHAFT (Incl. 16)

1590237

$84.99

12

DISC ASM,BRAKE

1910177

Unavailable

13

SEAL, BRAKE

3610026

$7.99

13

SEAL, BRAKE

3610026

$7.99

14

NUT,FLANGE LOCK(10)

7542449

$3.99

15

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

16

SPACER,(10) (.020)

5210764

Unavailable

16

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

16

SHIM,(.030) (.030) (See Footnote) Note: Use shims only with OutputShaft Bearing PN 1590237

5211517

Unavailable

17

BOLT,CARRIAGE(10)

7515484

Unavailable

18

RING,SNAP(10)

7710434

$3.99

19

SPKT, 12T

3221044

$43.99

20

NUT LOCK(10)

7542403

$3.99

21

BOLT(10)

7515472

$2.39

22

NUT(10)

7542404

$1.59

23

BOLT(10)

7515485

$3.03

24

WASHER(10)

7555806

$1.49
