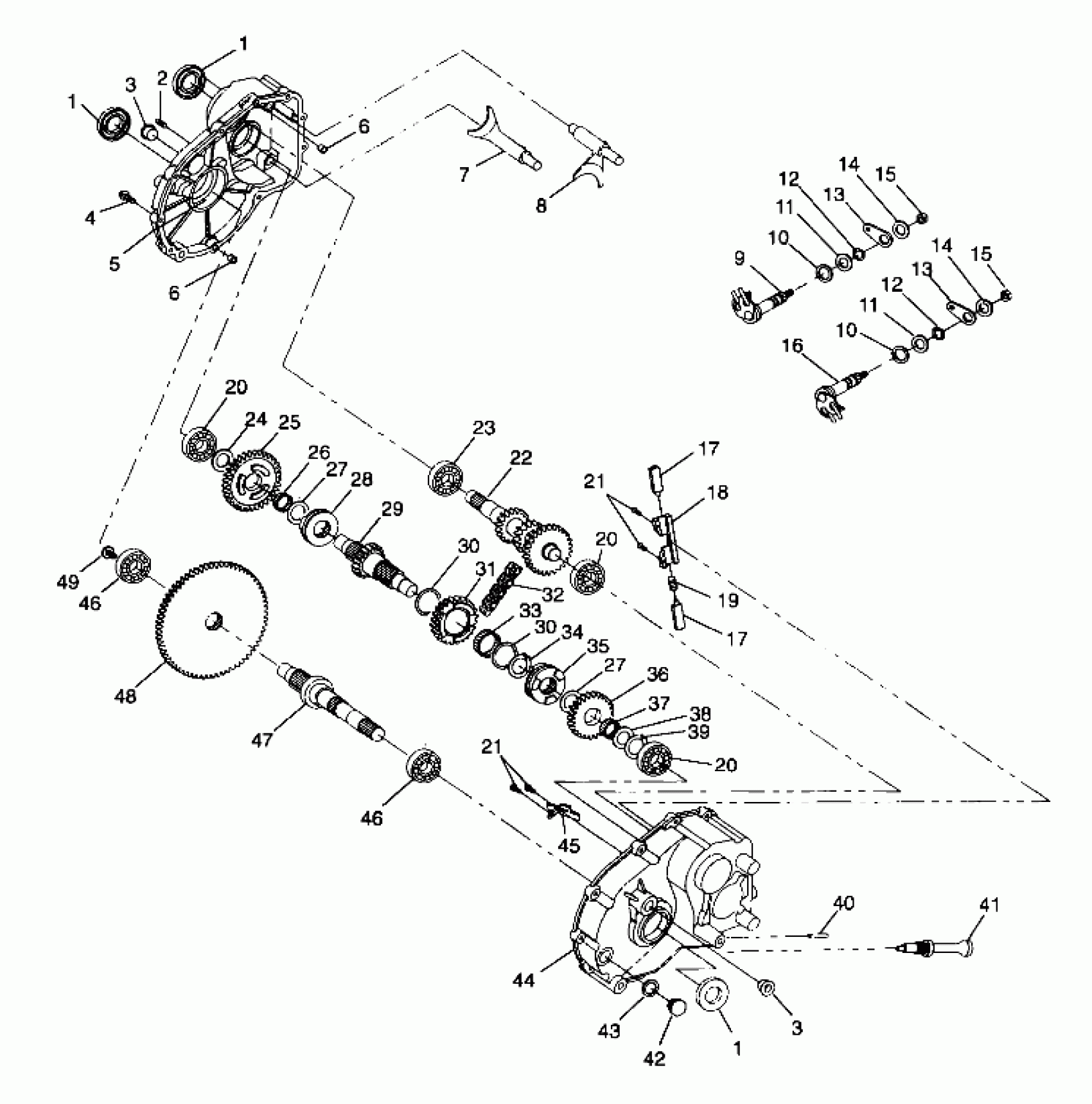

Polaris XPRESS 300 - A99CA28CA GEARCASE - A99CA28CA (4949444944c005) Diagram

#

Description
Price

-

GEARCASE ASM,PRD. (Incl. 1-49)

1341147

Unavailable

1

Seal

3233248

$30.88

1

Seal

3233248

$30.88

1

Seal

3233248

$30.88

2

STUD

3233025

Unavailable

3

BUSHING,PIVOT

3233024

Unavailable

3

BUSHING,PIVOT

3233024

Unavailable

4

Screw

3233026

$6.46

5

CASE, LH

3233002

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

7

SHIFTRAIL,LOW

3233022

Unavailable

8

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

9

SHAFT,LOW SHIFT

3233038

Unavailable

10

O-Ring

3233548

$27.99

10

O-Ring

3233548

$27.99

11

Washer

3233040

$9.59

11

Washer

3233040

$9.59

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

13

Bellcrank

3233153

$27.99

13

Bellcrank

3233153

$27.99

14

Washer

3233054

$6.46

14

Washer

3233054

$6.46

15

Nut

3233055

Unavailable

15

Nut

3233055

Unavailable

16

SHAFT,HI/REV,SHIFT

3233039

Unavailable

17

PIN

3233031

$32.11

17

PIN

3233031

$32.11

18

BRACKET

3233030

$21.43

19

Spring

3233032

$12.94

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

21

SCREW Substituted by 3233747

3233033

Unavailable

21

SCREW Substituted by 3233747

3233033

Unavailable

22

SHAFT, INPUT

3233122

Unavailable

23

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

24

WASHER

3233007

Unavailable

25

GEAR, 33T

3233125

Unavailable

26

BEARING,NEEDLE

3233009

$39.99

27

Washer

3233010

Unavailable

27

Washer

3233010

Unavailable

28

DOG,ENGAGEMENT,LOW

3233126

Unavailable

29

SHAFT,REVERSE

3233175

$369.99

30

WASHER

3233012

Unavailable

30

WASHER

3233012

Unavailable

31

SPROCKET, 24T

3233127

Unavailable

32

CHAIN,SILENT,34P (11W)

3233036

Unavailable

33

BEARING, NEEDLE

3233014

$43.99

34

RING,RETAINING

3233029

$5.59

35

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

36

GEAR, 25T

3233129

Unavailable

37

BEARING,NEEDLE

3233017

$35.99

38

Washer

3233176

$9.59

39

RING,RETAINING

3233177

$6.39

40

Vent

3233037

Unavailable

41

Dipstick

3233478

$23.99

42

Plug

3233448

$23.99

43

Washer

3233035

Unavailable

44

CASE, RH

3233003

Unavailable

45

DEFLECTOR,OIL

3233043

$13.19

46

BEARING

3233020

$47.99

46

BEARING

3233020

$47.99

47

SHAFT,OUTPUT

3233140

Unavailable

48

GEAR, 65T

3233130

$214.75

49

BUSHING,SPEEDO.DRIVE

5020741

$9.03
