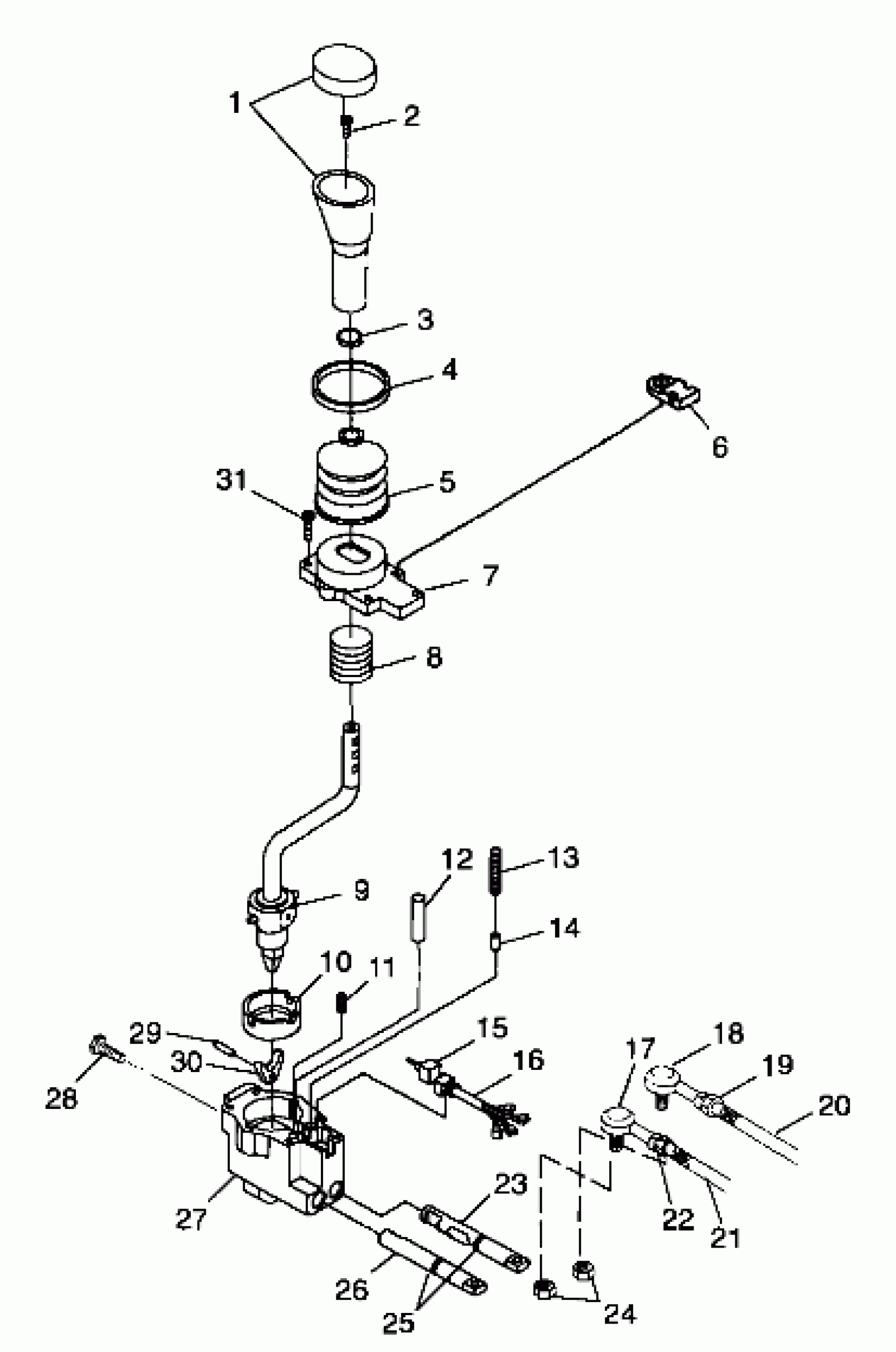

Polaris XPRESS 300 - A99CA28CA GEAR SELECTOR - A99CA28CA (4949444944c007) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR,300 (Incl. 1-16,23-27,29-31)

1341264

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR

3233368

$74.79

6

MOUNT,TIE ANCHOR

3233501

Unavailable

7

COVER,GEAR SELECTOR

3233213

Unavailable

8

SPRING,HOLDING

3233158

Unavailable

9

HANDLE,SUBASM,GS GEN IV

3233456

Unavailable

10

CUP,BEARING

3233063

$15.99

11

SPRING,CENTERING

3233083

Unavailable

12

PIN, STOP

3233062

Unavailable

13

SPRING,DETENT

3233069

Unavailable

14

BULLET,DETENT

3233060

$64.99

15

SWITCH,GEAR SELECTOR

3233215

Unavailable

16

STRAP, WIRE

3233090

$2.86

17

ROD END,RH,6MM.

7061014

$65.99

18

ROD END,LH,6MM.

7061013

$65.99

19

NUT(10)

7546702

$1.49

20

ROD,SHIFTLINK,LOW

5020936

Unavailable

21

ROD,SHIFTLINK,HI RANGE Substituted by 5020729

5020690

Unavailable

22

NUT(10)

7546701

$3.99

23

SLIDE,HIGH/REV

3233499

Unavailable

24

NUT(10) Substituted by 7546703

7546707

Unavailable

25

O-RING

3233076

$6.39

26

SLIDE,LOW

3233089

Unavailable

27

BODY,GEARSELECT

3233457

Unavailable

28

SCREW(10)

7515181

$2.39

29

PIN,INTERLOCK

3233070

Unavailable

30

INTERLOCK,BUTTERFLY

3233084

Unavailable

31

SCREW,MAGNIGARD COATED

3233498

Unavailable
