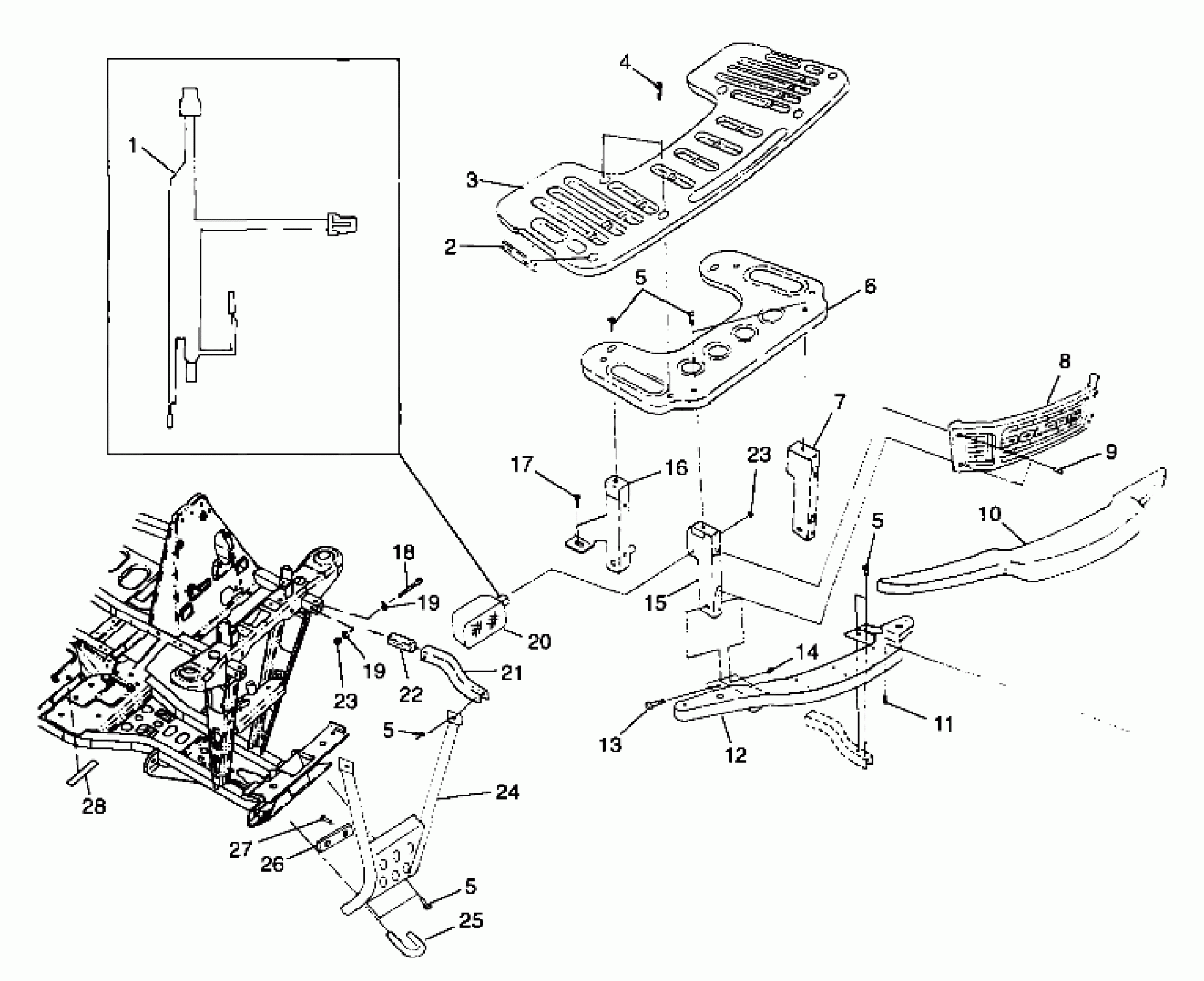

Polaris XPRESS 300 - A99CA28CA FRONT RACK and BUMPER MOUNTING - A99CA28CA (4949444944a009) Diagram

#

Description
Price

1

HARNESS,H/L,HI/LO

2460611

Unavailable

2

REFLECTOR AMBER

2670071

Unavailable

3

RACK ASM,FRONT Substituted by 2670180-070 (Incl. Reflector & Decal)

2670180

Unavailable

4

SCREW(10) Substituted by 7517685

7515194

Unavailable

5

SCREW(10)

7515399

$1.49

5

SCREW(10)

7515399

$1.49

5

SCREW(10)

7515399

$1.49

5

SCREW(10)

7515399

$1.49

6

MOUNT ASM,FR.RACK

1040565

Unavailable

7

RACK,LH,FRONT,BLK

1040471-067

$10.71

8

PANEL,GRILL,BLK

5432299-070

$53.59

9

Screw

7517396

$5.59

10

BUMPER,FRT.,BLK(2X4)

5431774-070

Unavailable

11

SCREW(10)

7515182

Unavailable

12

MOUNT,BUMPER,BLK(2X4)

1040461-067

Unavailable

13

BOLT(10)

7512130

$3.99

14

NUT-LOCK(10)

7542122

$1.49

15

RACK,RH,FRONT,BLK

1040472-067

$12.39

16

SUPPORT,LH,F.RACK Substituted by 1013210-067

1040554-067

$69.99

16

SUPPORT,RH,F.RACK Substituted by 1013211-067

1040555-067

Unavailable

17

BOLT(10)

7512232

$1.49

18

BOLT(10)

7515384

Unavailable

19

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

19

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

20

BULB,H/L,30/30 W.

4030061

Unavailable

20

H/L ASM,LH,30/30W

2431011

Unavailable

20

H/L ASM,RH,30/30W

2431012

Unavailable

21

EXTENSION,LH.FRAME,BLK.

5241398-067

$91.27

21

EXTENSION,RH.FRAME,BLK.

5241399-067

Unavailable

22

PLUG, FRAME

5810467

Unavailable

23

NUT-5/16-18 NYLOK-Y

7542324

$1.49

23

NUT-5/16-18 NYLOK-Y

7542324

$1.49

24

GUARD,BRUSH, BLK

1040470-067

Unavailable

25

HITCH,U-BOLT,BLK.

5241224-067

Unavailable

26

PLATE,BACK MT,BLK.

5211633-067

$14.87

27

SCREW(10)

7515547

Unavailable

28

DECAL,CAUTION,"FAN" (Located On Left Side)

7074819

Unavailable
