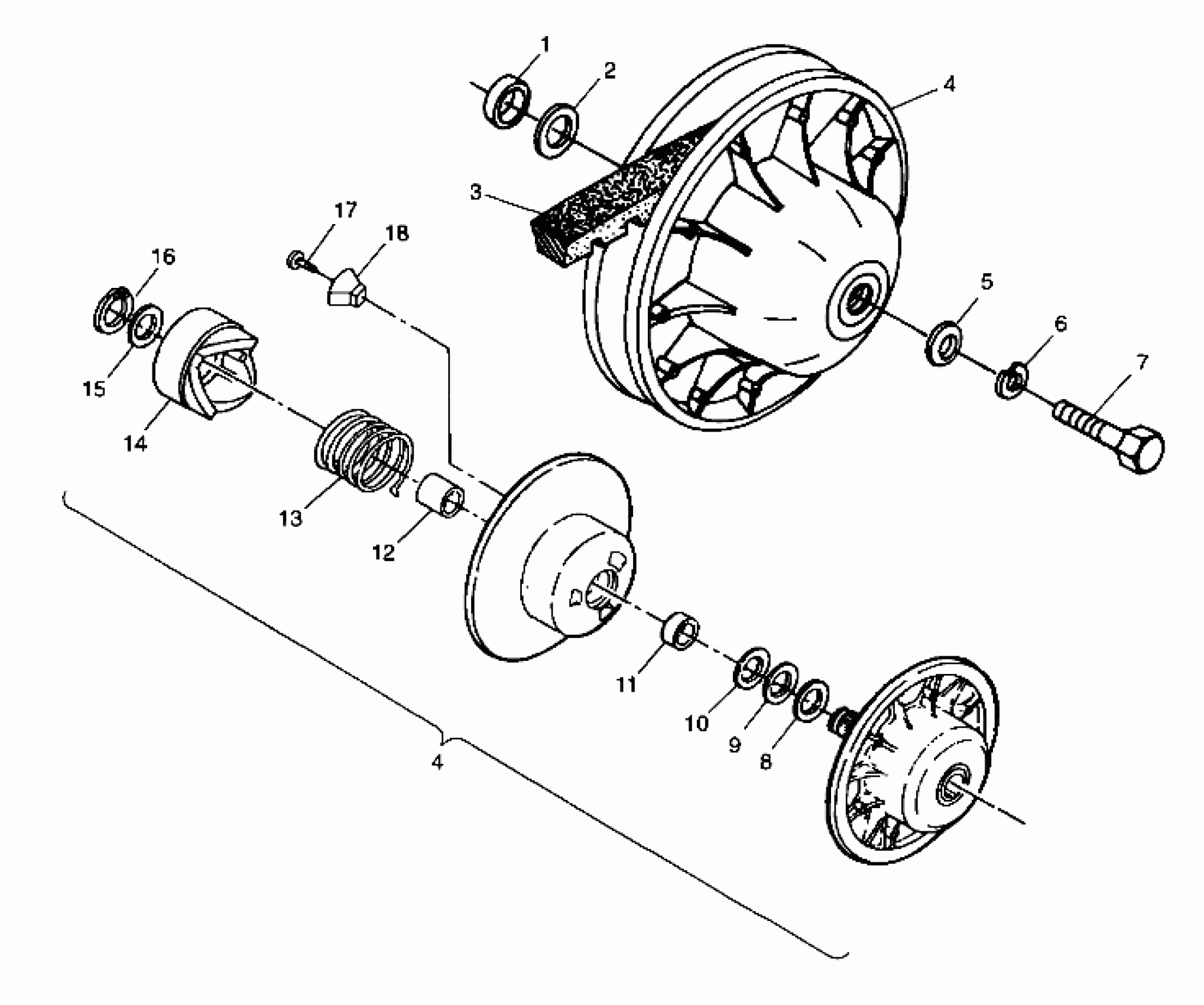

Polaris XPRESS 300 - A99CA28CA DRIVEN CLUTCH - A99CA28CA (4949444944b013) Diagram

#

Description
Price

1

BUSHING

7555990

$1.59

2

BUSHING(10)

7556401

$4.99

3

BELT,DRIVE,ATV,CLOSE TOL(5)

3211077

$63.99

4

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 8-18)

1322182

$614.99

4

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 8-18)

1322182

$614.99

5

WASHER, DOMED(10)

5220646

$2.39

6

LOCK WASHER(10)

7552901

$1.49

7

BOLT(10)

7515382

$2.39

8

WASHER(10) (.020 Spacer)

7555898

Unavailable

9

WASHER(10)

7556076

Unavailable

10

WASHER(10)

7556804

Unavailable

11

BUSHING, DRIVEN

3576504

$23.99

12

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

13

SPRING,CLUTCH,(RED)

7041198

$52.60

14

RAMP,STA.MACH,COMP MOD,HVY RET Substituted by 5132344

5131447

$77.21

15

SPACER(10)

5210752

$1.59

16

RING,RET.

7710448

$3.19

17

BOLT(10)

7511854

$1.49

18

BUTTON,RAMP

5430766

Unavailable
