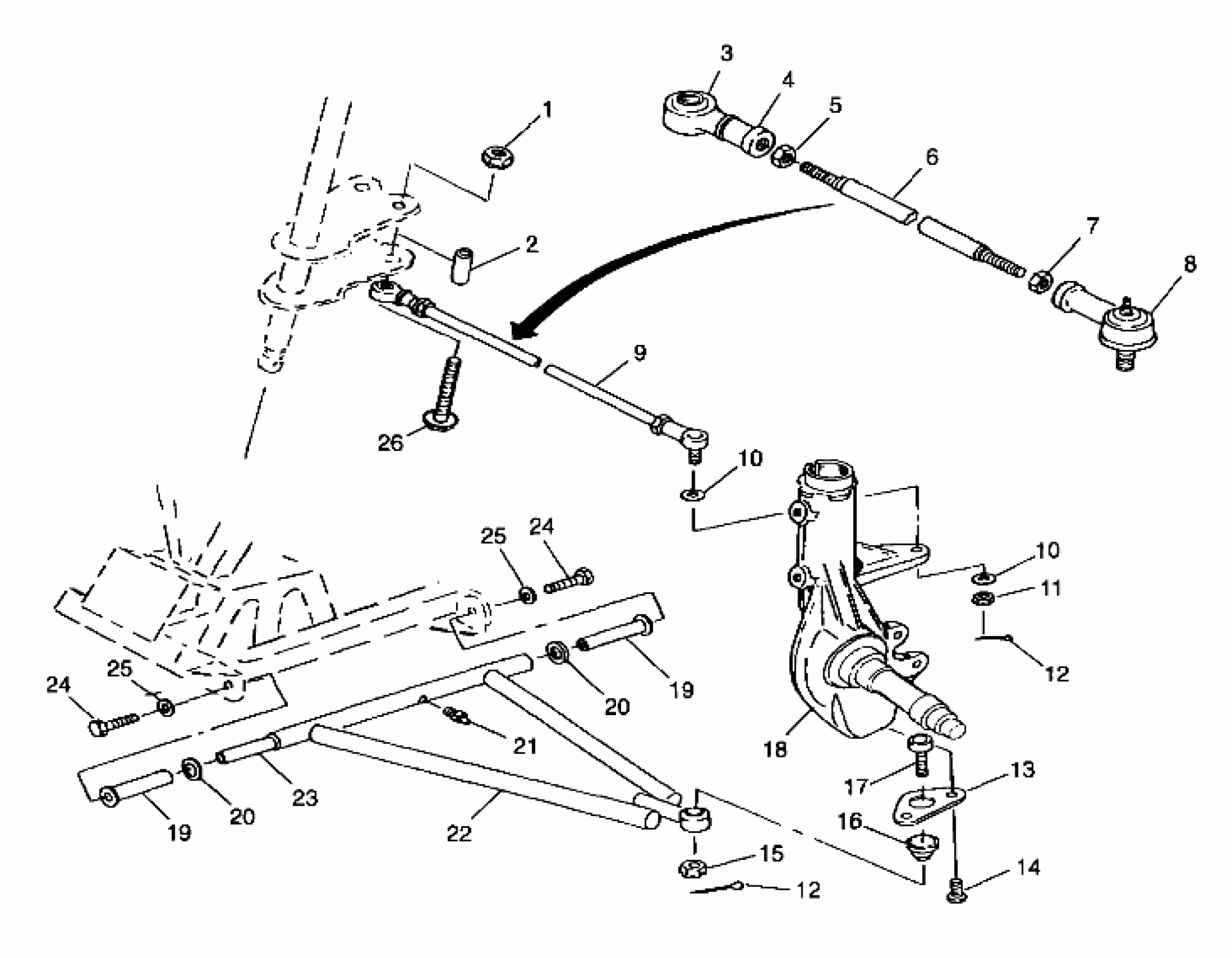

Polaris XPRESS 300 - A99CA28CA A-ARM/STRUT MOUNTING - A99CA28CA (4949444944b010) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

BUSHING

5333367

$6.63

3

SEAL,BOOT,ROD END,1/2 IN

5411291

Unavailable

4

ROD END,RH

7061034

$54.04

5

NUT-JAM(10)

7542711

$2.39

6

ROD,TIE

5020927

$39.99

7

NUT,LH,JAM(10)

7547028

$2.39

8

ROD END,LH Substituted by 2201743

7061033

$56.65

9

TIEROD ASM,1/2-20X14.00 Substituted by 2201742 (Incl. 3-8)

1820566

$125.46

10

WASHER(10)

7555806

$1.49

10

WASHER(10)

7555806

$1.49

11

NUT, CASTLE(10)

7546904

$4.79

12

PIN COTTER(10)

7661203

$1.49

12

PIN COTTER(10)

7661203

$1.49

13

BRACKET,BALLJOINT

5240717

Unavailable

14

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

15

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

16

Boot, Rubber

5410548

Unavailable

17

BALLJOINT,HI-ANGLE Substituted by 7080927

7080673

$76.89

18

Asm., Hubstrut (See Strut Pg. B3, Ref. 16)

-------

Unavailable

19

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

19

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

20

BUSHING,A-ARM SPACER(10)

5020677

$10.39

20

BUSHING,A-ARM SPACER(10)

5020677

$10.39

21

ZERK,FITTING,THREADED(10)

7080433

$1.49

22

KIT,A-FRAME,LH Substituted by 2201601 (Incl. 19-21,24,25)

2200560

Unavailable

22

KIT,A-FRAME,RH Substituted by 2201602 (Incl. 19-21,24,25)

2200561

Unavailable

23

Shaft, A-Arm

5020681

Unavailable

24

SCREW(10)

7512492

$1.49

24

SCREW(10)

7512492

$1.49

25

WASHER(10)

7552603

$1.49

25

WASHER(10)

7552603

$1.49

26

SCREW(10)

7515554

Unavailable
