Description

Price

1

NUT, FLANGE(10)

3083649

$3.99

2

BRUSH,COMPL.2-POLE *

3084406

Unavailable

3

STARTER MOTOR ASM. * (Incl. 1,2,4,5,8,9,12-17)

3085393

Unavailable

3

ASM-STARTING MOTOR (Incl. 1-5,8,9,12-18,20-24)

3087043

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

COVER,REAR,STARTER(300-400)

3085032

$82.39

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT,FLANGE Substituted by 3083568

3086782

Unavailable

8

O-RING

3084408

Unavailable

9

Bolt, Through

3084407

Unavailable

10

Bracket

3083650

Unavailable

11

BOLT,(10)

3081665

$3.19

12

Washer Set

3083754

$2.39

13

ARMATURE ASM. * (Incl. 14,15)

3084404

$207.99

14

O RING

3083934

Unavailable

15

BALL BEARING

3083777

$31.99

16

O RING

3083741

$9.37

17

COVER, FRONT (Incl. 16)

3085305

$123.02

18

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

19

BOLT&WASHER ASM.

3082038

$3.99

20

CLIP

3084409

$7.19

21

SPRING, RETURN

3084410

$2.47

22

ASM-GEAR SHAFT * (Incl. 18,20,21,23,24)

3087030

Unavailable

23

SPRING, WEIGHT

3084411

$15.67

24

CLIP

3084412

$9.59

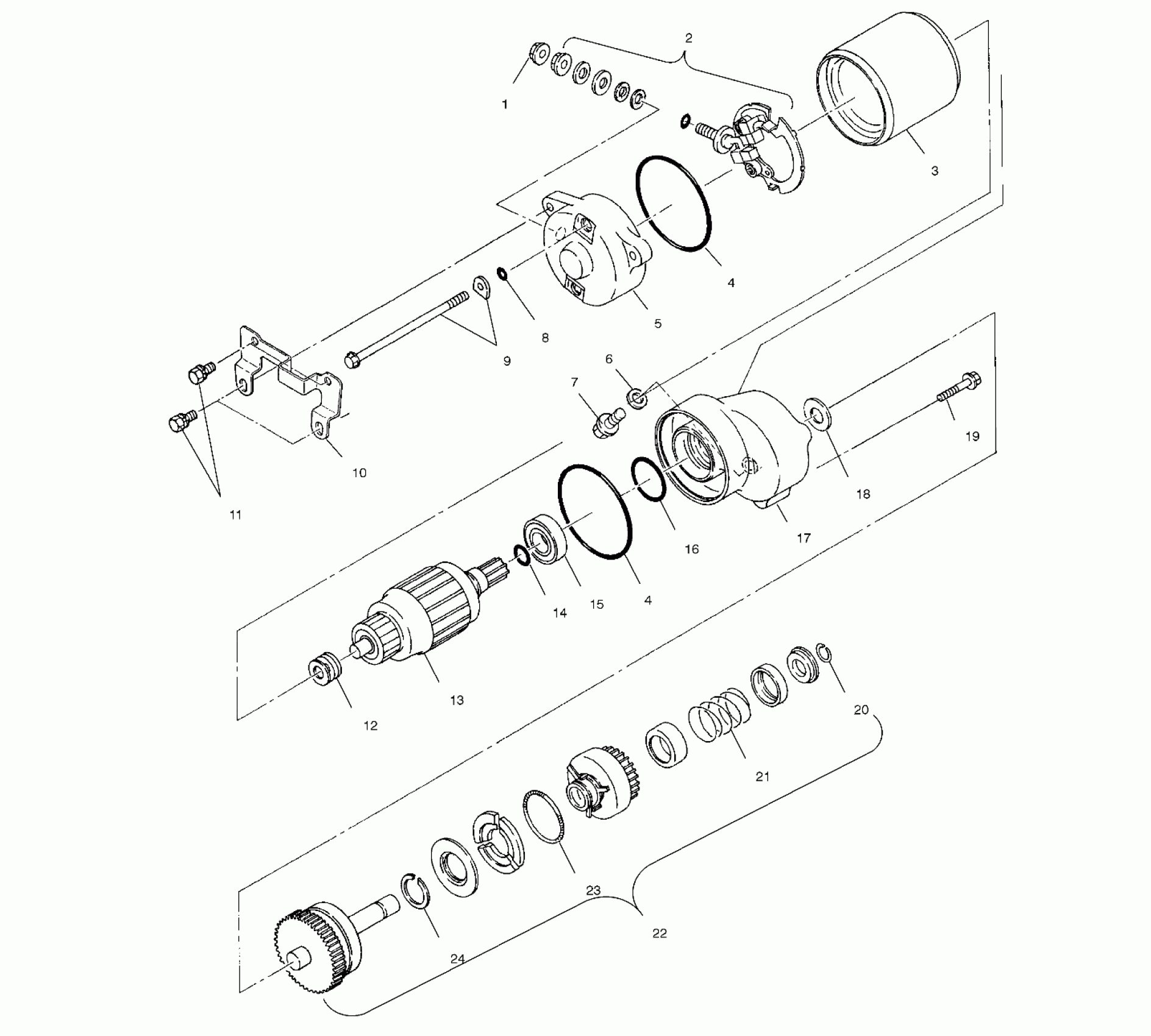

Polaris XPLORER - A01AG25CA STARTING MOTOR - A01AG25CA (4963866386C012) Diagram

NUT, FLANGE(10)

BRUSH,COMPL.2-POLE *

STARTER MOTOR ASM. * (Incl. 1,2,4,5,8,9,12-17)

ASM-STARTING MOTOR (Incl. 1-5,8,9,12-18,20-24)

RING, RUBBER

RING, RUBBER

COVER,REAR,STARTER(300-400)

GASKET, ALUM,(10) Substituted by 7555998

BOLT,FLANGE Substituted by 3083568

O-RING

Bolt, Through

Bracket

BOLT,(10)

Washer Set

ARMATURE ASM. * (Incl. 14,15)

O RING

BALL BEARING

O RING

COVER, FRONT (Incl. 16)

WASHER, GEARSHAFT Substituted by 7555908

BOLT&WASHER ASM.

CLIP

SPRING, RETURN

ASM-GEAR SHAFT * (Incl. 18,20,21,23,24)

SPRING, WEIGHT

CLIP
