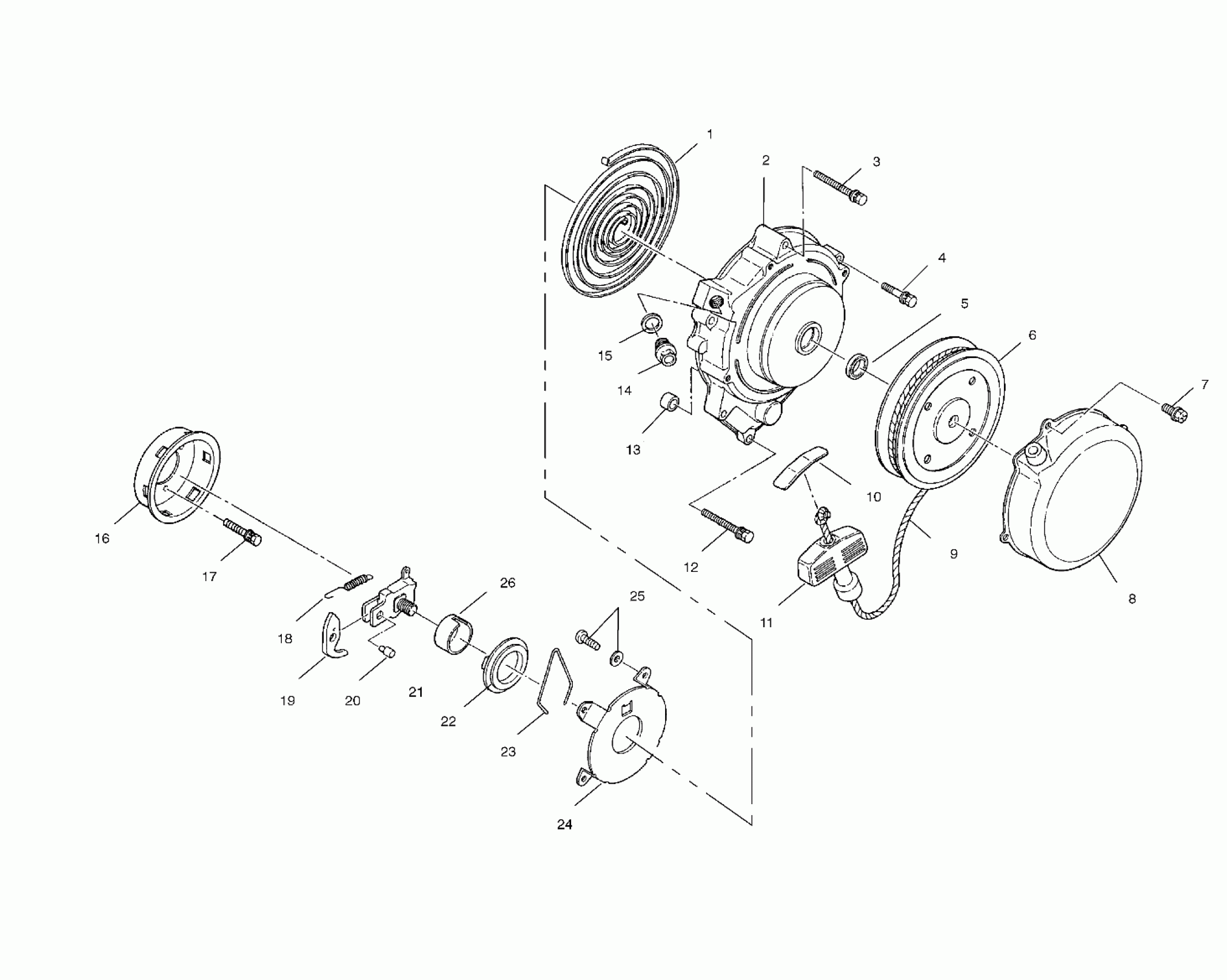

Polaris XPLORER - A01AG25CA RECOIL STARTER - A01AG25CA (4963866386C013) Diagram

#

Description
Price

1

Spring, Spiral

3083815

$45.59

2

CASE,STARTER,B UNIT

3083911

$271.99

2

STARTER,RECOIL,COMPL. (Incl. 1,2,5-11,18-26)

3083924

Unavailable

3

BOLT(10)

3082030

$3.97

4

BOLT&WASHER ASM.

3082228

Unavailable

5

Grommet

3083817

Unavailable

6

REEL, COMPL.

3083814

$97.13

7

Bolt, Flange

3083826

Unavailable

8

CASE,STARTER,COMPL.

3083914

Unavailable

9

ROPE,100 FT,NYL.STARTER

2870621

Unavailable

9

ROPE ASM. Substituted by 2870621 (Incl. 9-11)

3083828

Unavailable

10

Cap, Knob

3083660

Unavailable

11

Knob, Starter

3083659

Unavailable

12

BOLT&WASHER

3083729

$3.49

13

BUSHING, STARTER

3083669

Unavailable

14

PLUG

3086749

Unavailable

15

GASKET

3082956

$4.84

16

Pulley, Starting

3083915

Unavailable

17

BOLT,(10)

3081665

$3.19

18

Spring, Return

3083827

$11.59

19

Ratchet

3083819

Unavailable

20

Pin, Ratchet

3083820

Unavailable

21

Hook, Spring

3083818

$39.99

22

GUIDE,RATCHET

3083821

Unavailable

23

SPRING,FRICTION

3083912

$25.59

24

Case, Spring

3083925

Unavailable

25

SCREW & WASHER

3084176

Unavailable

26

GUIDE, COMPL.

3083913

Unavailable
