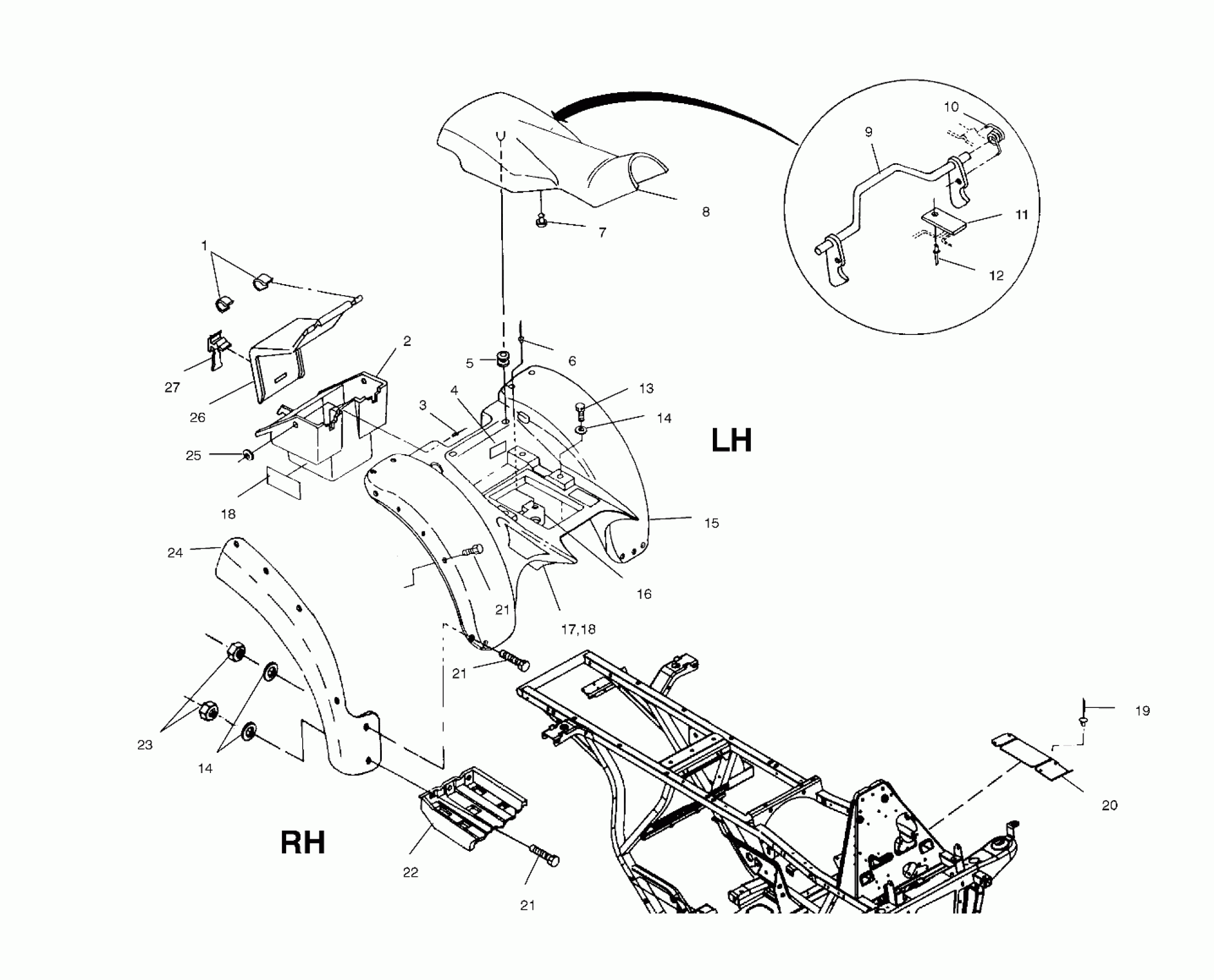

Polaris XPLORER - A01AG25CA REAR CAB - A01AG25CA (4963866386A004) Diagram

#

Description
Price

1

CLIP, LID HINGE(10)

7670050

Unavailable

2

BOX,TOOL COMP.

5430882

Unavailable

3

RIVET(50)

7621462

$1.49

4

DECAL-2 STRK,CARB/FILTER INFO

7079901

Unavailable

5

Grommet

5411042

Unavailable

6

RIVET(50)

7621472

$1.49

7

BUMPER-RUBBER

5412067

$3.99

8

SEAT,SABLE BROWN,ASM. (Incl. 7-11)

2682492-276

Unavailable

8

COVERING-SEAT,SABLE BROWN

2681723-276

Unavailable

9

LATCH,SEAT

1011558

Unavailable

10

SPRING, LATCH

7041158

Unavailable

11

BRACKET,LEVER RETAINER

5211033

$29.25

12

BLIND RIVET(50)

7621403

$1.49

13

SCREW(10)

7512242

$2.39

14

WASHER, FLAT(10)

7555859

$1.49

14

WASHER, FLAT(10)

7555859

$1.49

15

CAB,REAR,MOD,GEN II,E.B. GREEN

5433424-195

Unavailable

16

BRKT,R.HOLDDOWN

5220880

Unavailable

17

Foil, Rear Cab

5810957

Unavailable

17

Foil, Rear Cab, Small

5810991

Unavailable

18

TAPE, FOIL

5810310

Unavailable

18

TAPE, FOIL

5810310

Unavailable

19

RIVET-3/16-.090-.290

7661637

$1.49

20

GUARD-CLUTCH, BLK

5241403-067

Unavailable

21

BOLT, BLACK(10)

7512282

$1.49

21

BOLT, BLACK(10)

7512282

$1.49

21

BOLT, BLACK(10)

7512282

$1.49

22

Foot Pad (See Bumper and Rack Mounting Pg. A5, Ref. 31)

-------

Unavailable

23

NUT-LOCK(10)

7542122

$1.49

24

MUDFLAP-FULL,REAR,LH

5811944

Unavailable

24

MUDFLAP-FULL,REAR,RH

5811945

Unavailable

25

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

26

COVER-TOOL BOX,E.B. GREEN

5430769-195

$91.19

27

STRAP,TOOL COMPARTMENT

5410425

Unavailable
