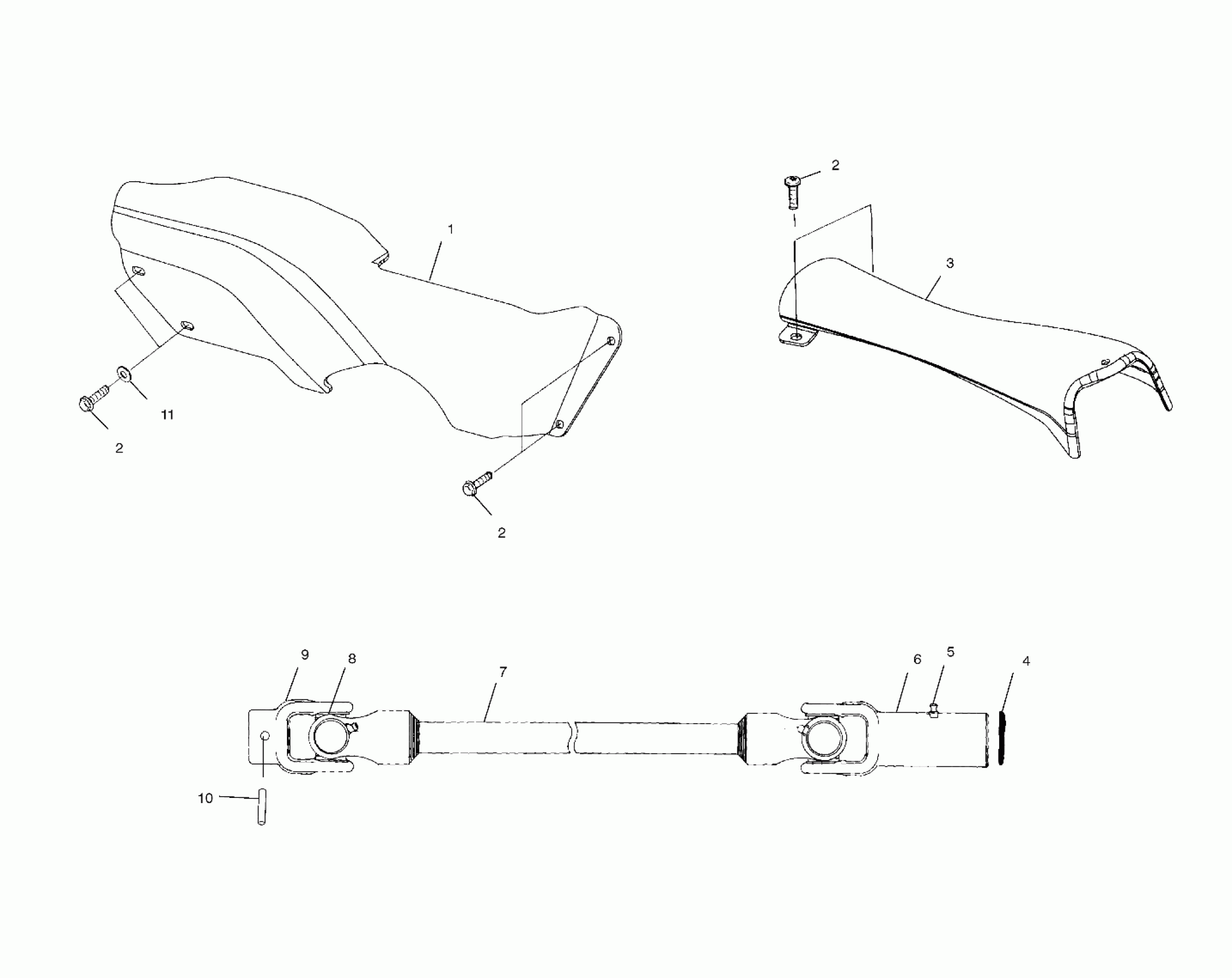

Polaris XPLORER - A01AG25CA PROP SHAFT - A01AG25CA (4963866386C003) Diagram

SHAFT,PROP,ASM. (Incl. 6-9)

1380169

Unavailable

GUARD,PROP SHAFT,SIDE

5433457

$95.19

SCR-1/4-20X3/4-TR/TX/TAP-M(10) (If built after 12/04/00)

7517916

$6.39

BOLT(10) (If built before 12/04/00)

7512232

$1.49

SCR-1/4-20X3/4-TR/TX/TAP-M(10) (If built after 12/04/00)

7517916

$6.39

BOLT(10) (If built before 12/04/00)

7512232

$1.49

SCR-1/4-20X3/4-TR/TX/TAP-M(10) (If built after 12/04/00)

7517916

$6.39

BOLT(10) (If built before 12/04/00)

7512232

$1.49

GUARD-PROP SHAFT,FRONT

5433154

$78.39

O-RING

5411092

$1.60

FITTING-LUBRICATION 1/4-28

7080424

$4.79

Yoke

3260131

$127.99

SHAFT-PROP,.94 DIA X 16.8,SVC

1350072

Unavailable

KIT,CROSS&BEARING

3260104

$43.99

Yoke

3260133

$111.99

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

WASHER(10) (If built before 12/04/00)

7558301

$1.49
