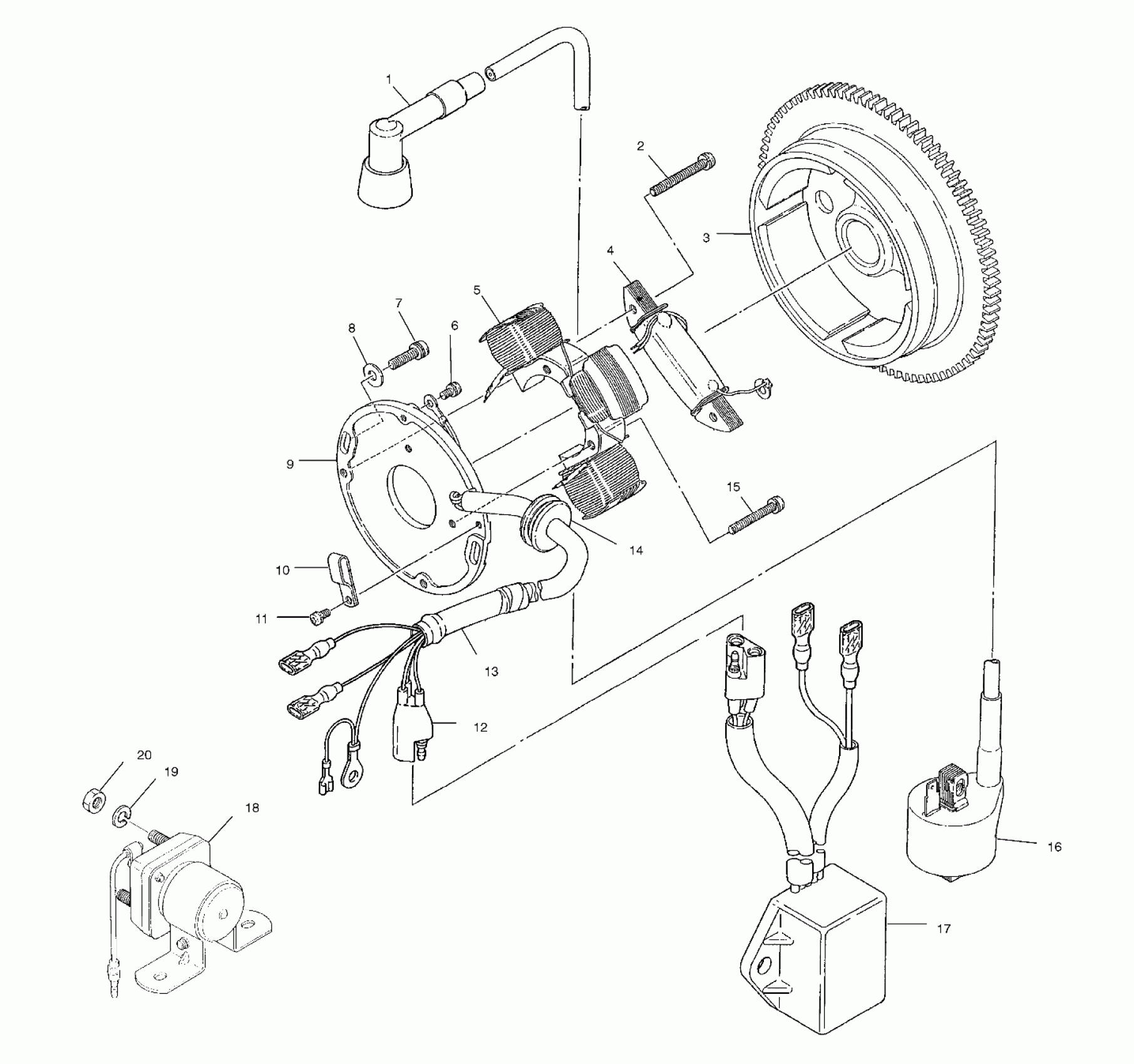

Polaris XPLORER - A01AG25CA MAGNETO - A01AG25CA (4963866386C011) Diagram

#

Description
Price

1

CAP SPARK PLUG,(10)

4020129

$28.32

2

SCREW & WASHER

3083423

$3.17

3

FLYWHEEL,W/RING GEAR

3083939

Unavailable

4

Coil, Exciting

3083422

Unavailable

5

COIL,LIGHT(STATOR 1)

3083976

Unavailable

6

SCREW&WASHER ASM(10)

3081256

$3.17

7

SCREW & WASHER

3086788

Unavailable

8

WASHER Substituted by 3083357

3086789

$2.38

9

Plate, Coil

3083634

$73.81

9

PLATE ASM. (Incl. 2,4,5,6,9-15)

3083979

Unavailable

10

Clamp

3081296

Unavailable

11

SCREW&WASHER,(10)

3081260

Unavailable

12

COUPLER

3083909

$23.81

13

HARNESS, WIRE (Incl. 12,14)

3083978

$123.99

14

Grommet

3083773

Unavailable

15

SCREW&WASHER ASM.(10)

3083736

$1.19

16

COIL, IGNITION *

3083923

Unavailable

17

CDI UNIT *

3083977

Unavailable

18

SWITCH,MAGNETIC *

3085521

$60.70

19

WASHER SPRING(10)

3080077

$2.38

20

Nut

3083073

$2.38
