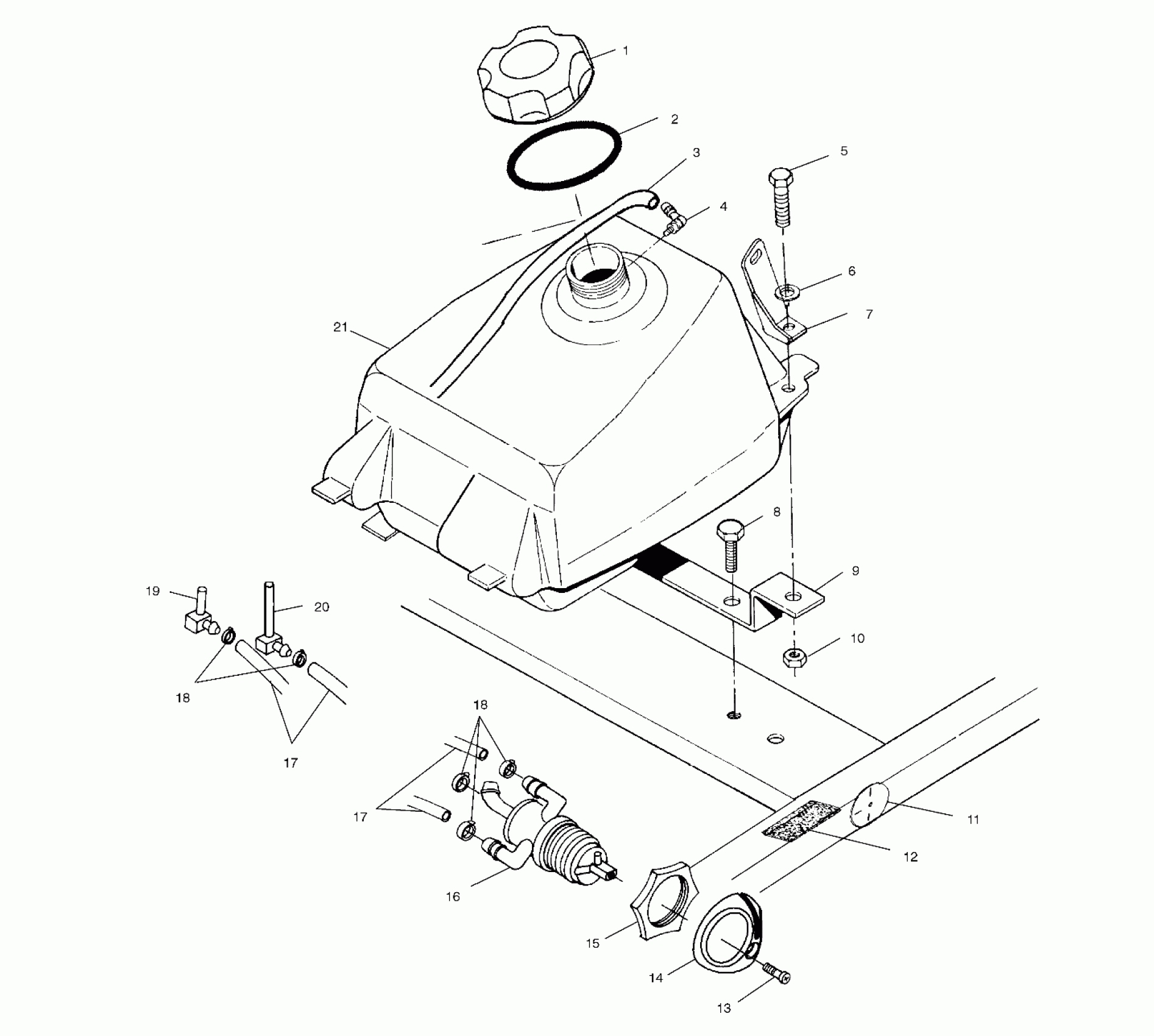

Polaris XPLORER - A01AG25CA FUEL TANK - A01AG25CA (4963866386A009) Diagram

#

Description
Price

1

CAP,GAS TANK (Incl. 2)

5433687

$20.22

2

GASKET,GAS CAP

5812123

$5.65

3

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

4

Vent, Tank

5431053

$19.99

5

SCREW(10)

7512310

$2.39

6

WASHER(10)

7555893

$1.49

7

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

7

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

8

SCREW(10)

7512208

$3.99

9

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

Decal - Fuel Lever (See Decals Pg A6, Ref. 12)

-------

Unavailable

12

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

13

SCREW(10)

7517505

$1.59

14

KNOB,FUEL VALVE CONTOURED,ATV

5433431

Unavailable

15

NUT,FUELVALVE,ATV

5432733

Unavailable

16

VLV,FUEL,3WAY,60DEG OUTLET

7052276

$44.51

17

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

17

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

FITTING,FUEL OUT,90DEG,RES,Z

7052148

Unavailable

20

ELBOW, MAIN

7052147

Unavailable

21

FUELTANK,90-,PERPENDICULR (Incl. 4,18)

1240082

Unavailable
