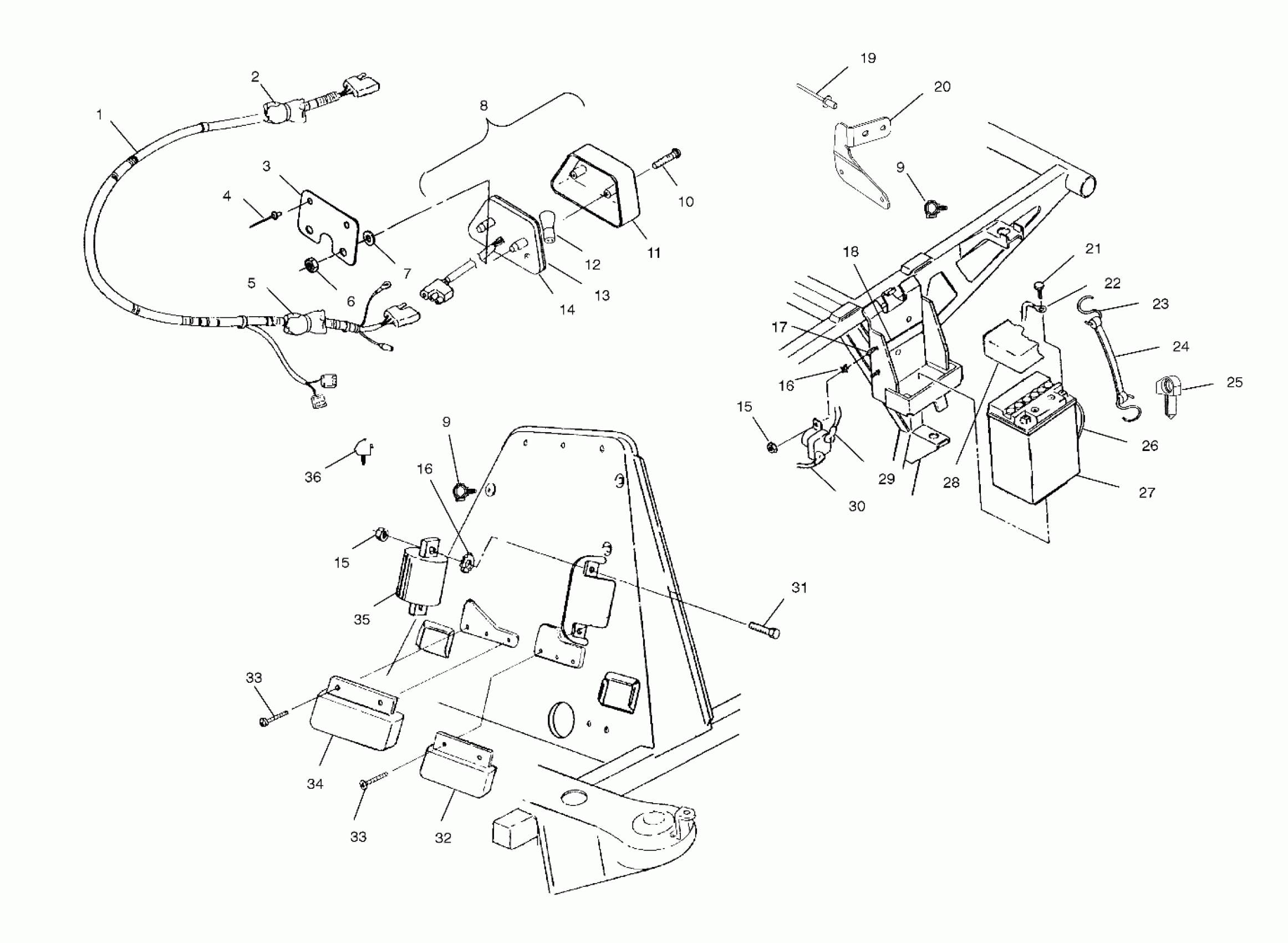

Polaris XPLORER - A01AG25CA ELECTRICAL/TAILLIGHT - A01AG25CA (4963866386C008) Diagram

#

Description
Price

1

HARNESS-MAIN WIRE,XPL 4X4

2460862

$331.99

2

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

3

ISOLATOR,TAILLIGHT

5211391-067

$13.39

4

RIVET(50)

7621470

$3.17

5

KIT,CKT.BRKR,20 AMP

2200593

$63.99

6

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

7

WASHER,NYLON(10)

7555916

$1.59

8

TAIL LIGHT ASM. (Incl. 11-6)

2432034

$55.99

9

CLIP,ROSEBUD

4020149

$6.39

9

CLIP,ROSEBUD

4020149

$6.39

10

Screw, Taillight

4032029

$4.79

11

LENS,TAILLIGHT

4032046

$32.37

12

BULB,TAILLIGHT

4030043

$6.46

13

GASKET,TAILLIGHT

4032045

$4.03

14

BACKING,TAILLIGHT

4032064

$83.99

15

NUT(10)

7541925

$1.49

15

NUT(10)

7541925

$1.49

16

WASHER(10)

7571602

$4.79

16

WASHER(10)

7571602

$4.79

17

SCREW(10)

7512027

$1.49

18

PAD-BATTERY

5810290

$7.27

19

BRKT,MOUNT TAILLIGHT,RVTD,BLK

5244261-067

Unavailable

20

RIVET,INTERLOCK,B(50)

7661638

$1.49

21

BOLT,BATT,KIT(SHORT) (Short)

2200361

$3.99

22

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

23

HOOK-BATT.H/D(10)

7010032

$1.59

24

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

25

CLIP,SILENCER,(10)

7670102

$2.39

26

TUBE,BATTERY VENT

5432077

Unavailable

27

Battery

4140006

$99.99

28

COVER,BATTERY

5431769

$14.39

29

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

30

CABLE,SOL/START,DBLBOOT

4010129

Unavailable

31

SCREW(10)

7512007

$3.99

32

RECTIFIER/REGULATOR,LR39-1

4060208

Unavailable

33

SCREW,(10)

7512024

$4.79

33

SCREW,(10)

7512024

$4.79

34

LIMITER-RPM,HUB,GROUND,LR83-1

4010188

Unavailable

35

Ignition Coil Complete (See Magneto Pg.C11, Ref. 16)

-------

Unavailable

36

CLIP-ROUTING

7670109

$2.39
