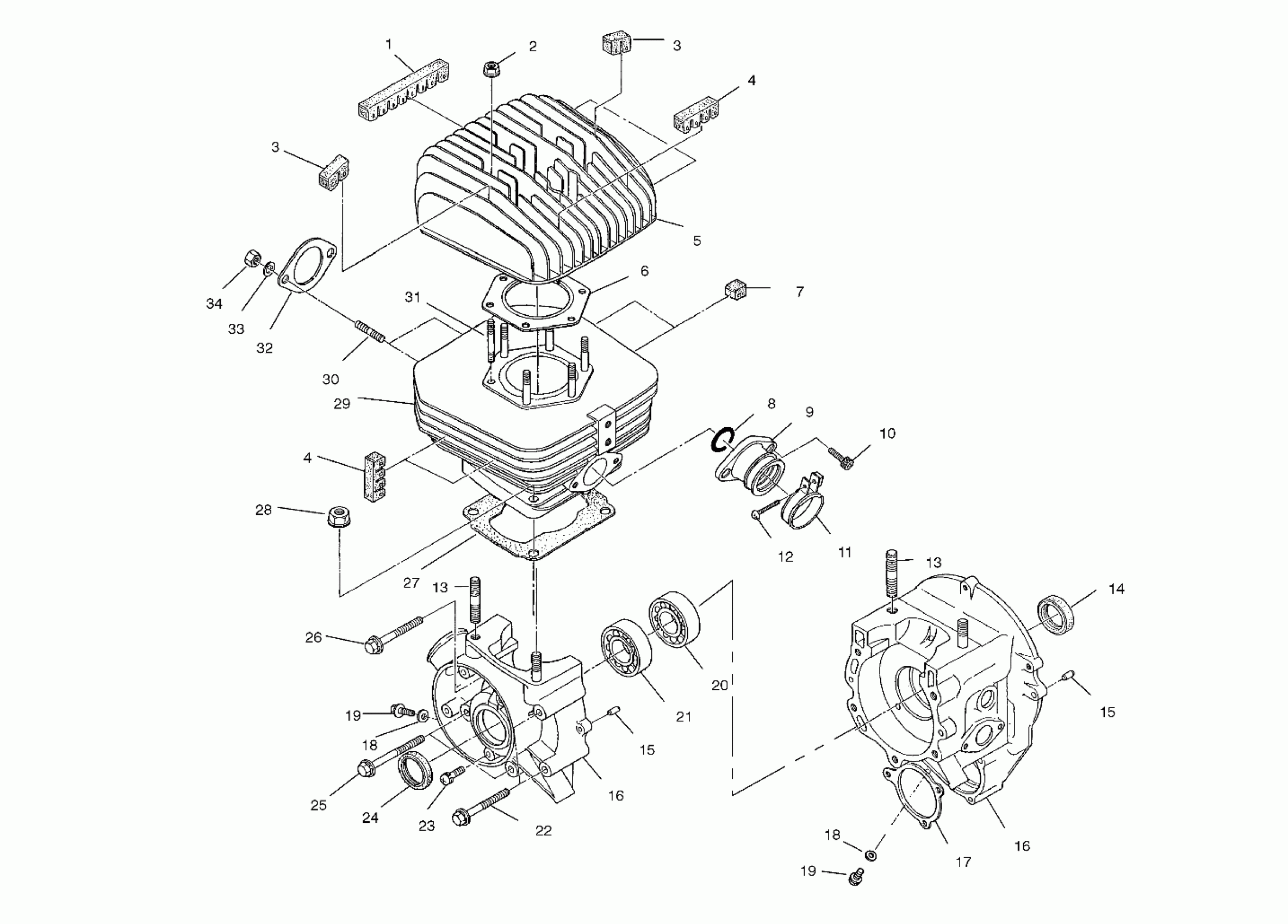

Polaris XPLORER - A01AG25CA CRANKCASE and CYLINDER - A01AG25CA (4963866386C009) Diagram

#

Description
Price

1

FIN DAMPER #3

3083931

Unavailable

2

NUT-FLANGE(10)

3082910

Unavailable

3

FIN DAMPER #4

3083932

$18.10

3

FIN DAMPER #4

3083932

$18.10

4

FIN DAMPER #1

3083929

Unavailable

4

FIN DAMPER #1

3083929

Unavailable

5

HEAD,CYLINDER

3086841

Unavailable

6

GASKET,HEAD,(CP)

3084015

Unavailable

7

FIN DAMPER #2

3083930

Unavailable

8

O-Ring

3084292

Unavailable

9

ADAPTER, CARB. * (Incl. 8)

3085013

$109.27

10

BOLT (SOCKET HEAD) Substituted by 3081330

3086786

$3.97

11

BAND-CARB MTG. (Incl. 12)

3082257

Unavailable

12

SCREW,(10)

3081497

$2.38

13

STUD Substituted by 3085713

3080746

$3.17

13

STUD Substituted by 3085713

3080746

$3.17

14

SEAL,OIL Substituted by 3082162

3080006

$40.46

15

PIN-DOWEL Substituted by 3080103

3086741

$7.14

15

PIN-DOWEL Substituted by 3080103

3086741

$7.14

16

ASM-CRANKCASE (Incl. 13-15,18-22,24-26)

3087048

$559.99

16

ASM-CRANKCASE (Incl. 13-15,18-22,24-26)

3087048

$559.99

17

GASKET, STARTER Substituted by 3085283

3084018

Unavailable

18

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

18

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

19

PLUG Substituted by 3083767

3086744

$5.22

19

PLUG Substituted by 3083767

3086744

$5.22

20

BEARING,BALL

3085890

Unavailable

21

Bearing, Ball

3084580

Unavailable

22

BOLT & WASHER Substituted by 3080739

3086784

$6.35

23

SCREW&WASHER ASM.

3081635

Unavailable

24

SEAL, OIL, PTO (PTO)

3084581

$28.32

25

BOLT&WASHER ASSY.

3083615

Unavailable

26

BOLT & WASHER Substituted by 3082096

3086783

$1.43

27

GASKET, CYLINDER Substituted by 3083733

3084016

$40.46

28

NUT-FLANGE(10)

3082911

$1.99

29

CYLINDER (Incl. 30,31)

3087049

Unavailable

30

STUD,(10)

3085326

Unavailable

31

Stud

3080283

$13.75

32

GASKET,EXHAUST Substituted by 3084439

3084017

Unavailable

33

WASHER LOCK ,(10)

3080530

$3.17

34

NUT Substituted by 3080285

3086787

Unavailable
