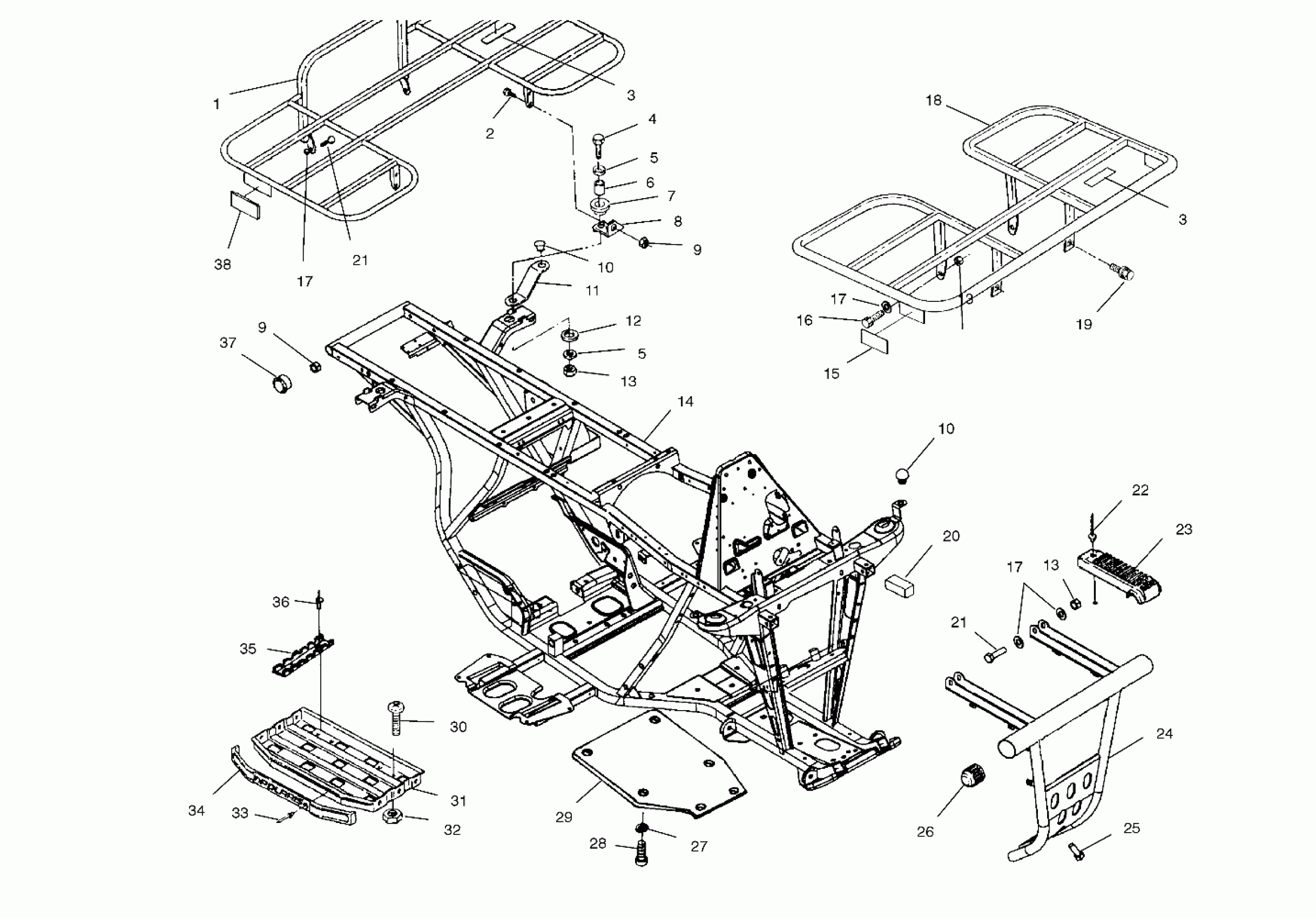

Polaris XPLORER - A01AG25CA BUMPER and RACK MOUNTING - A01AG25CA (4963866386A005) Diagram

#

Description
Price

1

RACK,REAR

1012876-067

Unavailable

2

BOLT,5/16-18X3/4

7512371

$4.79

3

PAD,RACK MOUNT

5810455

$3.19

3

PAD,RACK MOUNT

5810455

$3.19

4

SCREW-FLANGED(10)

7515304

$5.59

5

WASHER(10)

7555716

$1.59

5

WASHER(10)

7555716

$1.59

6

BUSHING-RES. MT.

5010192

$6.39

7

DAMPENER

5410241

Unavailable

8

BRKT,SUPPORT RACK,RH,BLK

5243469-067

Unavailable

8

BRKT,SUPPORT RACK,LH,BLK

5243468-067

Unavailable

9

NUT LOCK(10)

7542321

$1.49

9

NUT LOCK(10)

7542321

$1.49

10

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

10

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

11

SUPPORT,R.FENDER

5220902-067

$48.40

12

WASHER,RUBBER

5410436

$1.59

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

FRAME MAIN,XPLORER,BLK

1013383-067

Unavailable

15

REFLECTOR ASM,AMBER

2670134

$9.70

16

SCREW(10)

7512307

$3.99

17

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

18

RACK,FRT.BLK. (If built before 9/01/00)

2670135-067

Unavailable

18

WELDMENT-FRONT RACK,BLK (If built after 9/01/00)

2632290-067

Unavailable

19

SCREW,(10)

7517386

$1.49

20

PLUG, FRAME

5810467

Unavailable

21

BOLT(10)

7512329

$3.99

21

BOLT(10)

7512329

$3.99

22

RIVET(50) (If built before 9/01/00)

7621229

Unavailable

23

COVER,BRKT,BUMPER MT. (If built before 9/01/00)

5431023

$10.71

24

BUMPER,GEN2,XPL SP,BLK (If built before 9/01/00)

1013024-067

Unavailable

24

BUMPER,GEN 2,XPLORER,BLK (If built after 9/01/00)

1013402-067

Unavailable

25

SCREW(10)

7515399

$1.49

26

CAP,BUMPER,FR,BLK.

5431013-067

Unavailable

27

WASHER, FLAT(10)

7555859

$1.49

28

SCREW(10)

7515179

$2.39

29

GUARD,ROCK

5432763

$87.99

30

BOLT, BLACK(10)

7512282

$1.49

31

FOOTPAD,CDS,STEEL,BLK

1013249-067

$63.79

32

NUT-LOCK(10)

7542122

$1.49

33

RIVET,(50)

7661825

$1.49

34

Trim, Footrest

5431484

Unavailable

35

BRKT,HEEL CLEAT,BLK

5242525-067

$16.47

36

RIVET(50)

7621472

$1.49

37

PLUG,ENDCAP,RIBBED

5432831

$5.59

38

REFLECTOR ASM,RED

2670133

$5.75
