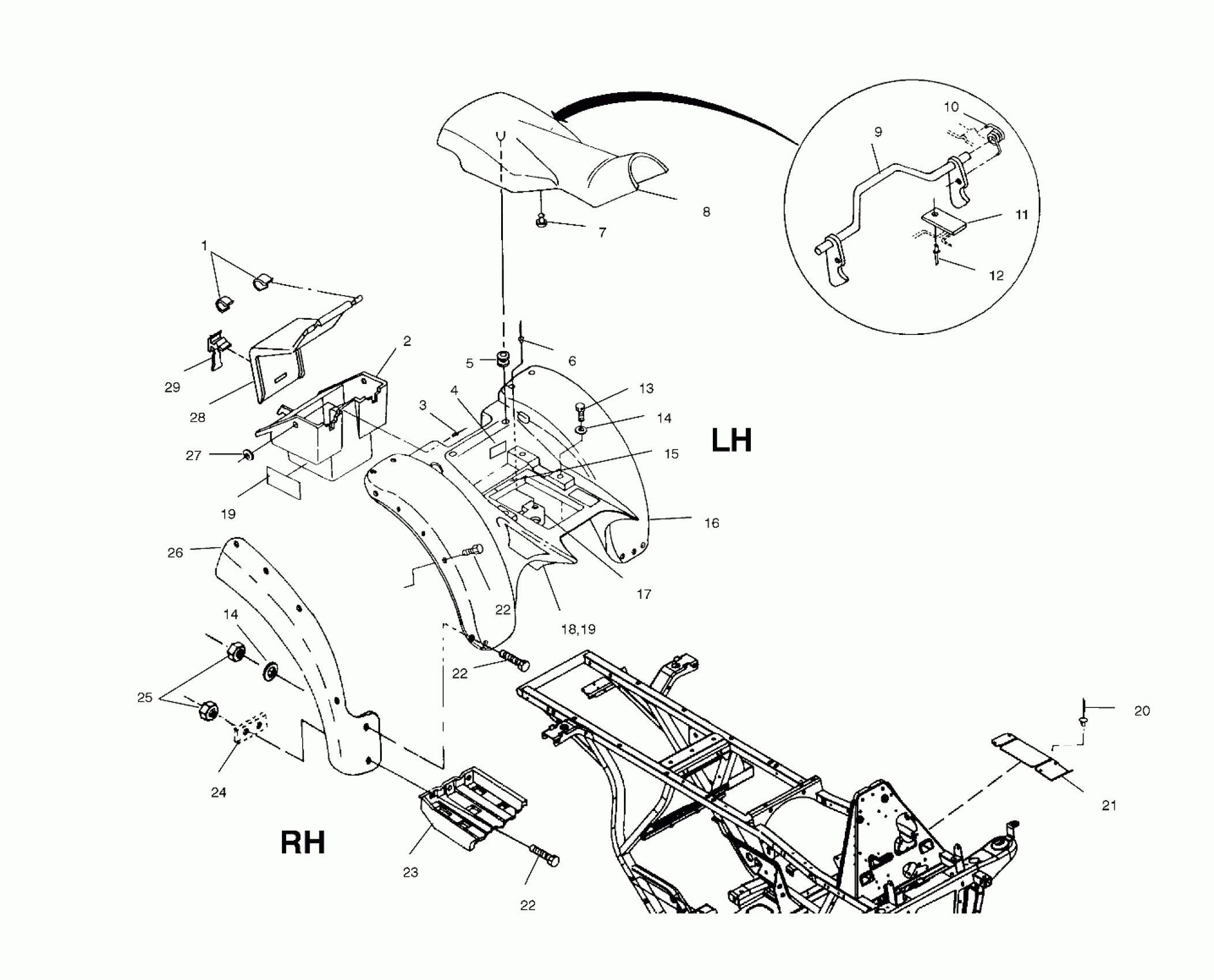

Polaris XPLORER - A00AG25CA REAR CAB - A00AG25CA (4954865486A006) Diagram

#

Description
Price

1

CLIP, LID HINGE(10)

7670050

Unavailable

2

BOX,TOOL COMP.

5430882

Unavailable

3

RIVET(50)

7621462

$1.49

4

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

5

Grommet

5411042

Unavailable

6

RIVET,3/16X.402(50)

7621432

$1.49

7

Bumper, Rubber

5410414

$3.19

8

SEAT,SABLE BROWN,ASM. (Incl. 7-11)

2682492-276

Unavailable

8

COVERING-SEAT,SABLE BROWN

2681723-276

Unavailable

9

LATCH,SEAT

1011558

Unavailable

10

SPRING, LATCH

7041158

Unavailable

11

BRACKET,LEVER RETAINER

5211033

$29.25

12

BLIND RIVET(50)

7621403

$1.49

13

SCREW(10)

7512242

$2.39

14

WASHER, FLAT(10)

7555859

$1.49

14

WASHER, FLAT(10)

7555859

$1.49

15

DECAL,CARB.INFO.

7073761

Unavailable

16

CAB,REAR,MOD,GEN II,E.B. GREEN

5433424-195

Unavailable

17

BRKT,R.HOLDDOWN

5220880

Unavailable

18

Foil, Rear Cab

5810957

Unavailable

18

Foil, Rear Cab, Small

5810991

Unavailable

19

TAPE, FOIL

5810310

Unavailable

19

TAPE, FOIL

5810310

Unavailable

20

RIVET,INTERLOCK,B(50)

7661638

$1.49

21

GUARD-CLUTCH, BLK

5241403-067

Unavailable

22

BOLT, BLACK(10)

7512282

$1.49

22

BOLT, BLACK(10)

7512282

$1.49

22

BOLT, BLACK(10)

7512282

$1.49

23

Foot Pad (See Bumper and Rack Mounting Pg. A7, Ref. 31)

-------

Unavailable

24

BRKT, LH MUD FLAP

5211131-067

Unavailable

25

NUT-LOCK(10)

7542122

$1.49

26

MUDFLAP-FULL,REAR,LH

5811944

Unavailable

26

MUDFLAP-FULL,REAR,RH

5811945

Unavailable

27

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

28

COVER-TOOL BOX,E.B. GREEN

5430769-195

$91.19

29

STRAP,TOOL COMPARTMENT

5410425

Unavailable
