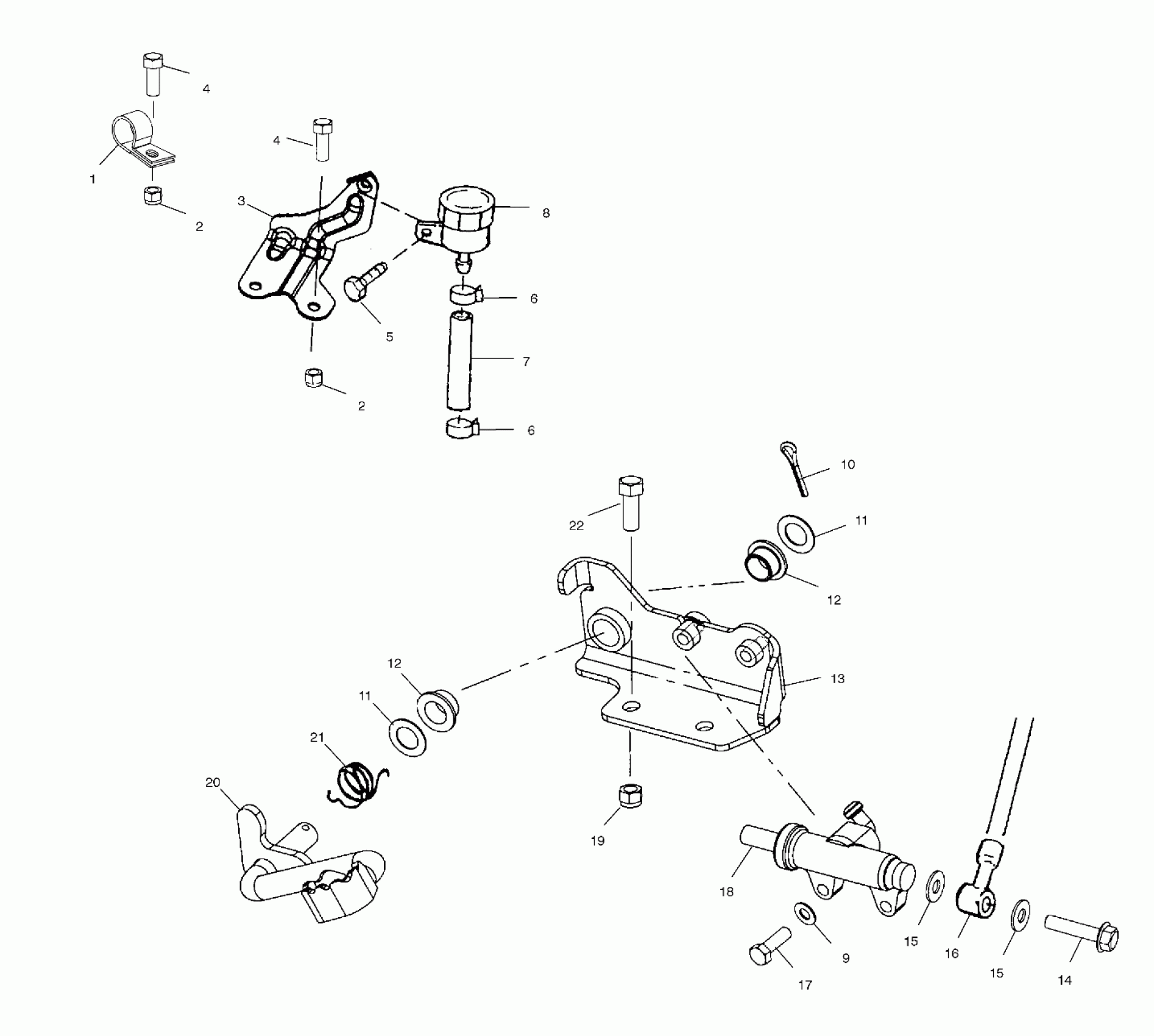

Polaris XPLORER - A00AG25CA REAR BRAKE MASTER CYLINDER - A00AG25CA (4954865486C006) Diagram

#

Description
Price

1

CLAMP-HOSE,.625 DIA VNL COATED

7080880

$5.59

2

NUT-LOCK(10)

7542122

$1.49

2

NUT-LOCK(10)

7542122

$1.49

3

BRKT,RESERVOIR MNT,BLK

5244091-067

$5.75

4

SCREW(10)

7512113

$3.99

4

SCREW(10)

7512113

$3.99

5

SCREW(10)

7512208

$3.99

6

HOSE CLAMP, RED

7080003

$1.49

6

HOSE CLAMP, RED

7080003

$1.49

7

HOSE,RES.,1/4 ID,5.78 LG

1910438

$7.27

8

RESERVOIR ASM,R.BRAKE

1930854

$35.99

9

LOCK WASHER(10)

7552801

$1.59

10

COTTER PIN(10)

7661401

$1.49

11

WASHER(10)

7555919

$4.99

11

WASHER(10)

7555919

$4.99

12

BUSHING-PEDAL PIVOT

5431107

$8.79

12

BUSHING-PEDAL PIVOT

5431107

$8.79

13

MOUNT,BRAKE,CDS,BLK

1910375-067

Unavailable

14

BOLT,BANJO,BRAKE

1930674

Unavailable

15

Seal

5410988

$4.84

15

Seal

5410988

$4.84

16

Line, Foot Brake, Rear (See Footnote) (See Rear Caliper Mounting Pg. B1, Ref. 6)

-------

Unavailable

17

SCREW(10)

7515179

$2.39

18

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

BRAKE ROD,CDS,GEN 3,BLK

1910377-067

Unavailable

21

SPRING-TORSION,BRAKE

7041750

$8.79

22

BOLT(10)

7512383

$1.99
