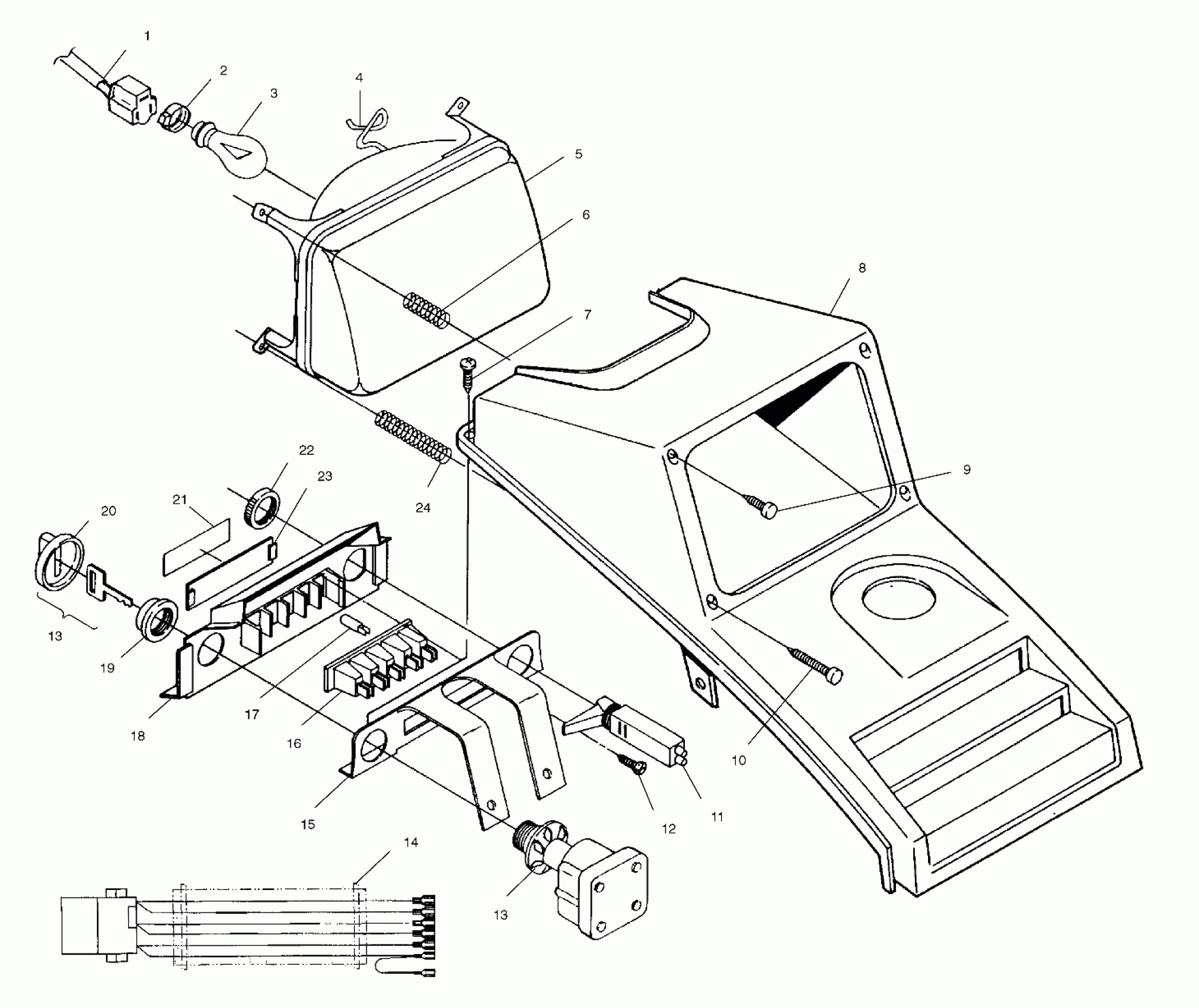

Polaris XPLORER - A00AG25CA HEADLIGHT - A00AG25CA (4954865486A014) Diagram

#

Description
Price

1

HARNESS,MAIN CONN,XPL 250

2460780

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

Unavailable

4

RETAINER,H/L BULB

4032063

Unavailable

5

H/L ASM,W/BULBSEAL (Incl. 2-4)

4032065

Unavailable

6

SPRING-ADJ

4032002

Unavailable

7

SCREW(10)

7512017

$4.76

8

COVER-OIL TANK/HEADLAMP,GREEN

5430973-195

Unavailable

9

SCREW, ADJ.(10)

4032003

$5.99

10

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

11

KIT-CHOKE CONTROL

2200188

$28.32

11

CABLE, CHOKE

7080371

$97.13

12

SCREW, SEM(10)

7511862

Unavailable

13

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (Series 2000, 6700, 6800)

4010278

$14.56

13

Blank, Key, Series 2200, 2300, 2700, 2800. (Series 2200, 2300, 2700, 2800) NOTE: Spare key must be cut from existing key.

4010321

$14.29

13

SWITCH,IGNITION (Incl. 20)

4110264

$109.27

13

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (Series 2000, 6700, 6800)

4010278

$14.56

13

Blank, Key, Series 2200, 2300, 2700, 2800. (Series 2200, 2300, 2700, 2800) NOTE: Spare key must be cut from existing key.

4010321

$14.29

13

SWITCH,IGNITION (Incl. 20)

4110264

$109.27

14

HARNESS,INDICATOR,XPLORER

2460781

Unavailable

15

BRKT, IGN. PANEL

5220965-067

Unavailable

16

STRIP, SOCKET

4032037

$26.98

17

BULB

4030042

$8.08

18

PANEL, IGNITION

5430995

Unavailable

19

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

20

KEY SWITCH KEY COVER

5433534

$13.75

21

DECAL, PANEL [No Longer Available]

7072528

Unavailable

22

Nut

7080229

$19.84

23

LENS ASM,PILOT LIGHT (Incl. 21)

2652049

Unavailable

24

SPRING,ADJ.

4032041

Unavailable
