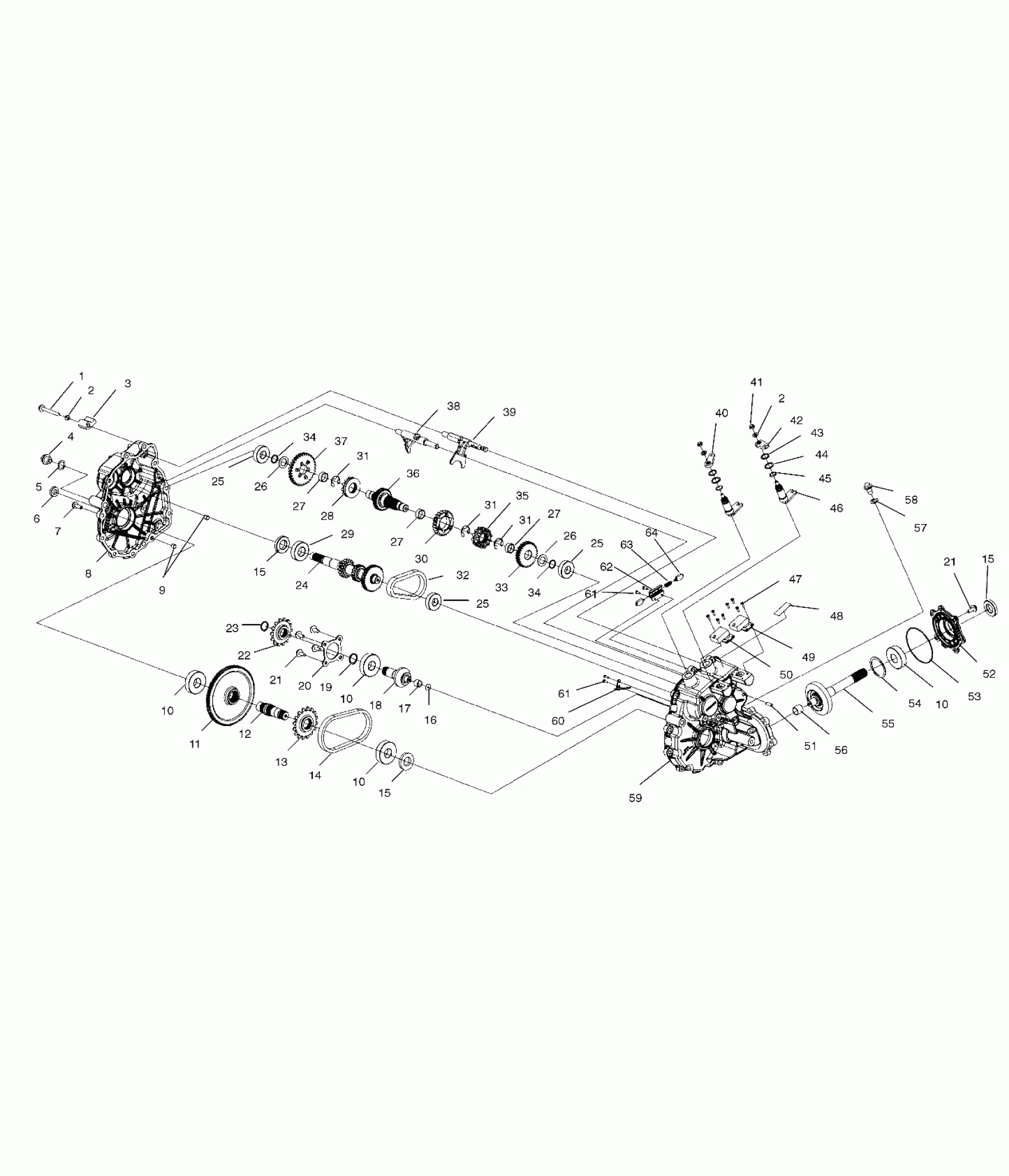

Polaris XPLORER - A00AG25CA GEARCASE - A00AG25CA (4954865486C002) Diagram

#

Description
Price

-

GEARCASE,HLR,CDS,4X4,3.34 (Incl. 1-64)

1341314

Unavailable

1

SCREW,CAP

3233734

$3.02

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

3

DAMPENER,CARB,VIBRATION

3233735

Unavailable

4

Plug

3233448

$23.81

5

Washer

3233035

Unavailable

6

BUSHING,PIVOT

3233527

$39.99

7

Screw

3233252

$5.69

8

GEARCASE-LH

3233632

$354.99

9

PIPE,KNOCK

3233529

$10.99

10

BEARING

3233020

$47.62

10

BEARING

3233020

$47.62

10

BEARING

3233020

$47.62

10

BEARING

3233020

$47.62

11

GEAR,O/P,100T,HCR

3233360

Unavailable

12

SHAFT,OUTPUT

3233544

$174.99

13

SPROCKET,15/26T

3233729

$97.13

14

CHAIN,ROLLER

3233546

$68.79

15

Seal

3233248

$32.37

15

Seal

3233248

$32.37

15

Seal

3233248

$32.37

16

WASHER,THRUST

3233542

$11.32

17

BUSHING,GARLOCK

3233541

$23.81

18

SHAFT,PINION,13T

3233540

$158.73

19

RING,RETAINING

3233306

$4.76

20

COVER,CTR.DRIVE BRG.

3233263

Unavailable

21

Screw

3233539

Unavailable

21

Screw

3233539

Unavailable

22

SPROCKET,15/22T

3233730

Unavailable

23

RING,RETAINING

3233537

$6.99

24

SHAFT-INPUT HIGH/LOW/REVERSE

3233704

Unavailable

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

26

Washer

3233176

$9.52

26

Washer

3233176

$9.52

27

BEARING,NDL,SPLIT CAGE

3233718

$35.71

27

BEARING,NDL,SPLIT CAGE

3233718

$35.71

27

BEARING,NDL,SPLIT CAGE

3233718

$35.71

28

DOG,ENGAGEMENT,LOW

3233732

$178.08

29

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

30

SPROCKET,24T

3233719

$109.27

31

RING,RET-RING,EXTERNAL

3233720

$9.52

31

RING,RET-RING,EXTERNAL

3233720

$9.52

31

RING,RET-RING,EXTERNAL

3233720

$9.52

32

CHAIN,SILENT,34P

3233036

Unavailable

33

GEAR,30T

3233722

Unavailable

34

RING,RETAINING

3233177

$6.46

34

RING,RETAINING

3233177

$6.46

35

DOG,ENGAGEMENT,HIGH/REV

3233721

Unavailable

36

SHAFT,REVERSE,29T

3233733

Unavailable

37

GEAR,33T

3233731

Unavailable

38

SHIFT FORK-LOW

3233706

$119.05

39

FORK,SHIFT,HIGH/REV

3233633

$141.65

40

Bellcrank

3233547

$56.99

41

Nut

3233055

$3.32

42

Bellcrank

3233153

$32.37

43

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

44

Washer

3233040

$9.52

45

O-Ring

3233548

$33.24

46

SHAFT,SHIFT

3233549

Unavailable

47

SCREW Substituted by 3233749

3233691

$5.65

48

DECAL-SWITCH

3233636

Unavailable

49

SWITCH-H/R,ITW

3233635

$174.99

50

SWITCH,ITW 2 POSITION

3233617

Unavailable

51

Vent

3233037

Unavailable

52

COVER,SNORKEL

3233556

$31.11

53

O-Ring

3233555

$6.06

54

SHIM

3233554

$39.99

55

SNORKEL,SUBASM,SHAFT

3233723

Unavailable

56

BUSHING-GARLOCK

3233552

$23.81

57

Washer

3233324

$8.54

58

PLUG,OIL FILL

3233711

Unavailable

59

GEARCASE Substituted by 3233751

3233705

Unavailable

60

DEFLECTOR,OIL

3233043

$13.10

61

SCREW Substituted by 3233747

3233033

Unavailable

62

BRACKET,INTERLOCK

3233309

$20.48

63

Spring

3233032

$13.75

64

PIN,INTERLOCK

3233308

Unavailable
