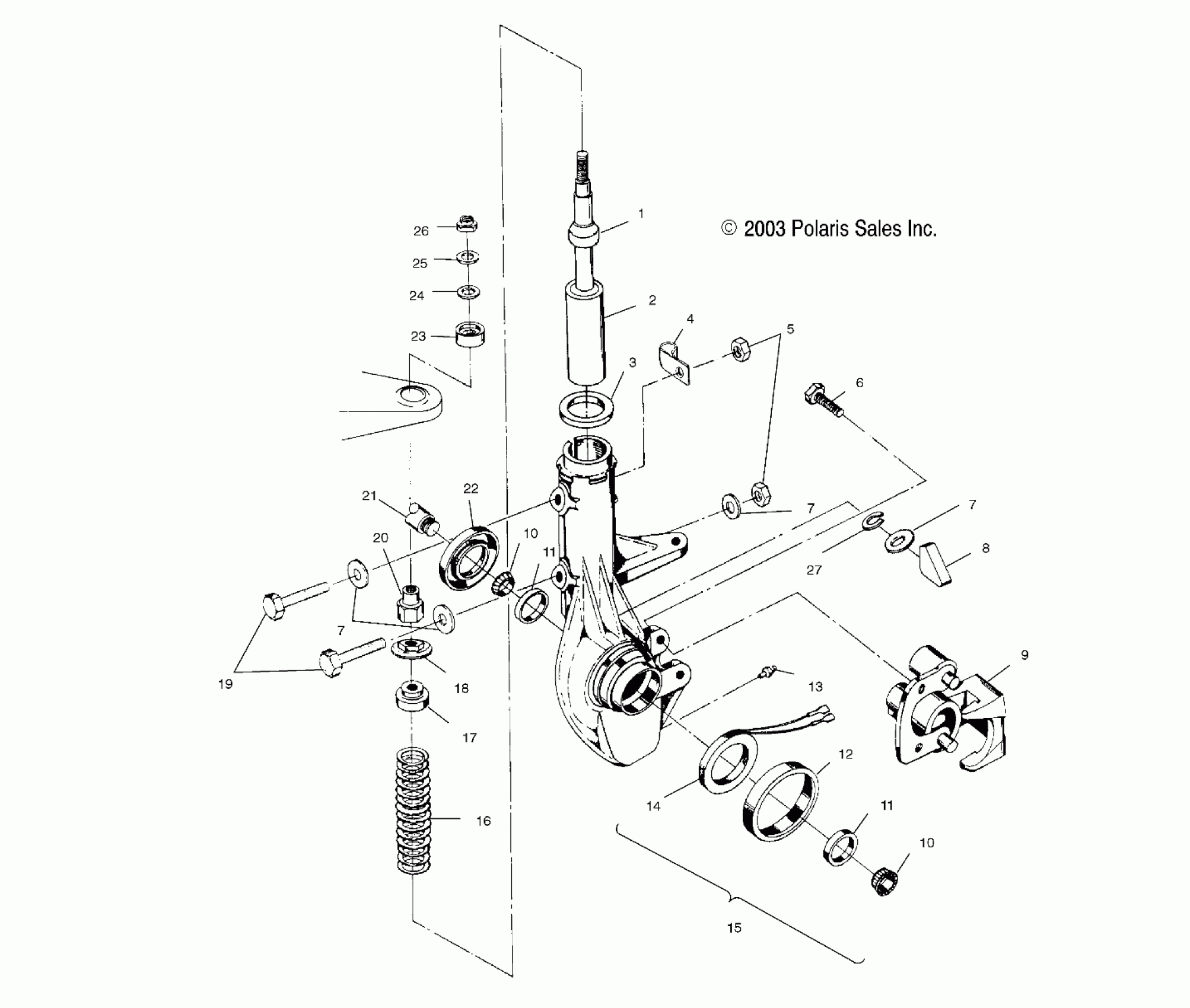

Polaris XPLORER - A00AG25CA FRONT STRUT - A00AG25CA (4954865486B001) Diagram

#

Description
Price

1

BUMPER-MCU,17.80MM ID

5411608

$6.35

2

STRUT-FRONT,18X30MM,153.8MM ST

7041761

$168.87

3

WASHER-2.06X2.62X.105-Y

5211115

$3.97

4

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.14

5

NUT FLEX-LOC(10)

7542303

$6.35

6

SCREW, CAP(10)

7512365

$1.19

7

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

7

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

7

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

8

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

9

Asm., Front Brake Caliper, RH (See Front Brake Pg. B5 for Details)

----

Unavailable

10

BEARING,TAPERED ROLLER

3554509

$23.81

10

BEARING,TAPERED ROLLER

3554509

$23.81

11

BRG,TAPER,ROLL CUP

3554507

$31.75

11

BRG,TAPER,ROLL CUP

3554507

$31.75

12

SLEEVE,STRUT HUB SEAL

5222193

$64.75

13

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

14

COIL-MAG,GRY,BRN/WHT,42",W/CON Substituted by 2201313

2410133

$129.51

15

HUBSTRUT,SVC,BRN/WHT,42,RH (Incl. 8,11-14,22)

2201312

Unavailable

15

HUBSTRUT,SVC,BRN/WHT,42,LH (Incl. 8,11-14,22)

2201311

Unavailable

16

SPRING-COMP,55-105#/IN,BLK

7041873-067

$45.39

17

RETAINER-SPRING,STRUT

5243364

$20.22

18

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

$10.51

19

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.76

20

SPACER-1/2-20,STRUT

5132062

$19.84

21

Kit - Drive Shaft w/Sleeve (See CV Joint Pg. B3, Ref. 12)

----

Unavailable

22

SEAL, HUB STRUT

3610028

$32.37

23

PIVOT BALL, TOP Substituted by 5432872

5430806

$10.51

24

SPACER-RUBBER

5810291

$3.97

25

WASHER(10)

7555749

$1.19

26

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.19

27

LOCK WASHER(10)

7552901

$1.19
