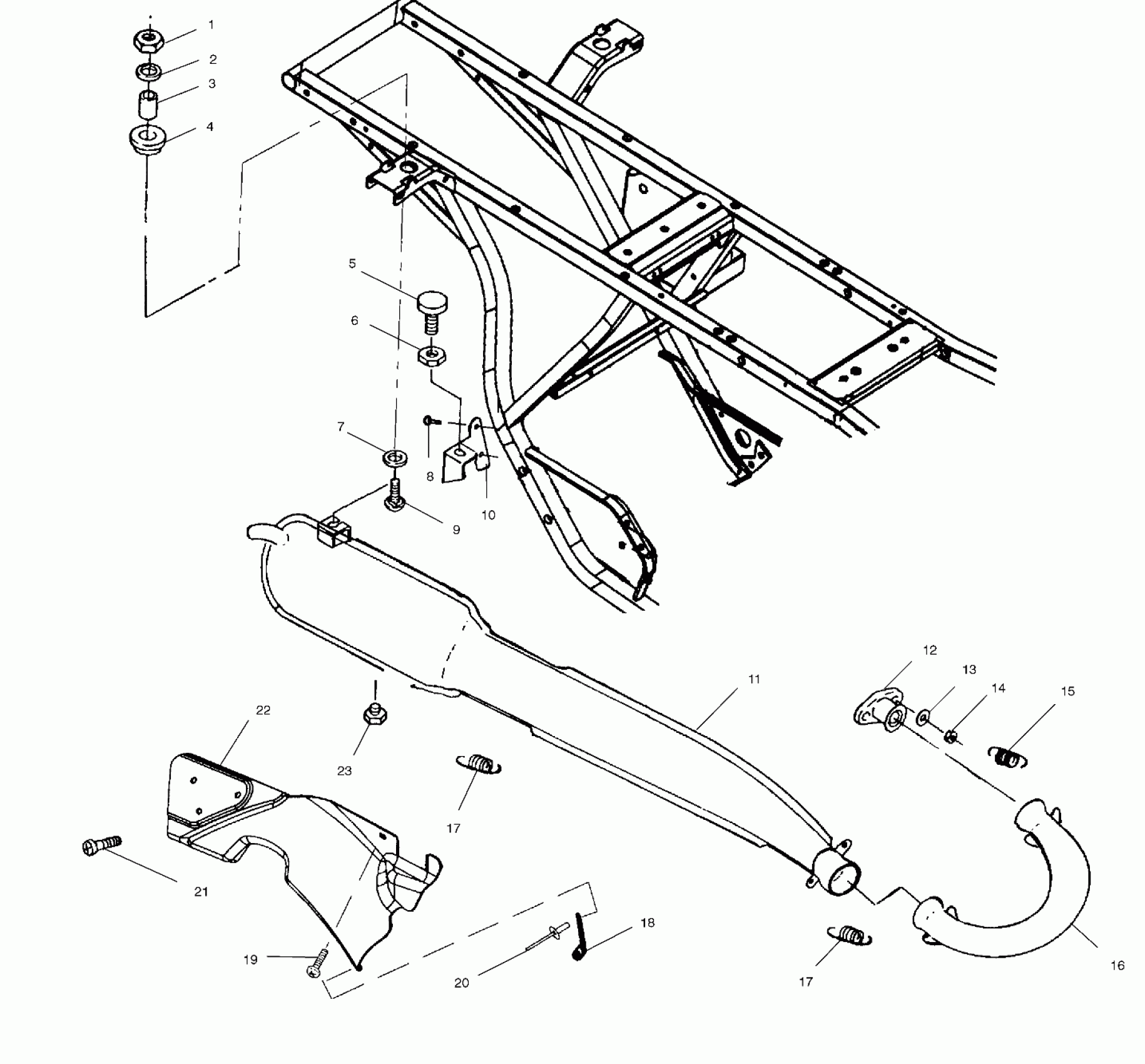

Polaris XPLORER - A00AG25CA EXHAUST SYSTEM - A00AG25CA (4954865486A010) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

MOUNT,TORQUE-STOP

3110064

Unavailable

6

NUT HEX(10)

7542301

$1.59

7

WASHER,RUBBER

5410436

$1.59

8

BOLT(10)

7512232

$1.49

9

BOLT(10)

7515316

$2.39

10

NUTSERT-5/16-18(.027-.150),HXY

7547101

$9.59

10

BRKT-EXHAUST MOUNT,XPL 400,BLK

5243199-067

Unavailable

11

MUFFLER/SPARK ARRESTER,BK

1261022-029

Unavailable

12

MANIFOLD,STR.250,BLK.

1260922-029

$39.99

13

Washer, Lock (See Crankcase and Cylinder Pg. C10, Ref. 37)

-------

Unavailable

14

Nut (See Crankcase and Cylinder Pg. C10, Ref. 38)

-------

Unavailable

15

SPRING-EXHAUST(10)

7042029

$4.84

16

HEADPIPE,BLK

1261060-029

$102.38

17

SPRING, EXHAUST(10)

7042031

$5.65

17

SPRING, EXHAUST(10)

7042031

$5.65

18

BRKT,EXHAUST SHIELD,XPL250,BLK

5244130-067

$7.43

19

Screw

7517264

$3.99

20

RIVET(50)

7621462

$1.49

21

SCREW(10)

7515140

$3.19

22

SHIELD,EXHAUST,XPLORER Substituted by 1261086

1260995

Unavailable

22

FOAM,FOIL,HEAT SHIELD

5811849

Unavailable

23

BOLT(10)

7512666

$2.39
